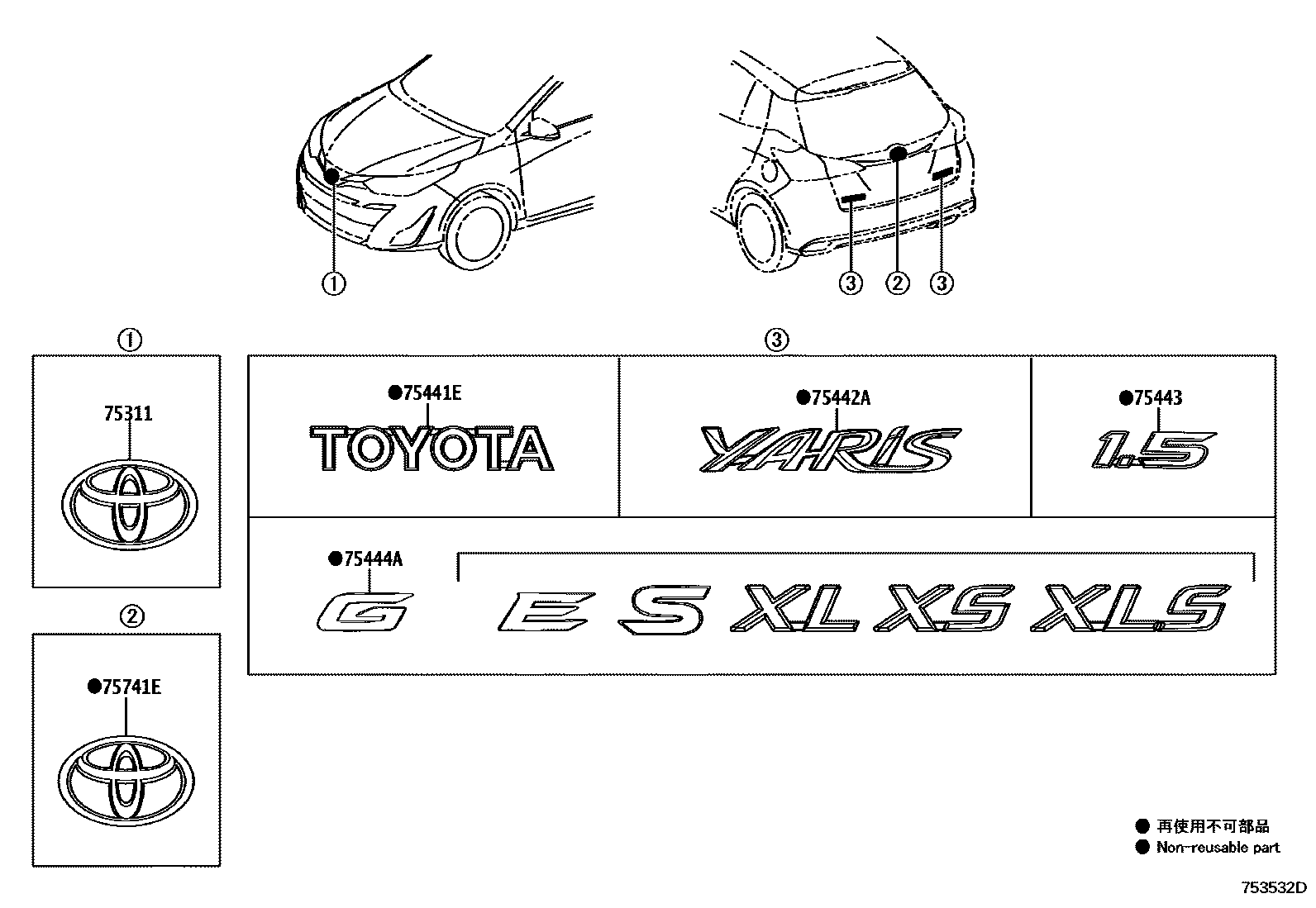

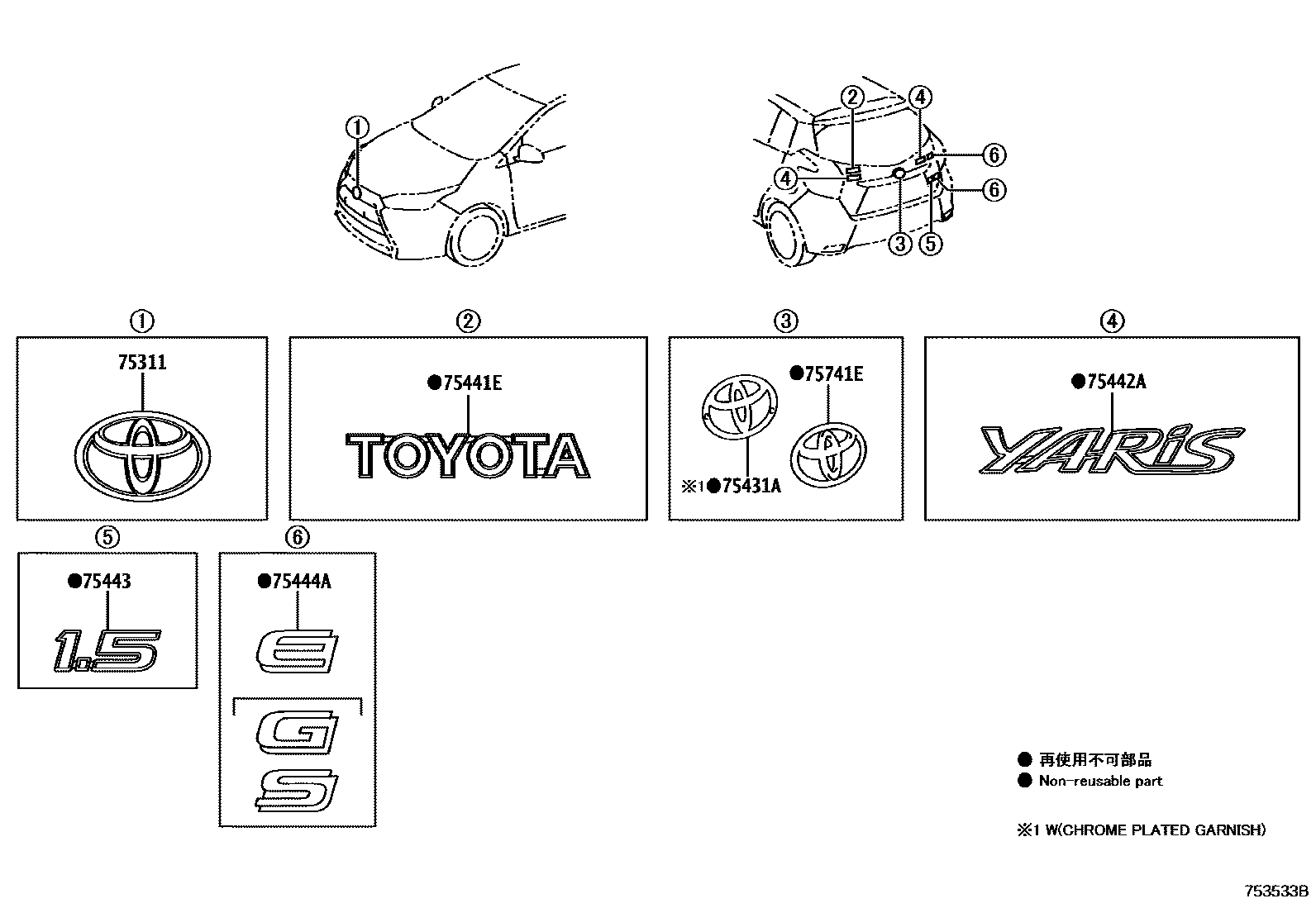

Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-02190 · 90975-02160 · 90975-T2005 · 90975-T2008 · 90975-T2009 · 90975-T2031 |
| 75431A | No. 1 sign on back door | 75431-0D170 · 75431-0D180 · 75431-0D200 |
| 75441E | Back door No. 1 nameplate | 75447-0D140 · 75447-0D240 · 75447-0D250 |
| 75442A | No. 2 nameplate on back door | 75442-0D210 · 75442-0D270 · 75442-0D470 · 75442-0D480 · 75442-0D500 · 75442-0D520 |
| 75443 | No. 3 nameplate on back door | 75471-0D240 · 75471-0D270 |
| 75444A | No. 4 nameplate on back door | 75444-0D340 · 75444-0D350 · 75444-0D360 · 75444-0D460 · 75444-0D470 · 75444-0D480 · 75444-0D690 · 75444-0D700 · 75444-0D710 · 75444-0D720 · 75444-0D730 · 75444-0D740 · 75444-0D830 · 75444-0D840 · 75444-0D850 · 75444-0DA50 |
| 75741E | logo | 75431-02090 · 75431-02100 · 90975-02063 · 90975-T2007 · 90975-T2015 |
