Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 4 PNC and OE references.

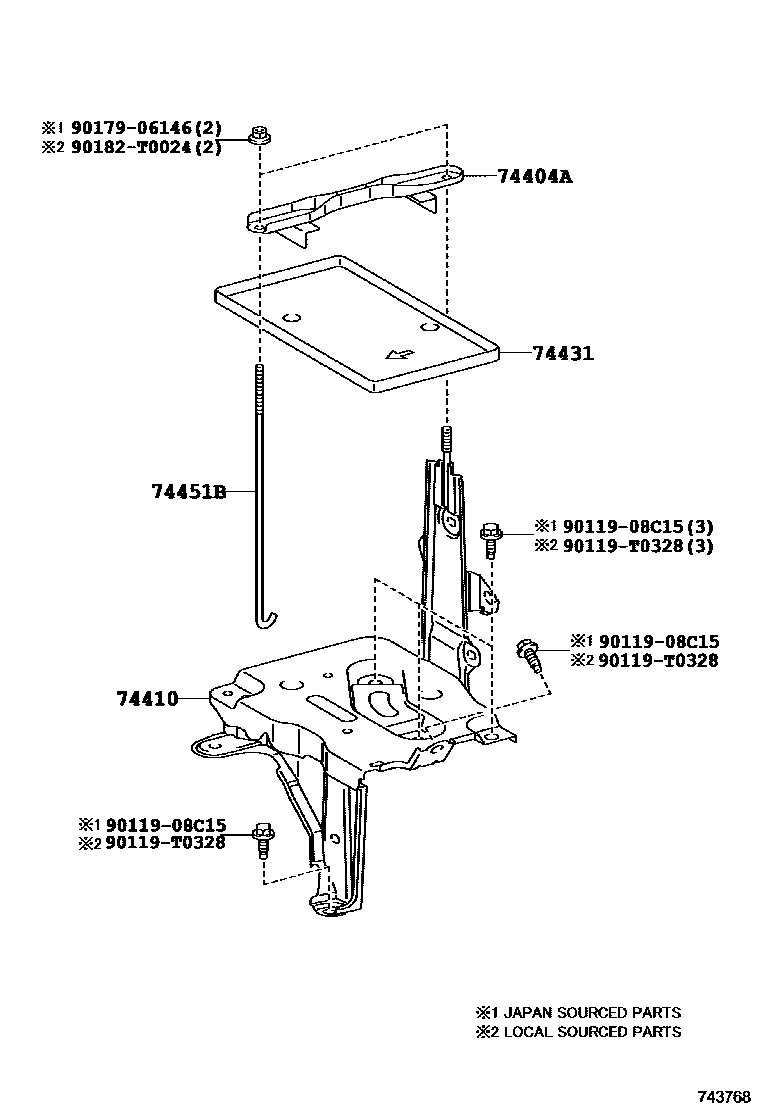

Toyota YARIS battery holder EPC diagram — 743768
battery holder — 743768 (201310 – 999999)

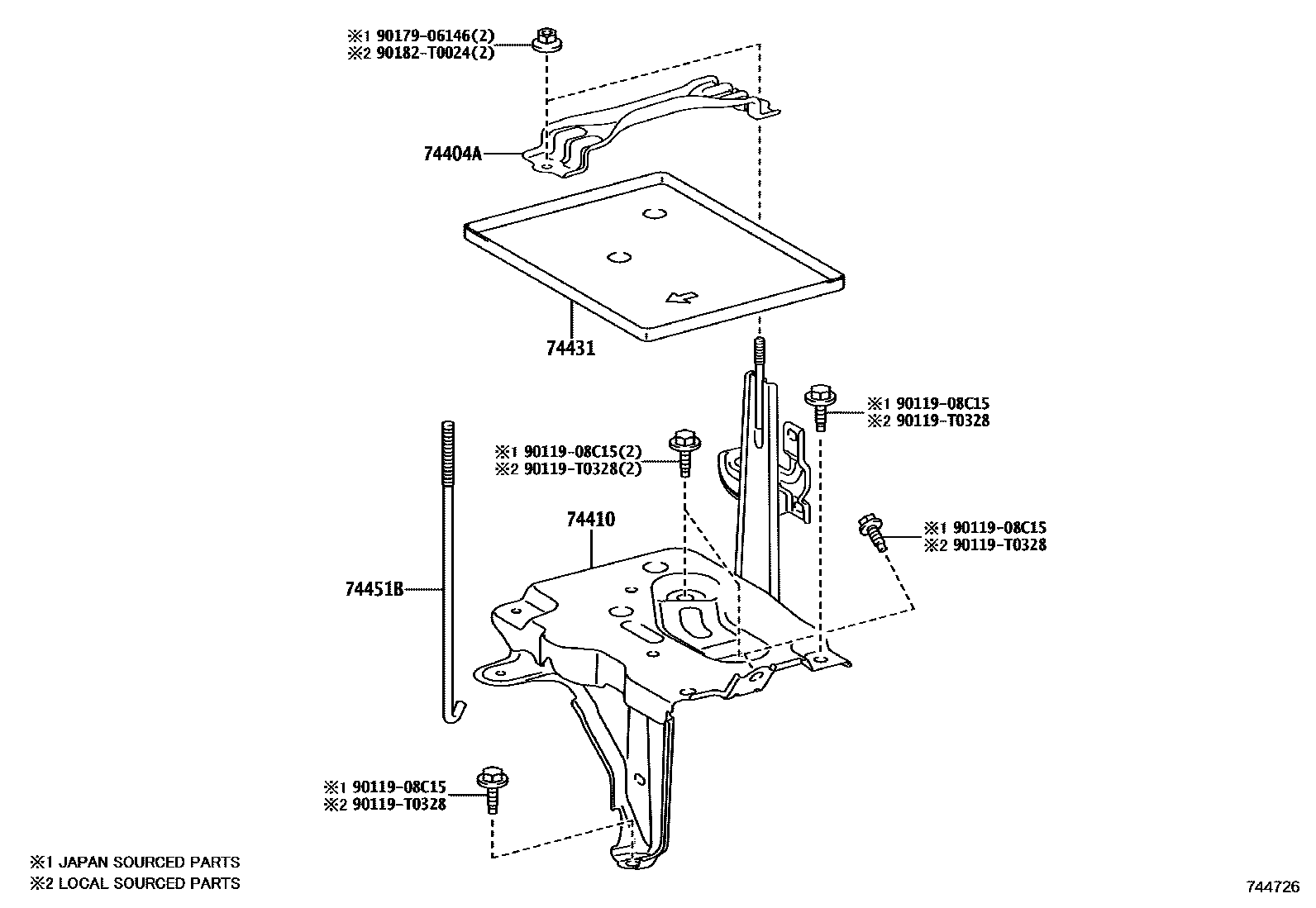

Toyota YARIS battery holder EPC diagram — 744726
battery holder — 744726 (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0D170 · 74404-0D201 · 74404-0D220 · 74404-0D230 · 74404-0D290 · 74404-0D310 · 74481-0D090
74410Battery bracket assembly74410-0D140 · 74410-0D150 · 74410-0D180 · 74410-0D190 · 74410-0D290
74431battery tray74431-0D130 · 74431-0D210 · 74431-0D250 · 74431-0D260 · 74431-0D261 · 74431-0D290
74451BBattery clamp bolt74451-0D040 · 74451-0D070 · 74451-0D100 · 74451-0D150
