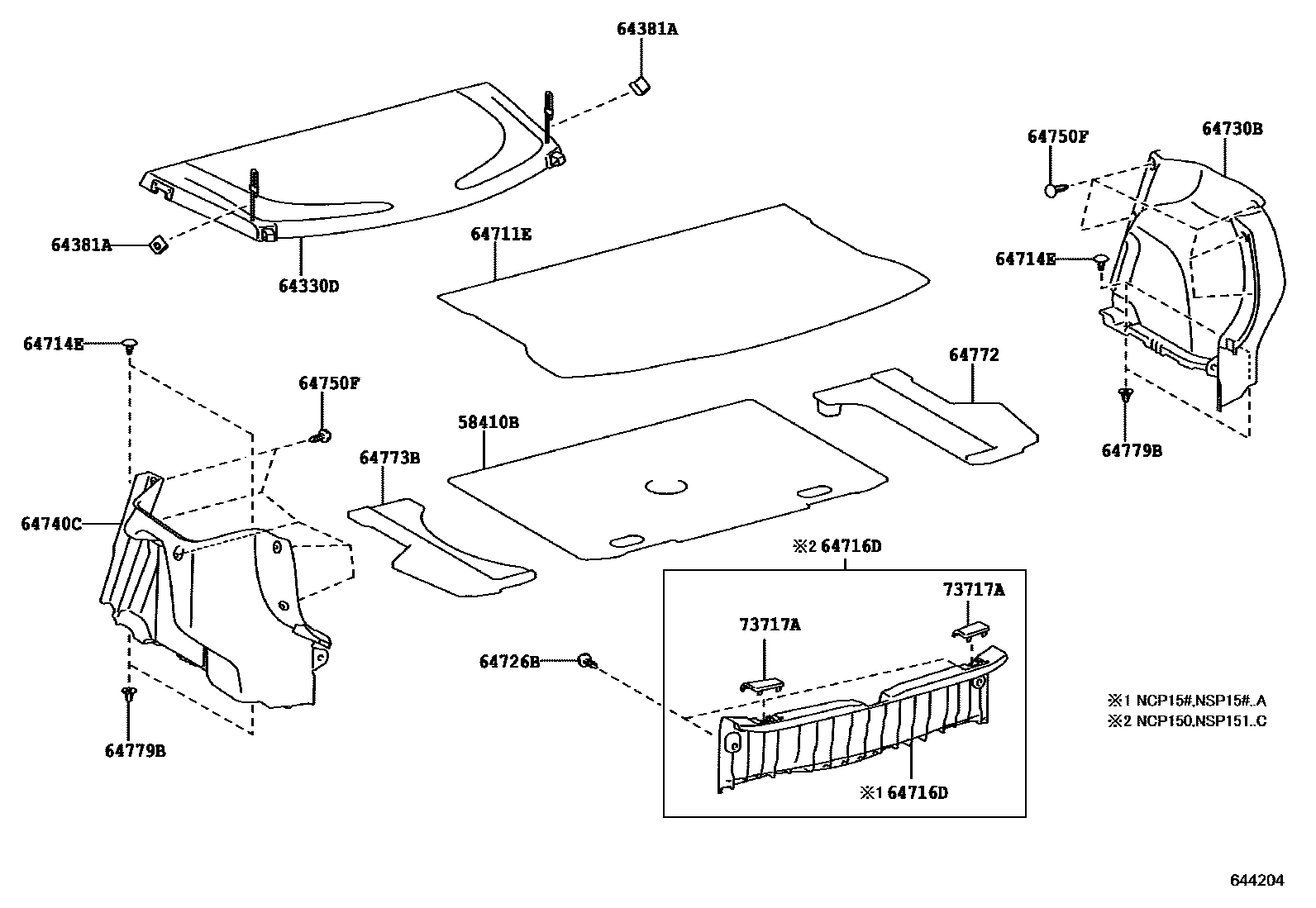

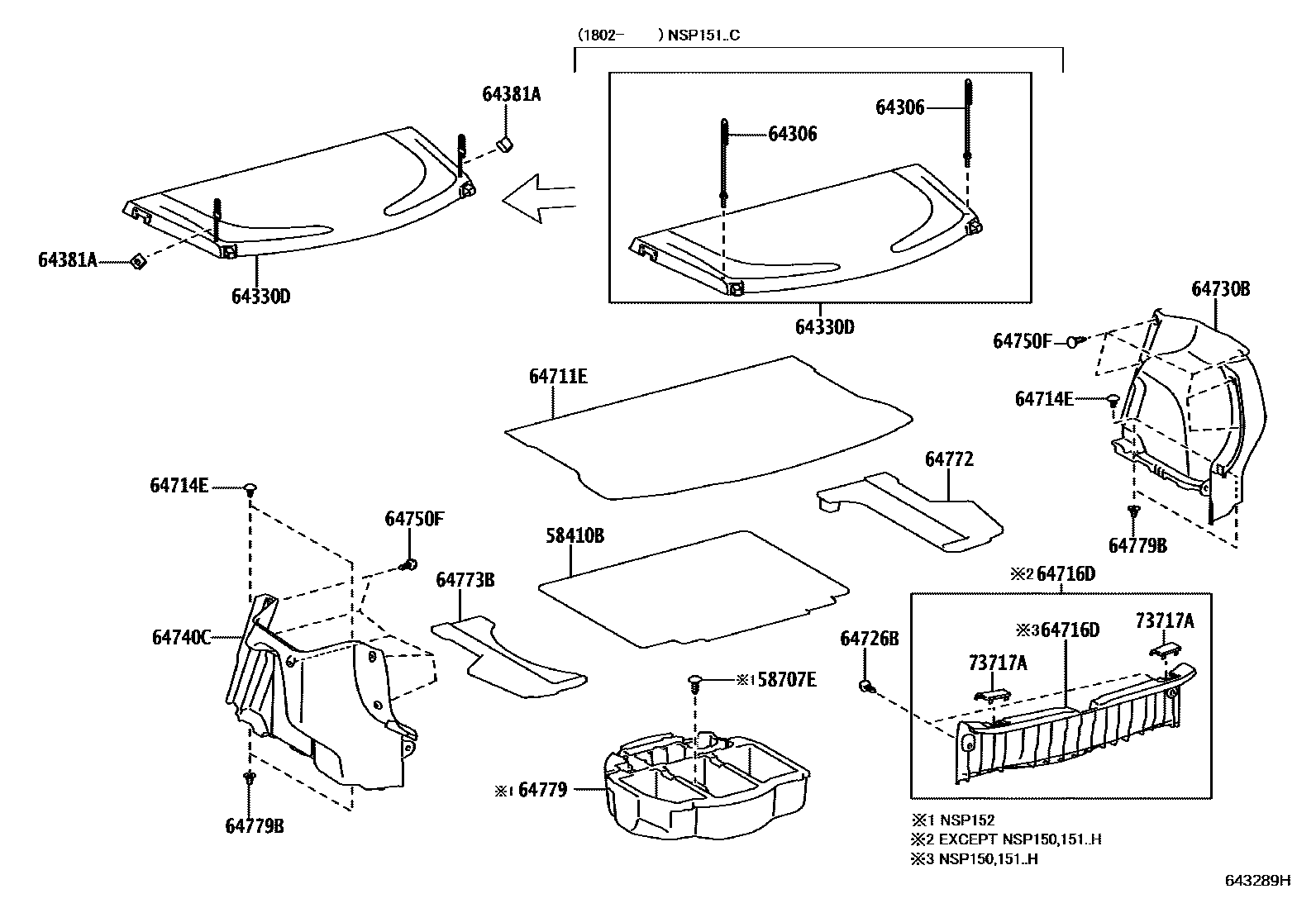

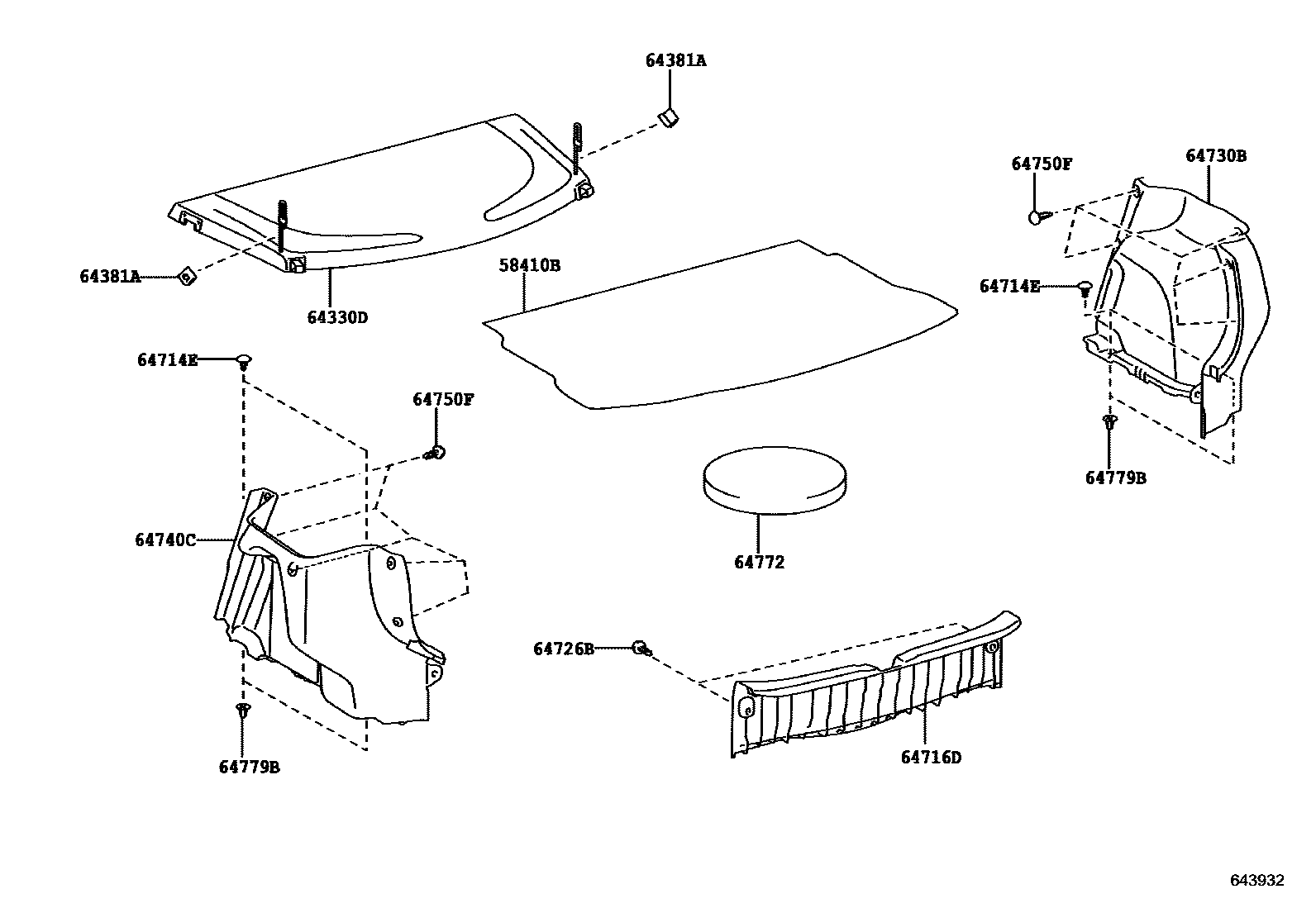

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58410B | Base plate assembly | 58410-0D060 · 58410-0D090 · 58410-0D130 · 58410-0D140 · 58410-0D160 · 58410-0D170 · 58410-0D180 |
| 58707E | JEU BOUCHON TROU | 58707-50060 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-0D170 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64714E | Clip (for bottom panel side decorative cover) | 64726-0D020 · 64726-0D060 · 64726-0D080 |
| 64716D | Rear floor decorative cover | 64716-0D120 · 64716-0D130 · 64716-0D150 · 64716-0D240 · 64716-0D241 · 64716-0D250 · 64716-0D260 · 64716-0D270 |
| 64772 | Spare tire cover liner | 64772-0D070 · 64772-0D080 · 64772-0D090 · 64772-0D160 · 64772-0D190 · 64772-0D200 |
| 64773B | No. 2 spare tire cover liner | 64773-0D030 · 64773-0D040 · 64773-0D100 · 64773-0D130 · 64773-0D140 |
| 64779 | Spare tire cover bracket | 64779-0D110 |
| 64779B | Spare tire cover stop | 64779-0D010 · 64779-0D050 · 64779-0D090 · 64779-BZ030 |
| 73717A | Child restraint seat tether anchor cover | 73717-0D010 · 73717-0D020 · 73717-0D030 · 73717-0D040 · 73717-0D050 · 73717-0D060 · 73717-0D070 · 73717-0D071 · 73717-0D080 · 73717-0D081 · 73717-0D110 · 73717-0D120 · 73717-0D130 · 73717-0D140 |
