Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

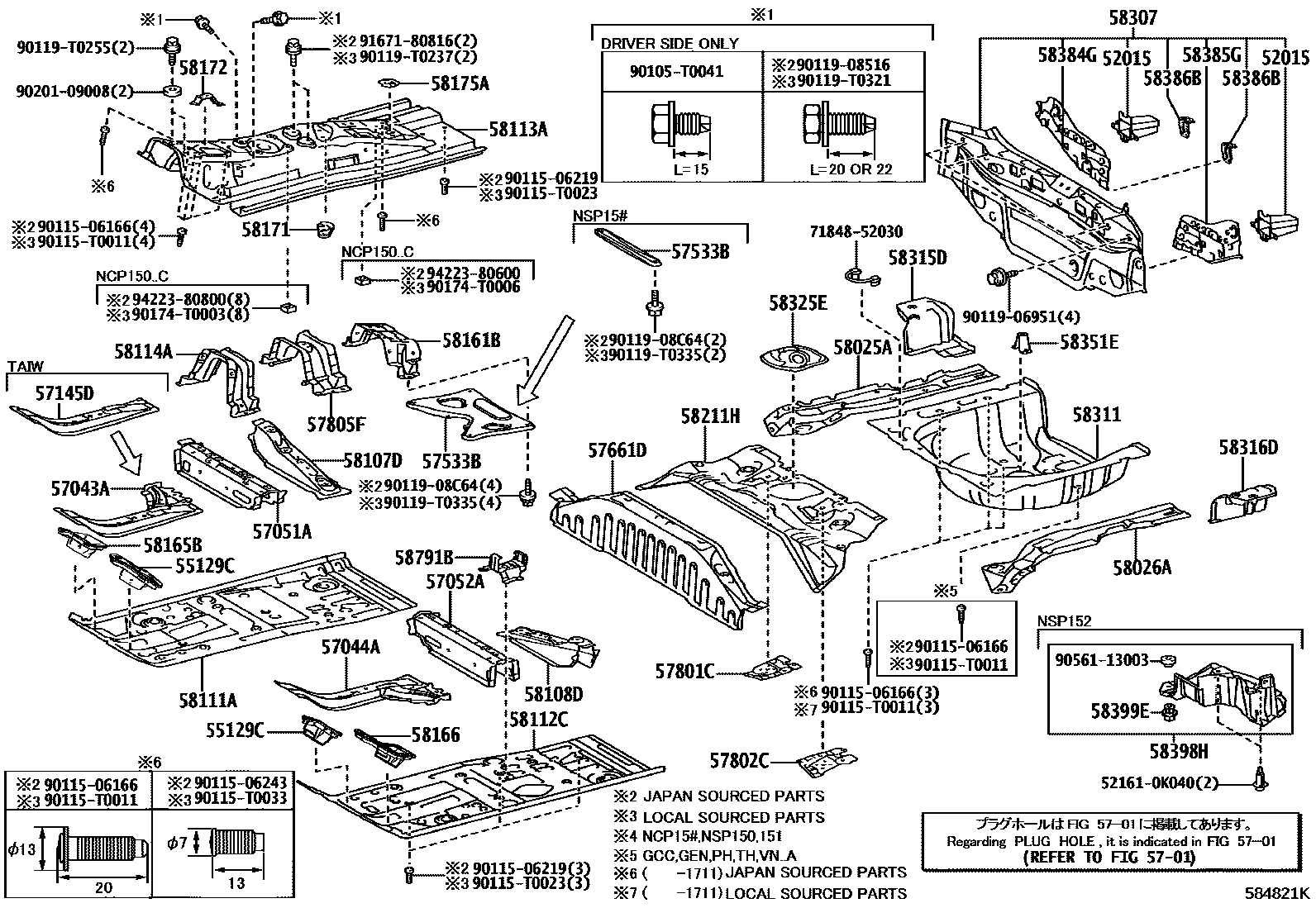

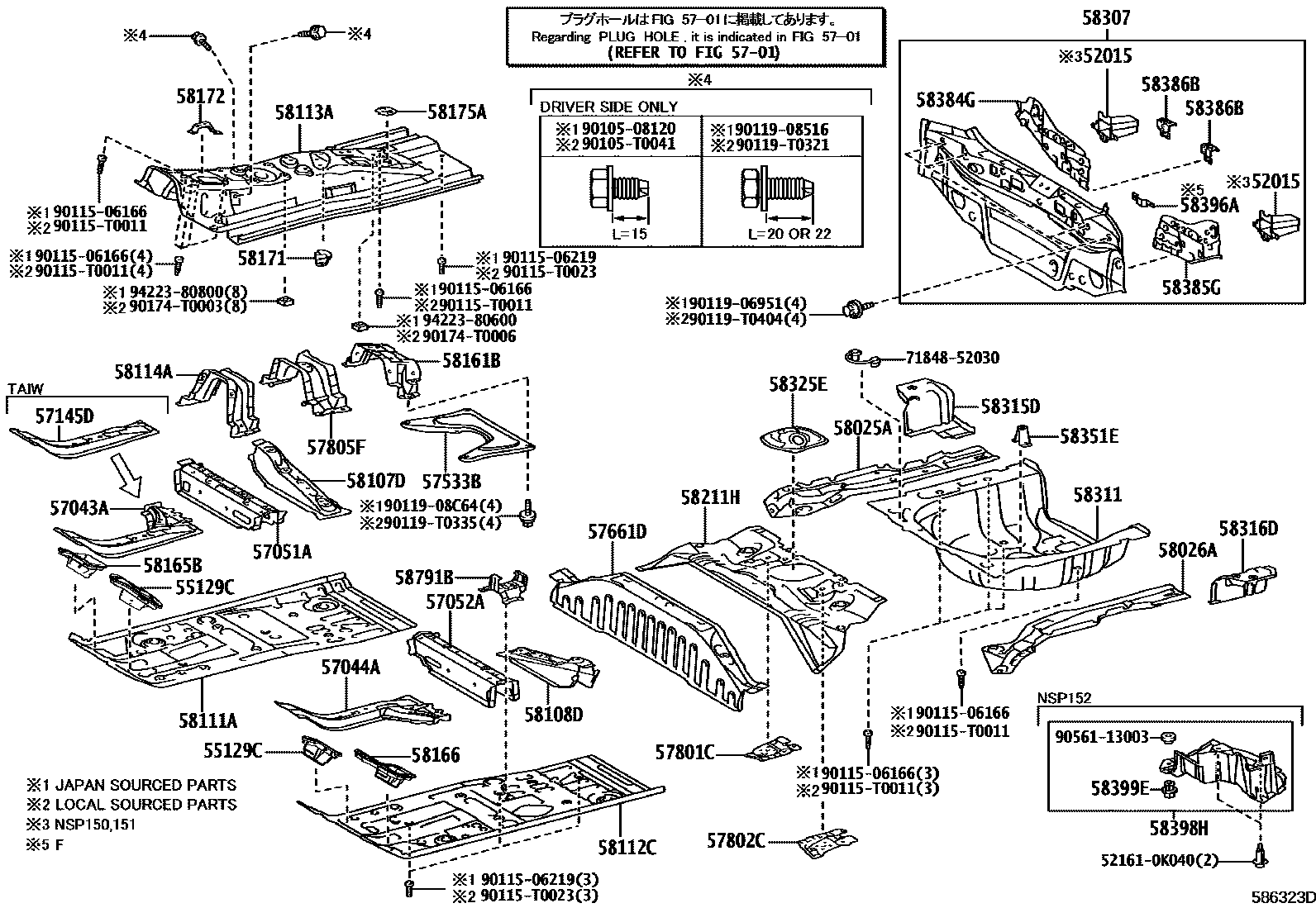

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015 | Rear bumper arm sub-assembly | 52015-0D140 · 52015-0D170 · 52015-0D190 · 52015-0D240 |
| 55129C | Front panel hole cover | 55129-0D110 · 55129-0D130 · 55129-0D150 · 55139-0D030 · 55139-0D050 · 55139-0D070 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-0D020 · 57043-0D060 · 57043-0D100 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-0D050 · 57044-0D100 · 57044-0D130 |
| 57051A | Front floor right cross member sub-assembly | 57051-0D020 · 57051-0D040 · 57051-0D110 · 57051-0D120 · 57051-0D130 · 57051-0D140 · 57051-0D170 |
| 57052A | Front floor left cross member sub-assembly | 57052-0D020 · 57052-0D040 · 57052-0D110 · 57052-0D120 · 57052-0D130 · 57052-0D160 · 57052-0D161 · 57052-0D162 · 57052-0D170 |
| 57145D | Front longitudinal beam to floor panel reinforcement | 57145-0D051 |
| 57533B | Front floor center bracket | 57533-0D010 · 57533-0D030 · 57533-0D040 · 57533-0D110 · 57533-0D120 · 57533-0D150 · 57533-0D160 · 57533-0D170 · 57533-52011 |
| 57661D | rear floor front cross member | 57661-0D080 · 57661-0D100 · 57661-0D110 · 57661-0D150 |
| 57801C | Seat belt anchor No. 1 right side reinforcement sub-assembly | 57801-0D100 · 57801-0D120 · 57801-0D130 · 57801-0D170 |
| 57802C | Seat belt anchor No. 1 left reinforcement sub-assembly | 57802-0D090 · 57802-0D110 · 57802-0D120 · 57802-0D160 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-0D100 · 57805-0D110 · 57805-0D120 · 57805-0D140 |
| 58025A | Front floor right longitudinal beam plate sub-assembly | 58025-0D040 · 58025-0D060 · 58025-0D080 · 58025-0D140 |
| 58026A | Front floor left longitudinal beam plate sub-assembly | 58026-0D040 · 58026-0D060 · 58026-0D080 · 58026-0D120 |
| 58107D | Front cross member to front panel right reinforcement sub-assembly | 58107-0D010 · 58107-0D060 · 58107-0D140 · 58107-0D160 · 58107-0D170 · 58107-0D190 · 58107-0D200 |
| 58108D | Left front cross member to front panel reinforcement sub-assembly | 58108-0D010 · 58108-0D040 · 58108-0D110 · 58108-0D130 · 58108-0D140 · 58108-0D160 · 58108-0D170 |
| 58111A | Front floor right bottom panel | 58111-0D060 · 58111-0D170 · 58111-0D180 · 58111-0D280 · 58111-52170 |
| 58112C | Front floor left bottom panel | 58112-0D906 · 58112-0D912 · 58112-0D914 · 58112-0D916 · 58112-52904 |
| 58113A | front floor center panel | 58113-0D907 · 58113-0D908 · 58113-0D912 · 58113-0D913 · 58113-0D916 · 58113-0D918 · 58113-0D919 · 58113-0D924 · 58113-52904 · 58113-52934 · 58113-52935 · 58113-52936 |
| 58114A | front floor reinforcement | 58114-0D060 · 58114-0D110 · 58114-0D150 · 58114-0D151 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-0D100 · 58161-0D120 · 58161-0D130 · 58161-0D180 |
| 58165B | Front floor right cover | 58165-0D010 · 58165-0D070 · 58165-0D090 |
| 58166 | Front floor left cover | 58166-0D010 · 58166-0D060 · 58166-0D080 |
| 58171 | Parking brake base reinforcement | 58171-0D040 · 58171-0D080 · 58171-0D110 |
| 58172 | No. 3 ECU mounting bracket | 58172-0D020 · 58172-0D030 · 58172-0D050 |
| 58175A | No. 1 parking brake base reinforcement | 58175-0D010 · 58175-0D030 · 58175-0D060 |
| 58211H | central floor base | 58211-0D110 · 58211-0D140 · 58211-0D150 · 58211-0D170 · 58211-0D210 |
| 58307 | Body lower back panel sub-assembly | 58307-0D220 · 58307-0D230 · 58307-0D260 · 58307-0D290 · 58307-0D400 · 58307-0D410 · 58307-0D420 · 58307-0D430 · 58307-0D431 · 58307-0D440 |
| 58311 | rear floor pan | 58311-0D100 · 58311-0D140 · 58311-0D160 · 58311-0D260 |
| 58315D | Rear floor pan right extension | 58315-0D090 · 58315-0D110 · 58315-0D140 · 58315-0D160 |
| 58316D | Rear floor pan left extension | 58316-0D090 · 58316-0D110 · 58316-0D140 · 58316-0D160 |
| 58325E | Rear floor access hole cover | 58325-0D090 · 58325-0D110 · 58325-0D120 · 58325-0D160 |
| 58351E | Spare tire clip bracket | 58351-0D060 · 58351-0D080 · 58351-0D110 |
| 58384G | Body lower back panel upper right corner panel | 58384-0D110 · 58384-0D140 · 58384-0D170 · 58384-0D290 |
| 58385G | Body lower back panel upper left corner panel | 58385-0D110 · 58385-0D140 · 58385-0D160 · 58385-0D220 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-0D060 · 58386-0D070 · 58386-0D090 · 58386-0D110 · 58386-0D130 · 58386-0D170 · 58386-0D190 |
| 58396A | Wire harness clamp bracket | 82715-02E20 |
| 58398H | No. 1 floor under cover | 58398-0D040 · 58398-0D070 |
| 58399E | Clamp No. 1 (for underfloor cover) | 90467-14053 |
| 58791B | jack bracket | 58791-0D070 · 58791-0D071 · 58791-0D140 · 58791-0D160 |
