Toyota YARIS 前围板和挡风玻璃 — Figure 5503

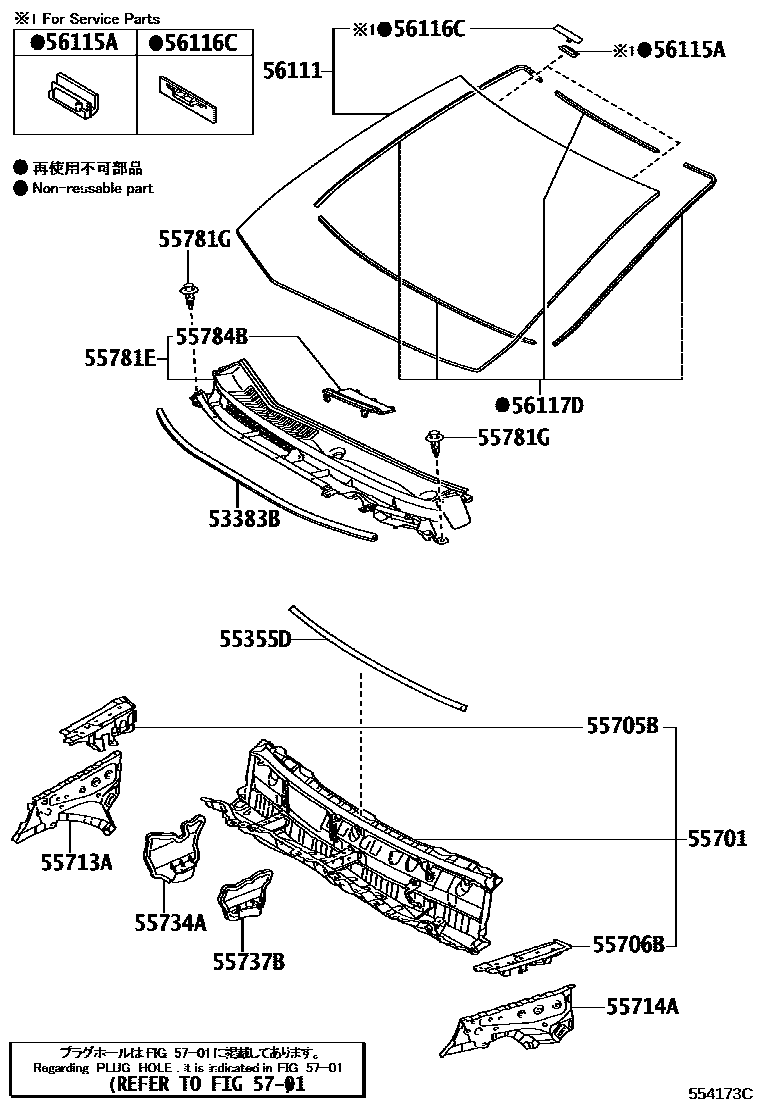

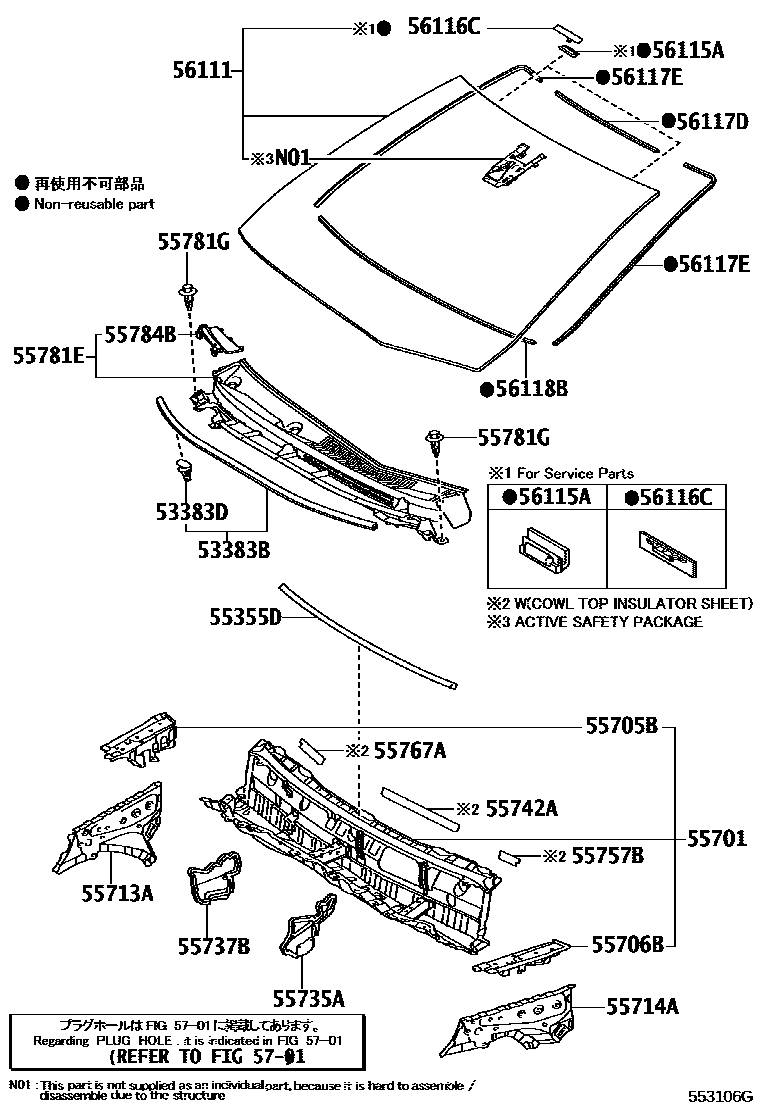

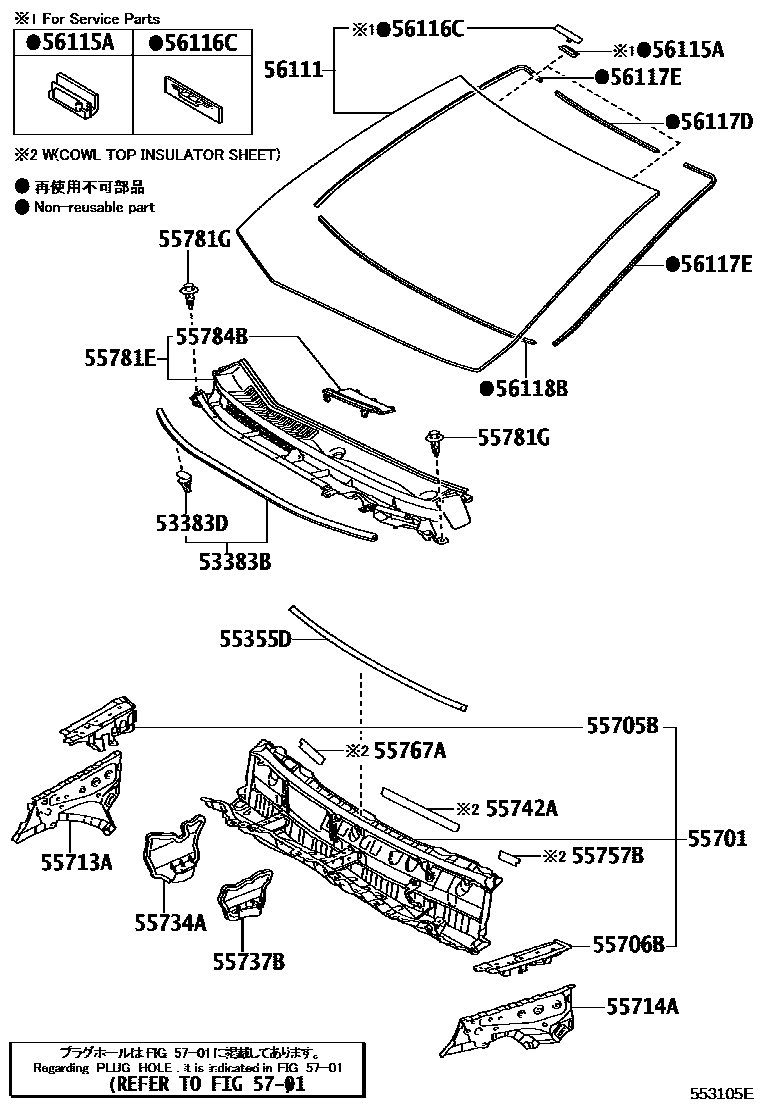

Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0D150 · 53383-0D170 · 53383-0D180 · 53383-0D200 · 53383-0D230 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-0D070 · 67867-0D130 |
| 55355D | Dashboard No. 1 Cushion Pad | 55355-0D160 · 55355-0D240 · 55355-0D260 · 55355-0D390 · 55355-0D480 · 55355-0D490 · 55355-0D500 |
| 55701 | Front apron sub-assembly | 55700-0D270 · 55700-0D271 · 55700-0D290 · 55700-0D291 · 55700-0D310 · 55700-0D311 · 55700-0D320 · 55700-0D321 · 55700-0D330 · 55700-0D331 · 55700-0D391 · 55700-0D410 · 55700-0D450 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0D120 · 55705-0D140 · 55705-0D150 · 55705-0D180 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0D120 · 55706-0D140 · 55706-0D150 · 55706-0D180 |
| 55713A | Right front wall upper side panel | 55713-0D110 · 55713-0D130 · 55713-0D140 · 55713-0D170 · 55713-0D190 · 55713-0D200 · 55713-0D210 · 55713-0D250 |
| 55714A | Left front wall upper side panel | 55714-0D110 · 55714-0D130 · 55714-0D140 · 55714-0D170 · 55714-0D190 · 55714-0D200 · 55714-0D210 · 55714-0D250 |
| 55734A | Right waterproof cover | 55734-0D070 · 55734-0D090 · 55734-0D130 |
| 55735A | Left waterproof cover panel | 55734-0D060 · 55734-0D100 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0D170 · 55737-0D180 · 55737-0D200 · 55737-0D210 · 55737-0D220 · 55737-0D290 |
| 55742A | Heat insulation panel on front wall | 55767-0D020 · 55767-0D050 · 55767-0D080 |
| 55757B | Front cowl upper cover heat insulation panel | 55767-0D030 · 55767-0D060 · 55767-0D090 |
| 55767A | No. 5 front wall heat shield | 55767-0D010 · 55767-0D040 · 55767-0D070 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0D270 · 55708-0D272 · 55708-0D280 · 55708-0D282 · 55708-0D310 · 55708-0D312 · 55708-0D322 · 55708-0D350 · 55708-0D352 · 55708-0D430 |
| 55781G | Ventilation grille clips on front apron | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-0D070 · 55784-0D080 · 55784-0D100 · 55784-0D110 · 55784-0D140 · 55784-0D170 |
| 56111 | windshield | 56101-0D320 · 56101-0D330 · 56101-0D360 · 56101-0D370 · 56101-0D380 · 56101-0D390 · 56101-0D400 · 56101-0D401 · 56101-0D410 · 56101-0D411 · 56101-0D420 · 56101-0D430 · 56101-0D460 · 56101-0D470 · 56101-0D540 · 56101-0D550 · 56101-0D700 · 56101-0D710 · 56101-0D740 · 56101-0D760 · 56101-0D770 · 56101-0D780 · 56101-0D820 · 56101-0D850 · 56101-0D860 · 56101-0DD00 · 56101-0DD10 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117D | windshield adhesive seal | 56117-0D160 · 56117-0D310 |
| 56117E | Window glass adhesive seals | 56117-0D170 · 56117-0D320 |
| 56118B | Window Glass No. 2 Adhesive Sealing Strip | 56117-0D180 · 56117-0D300 · 56117-0D330 |
