Toyota YARIS Brake Pedal & Bracket — Figure 4701

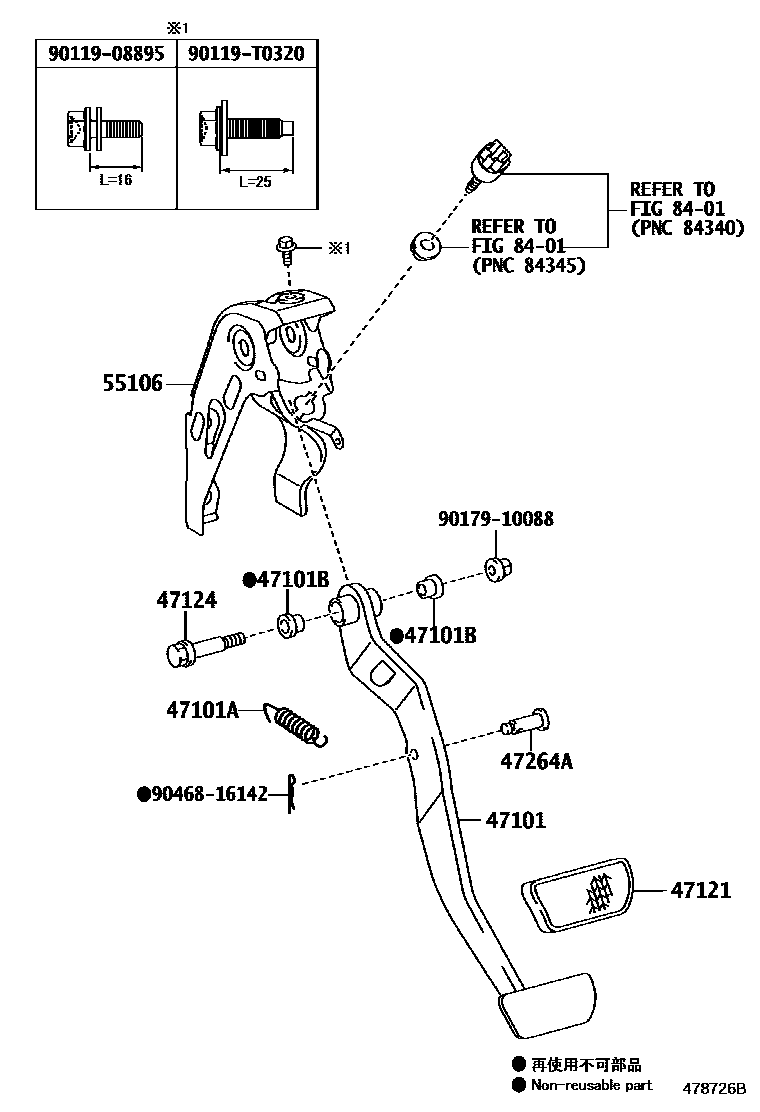

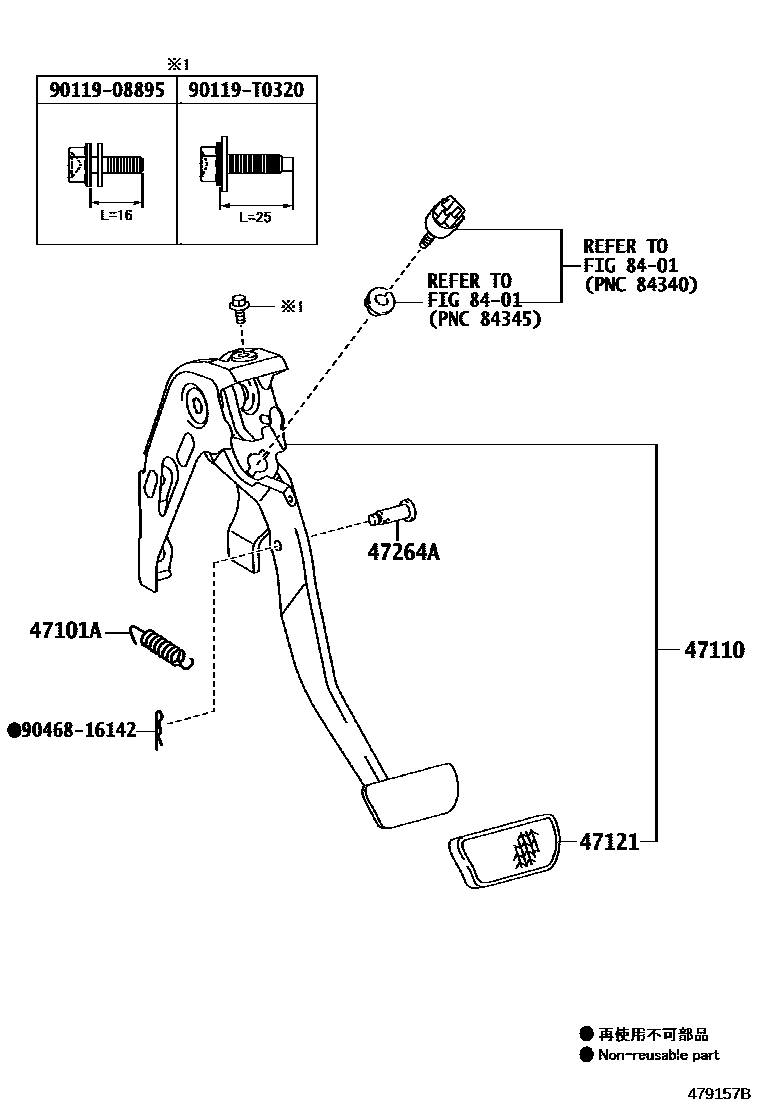

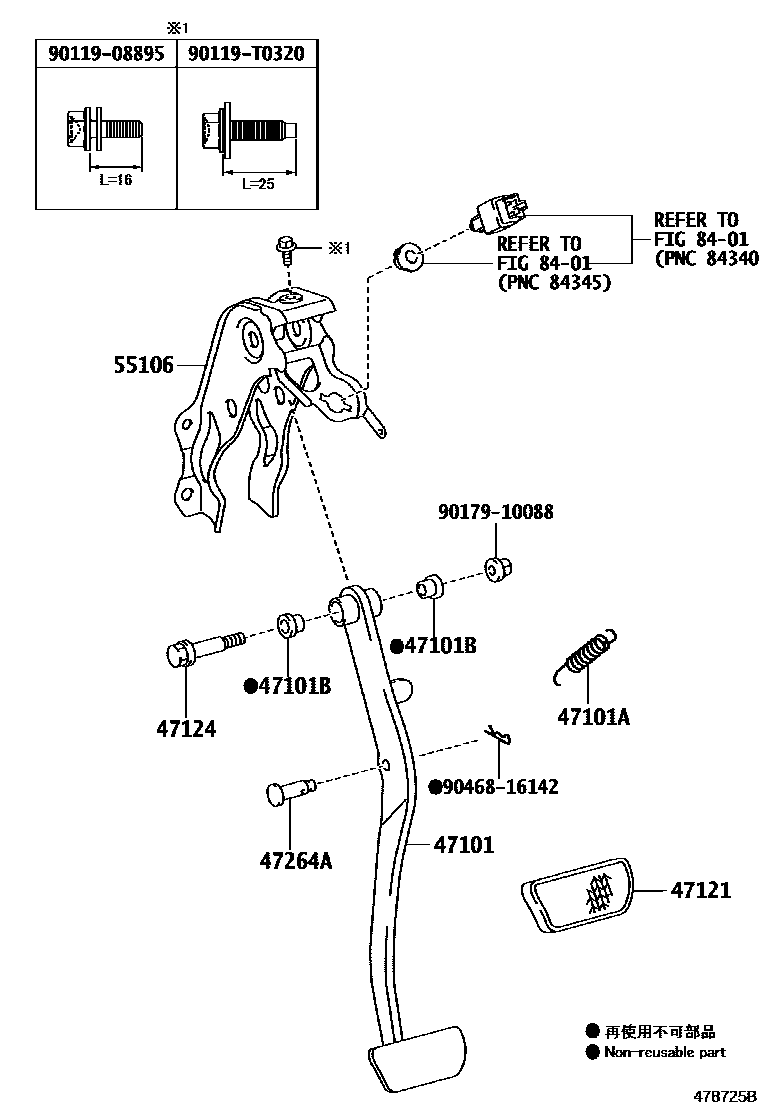

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-0D330 · 47101-0D340 · 47101-0D350 · 47101-0D360 · 47101-0D410 · 47101-0D420 |
| 47101A | Spring (for brake pedal return) | 90506-14088 · 90506-T0015 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47110 | Brake pedal bracket assembly | 47110-0D420 · 47110-0D620 · 47110-0D630 |
| 47121 | brake pedal pad | 31321-02010 · 31321-0D070 · 31321-52010 · 47121-02010 · 47121-02020 · 47121-0D070 · 47121-52010 |
| 47124 | brake pedal shaft | 90109-10167 · 90109-T0044 |
| 47264A | Pin (for push rod) | 90249-08051 |
| 55106 | Brake pedal bracket sub-assembly | 55106-0D170 · 55106-0D180 · 55106-0D200 |
