Toyota YARIS 后桥半轴和后桥轮毂 — Figure 4102

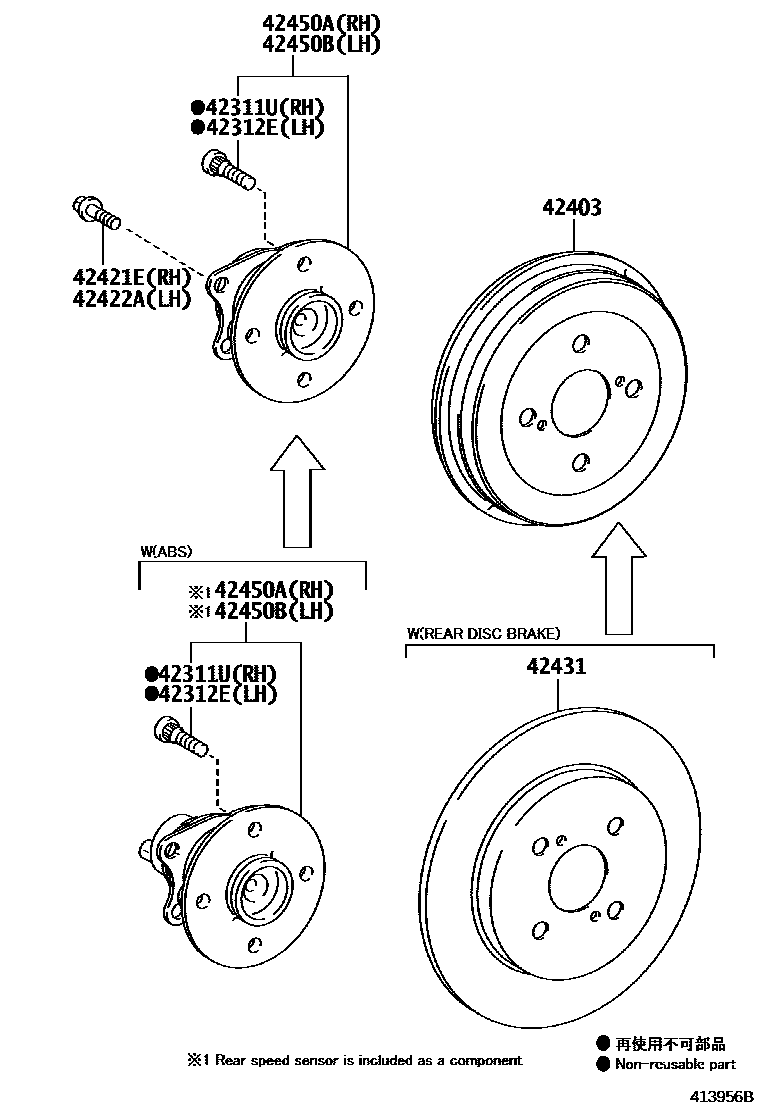

Toyota YARIS EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02049 · 90942-02081 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 · 90942-02081 |
| 42403 | Rear brake drum sub-assembly | 42431-0D080 · 42431-0D100 · 42431-0D150 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12350 · 90105-T0187 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12350 · 90105-T0187 |
| 42431 | rear brake disc | 42431-0D090 · 42431-0D110 |
| 42450A | Rear axle right hub and bearing assembly | 42410-0D090 · 42450-0D120 · 42450-0D130 · 42450-0D200 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42410-0D090 · 42450-0D120 · 42450-0D130 · 42450-0D200 |
