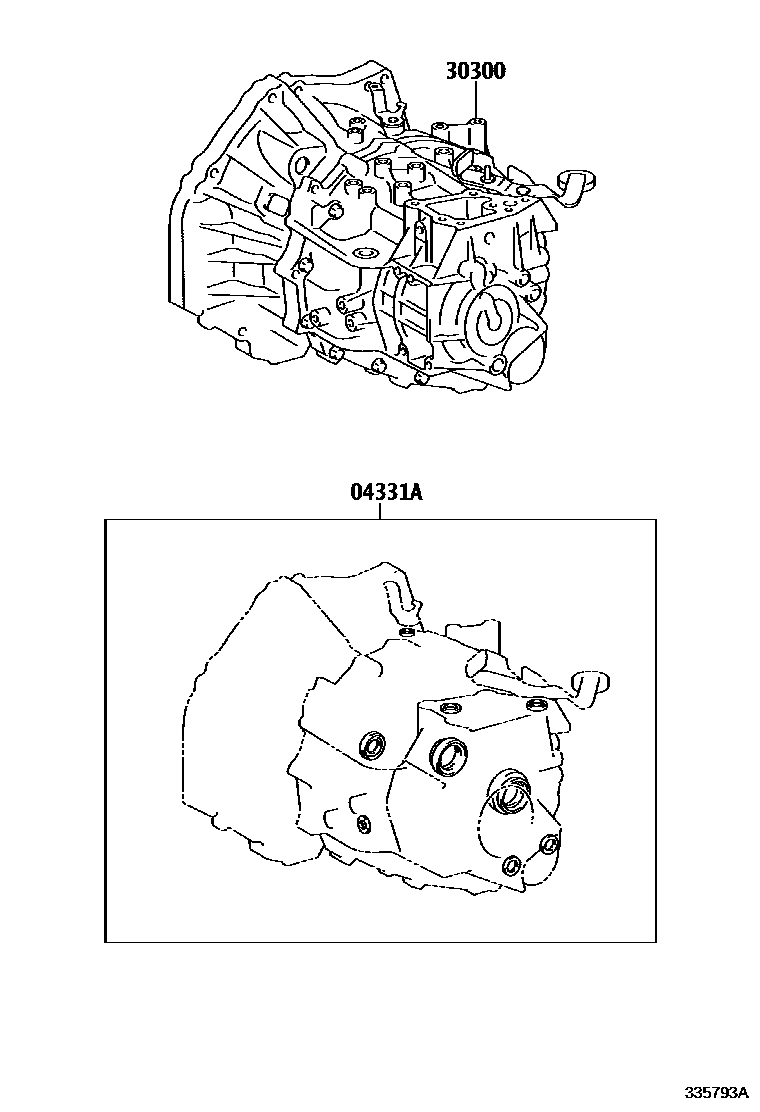

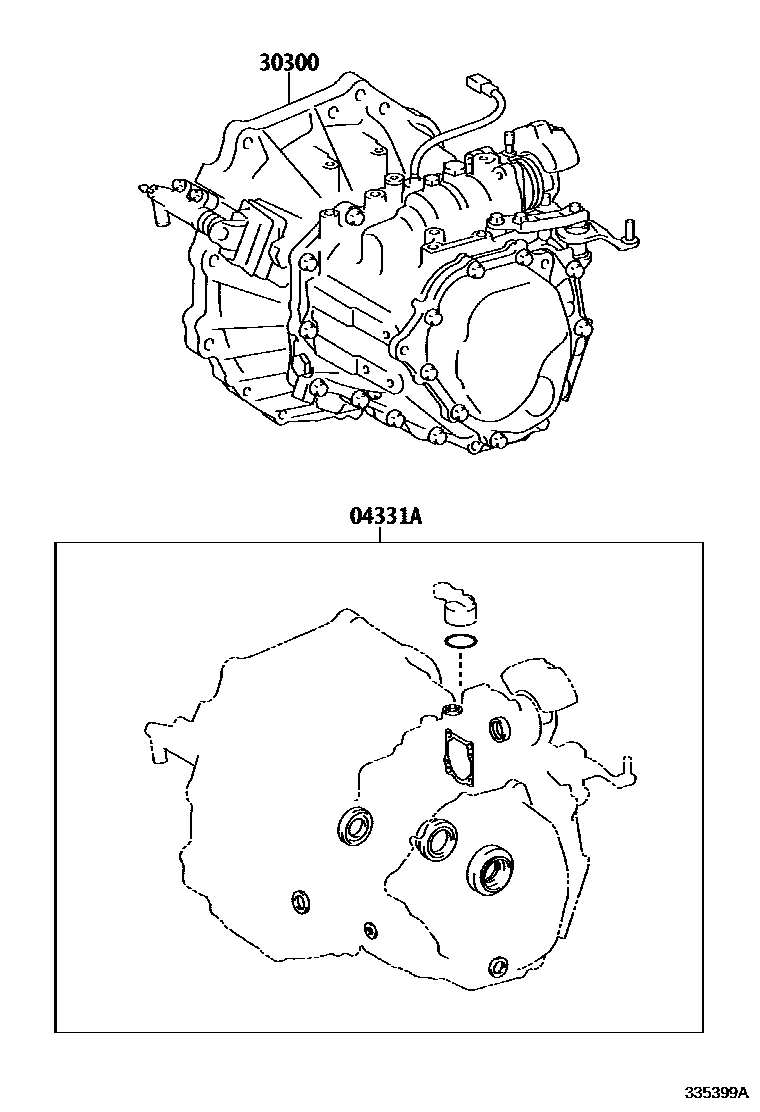

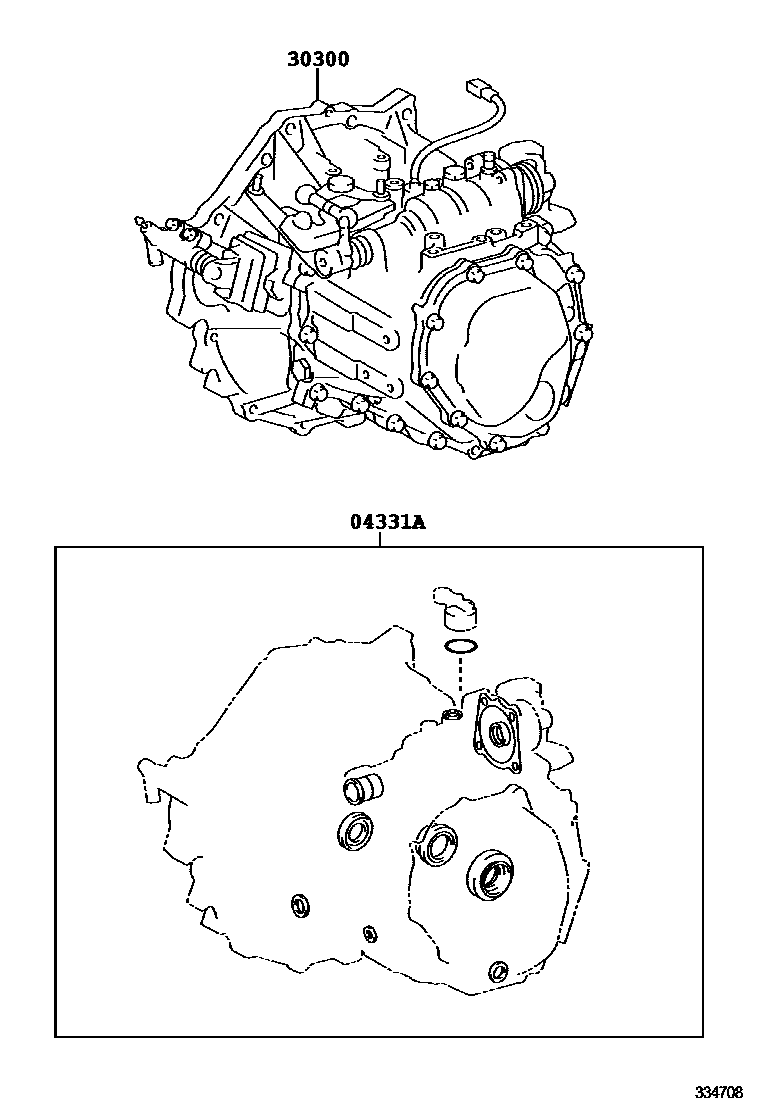

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-0D220 · 04331-0D250 · 04331-20280 · 04331-52660 |
| 30300 | Manual transmission axle assembly | 30300-0D280 · 30300-0D281 · 30300-0D290 · 30300-0D291 · 30300-0D450 · 30300-0D460 · 30300-0D490 · 30300-0D520 · 30300-0D530 |
