Toyota YARIS 点火线圈和火花塞 — Figure 1901

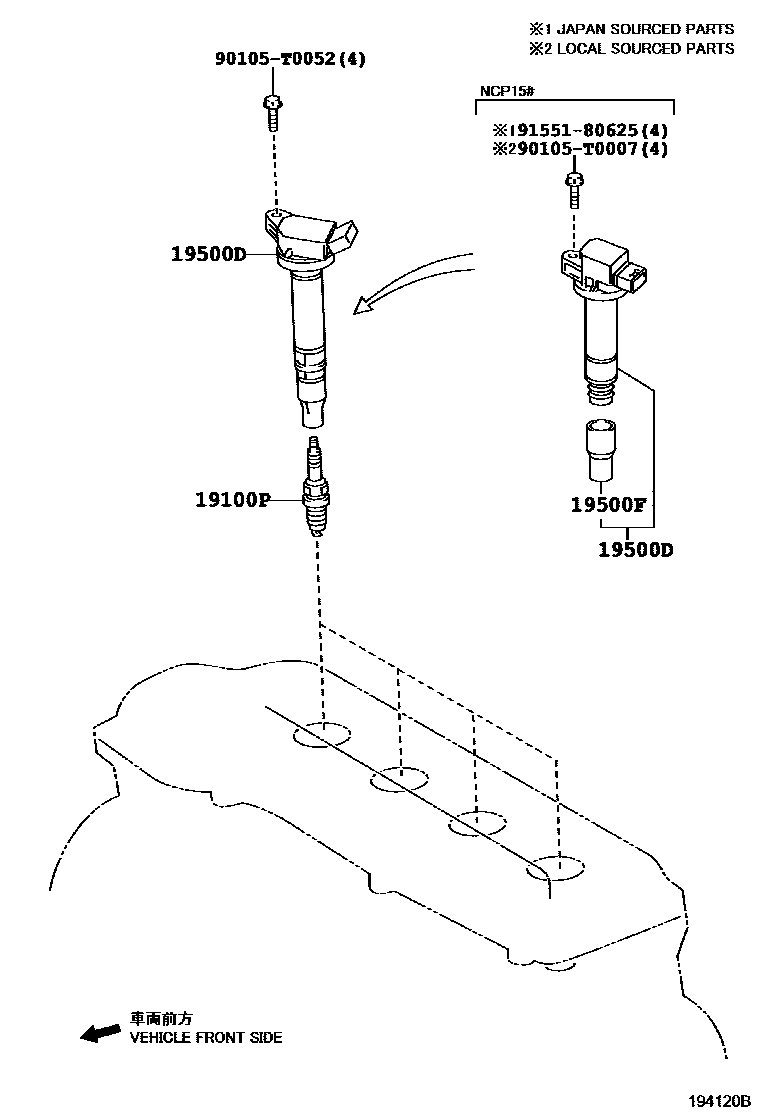

Toyota YARIS EPC diagram 1901, 点火线圈和火花塞, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 9004A-91068 · 90919-01164 · 90919-01176 · 90919-01240 · 90919-01275 · 90919-01289 · 90919-01291 · 90919-T1002 |
| 19500D | No. 1 ignition coil | 90919-02257 · 90919-02265 · 90919-T2007 · 90919-T2010 · 90919-T2011 |
| 19500F | BOUCHON, BOUCHON | 90919-11009 |
