Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 6 images and 5 PNC and OE references.

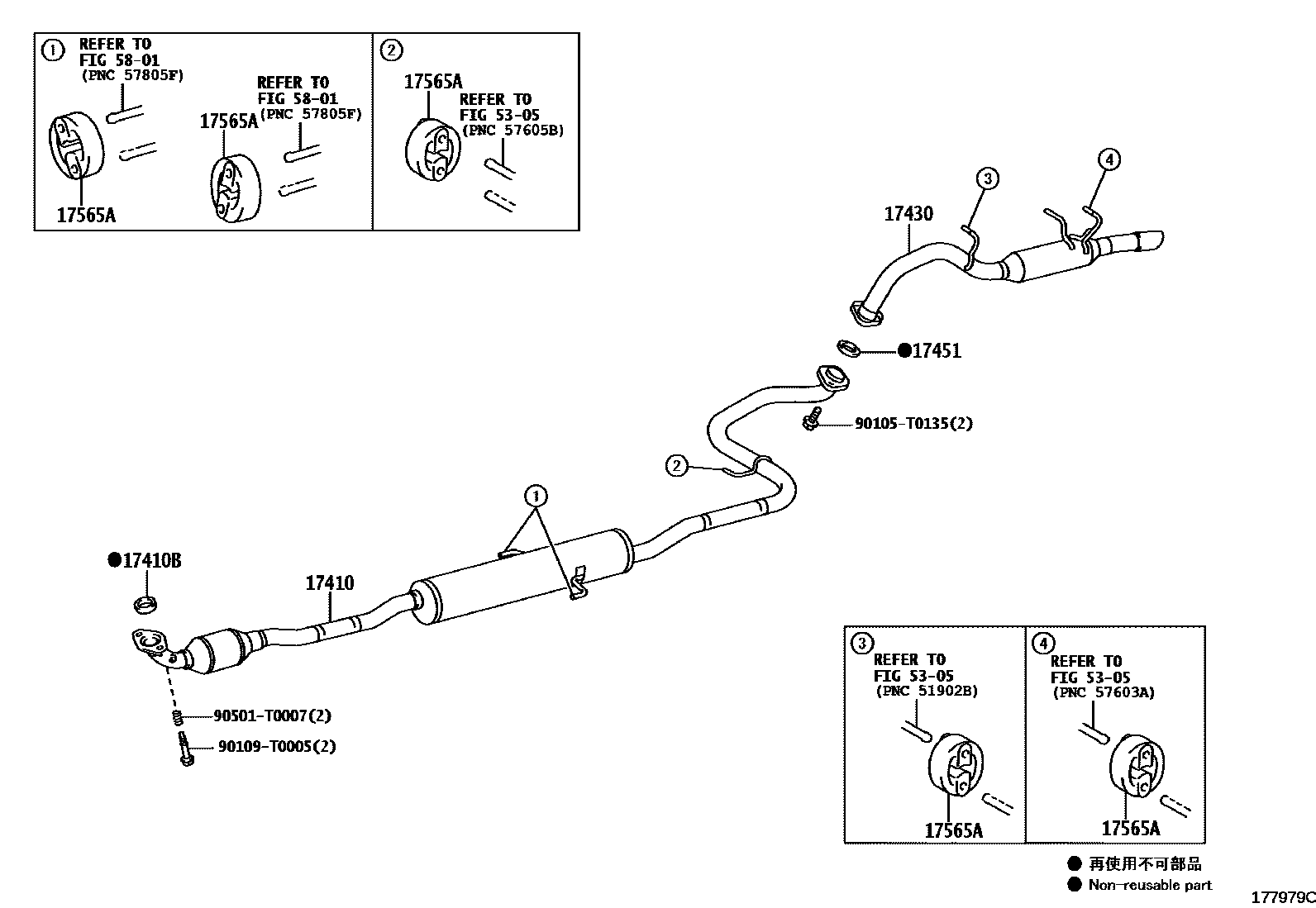

Toyota YARIS Exhaust Pipe EPC diagram — 177979C — Exhaust Pipe — 177979C (201310 – 201709)

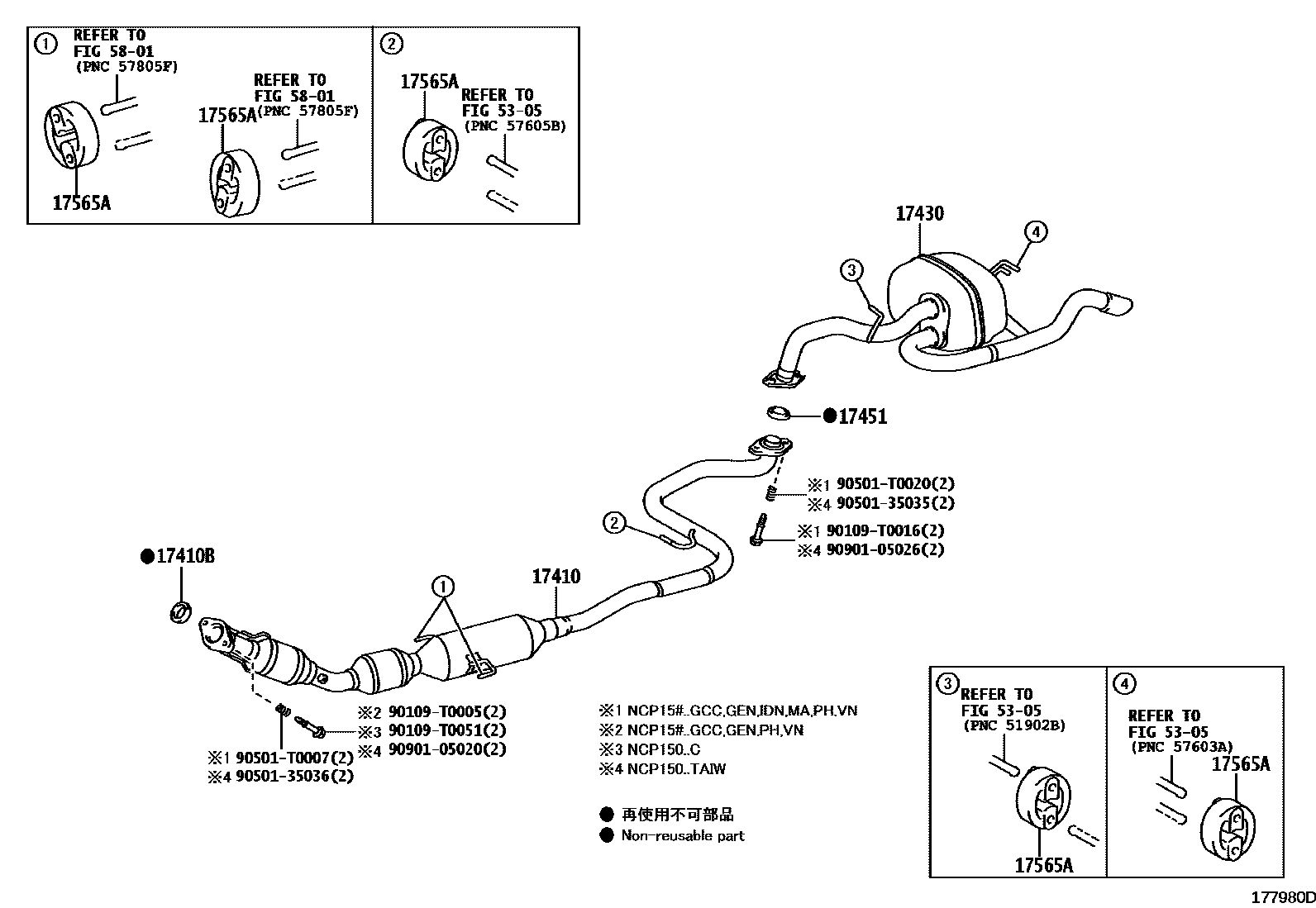

Toyota YARIS Exhaust Pipe EPC diagram — 177980D — Exhaust Pipe — 177980D (201403 – 999999)

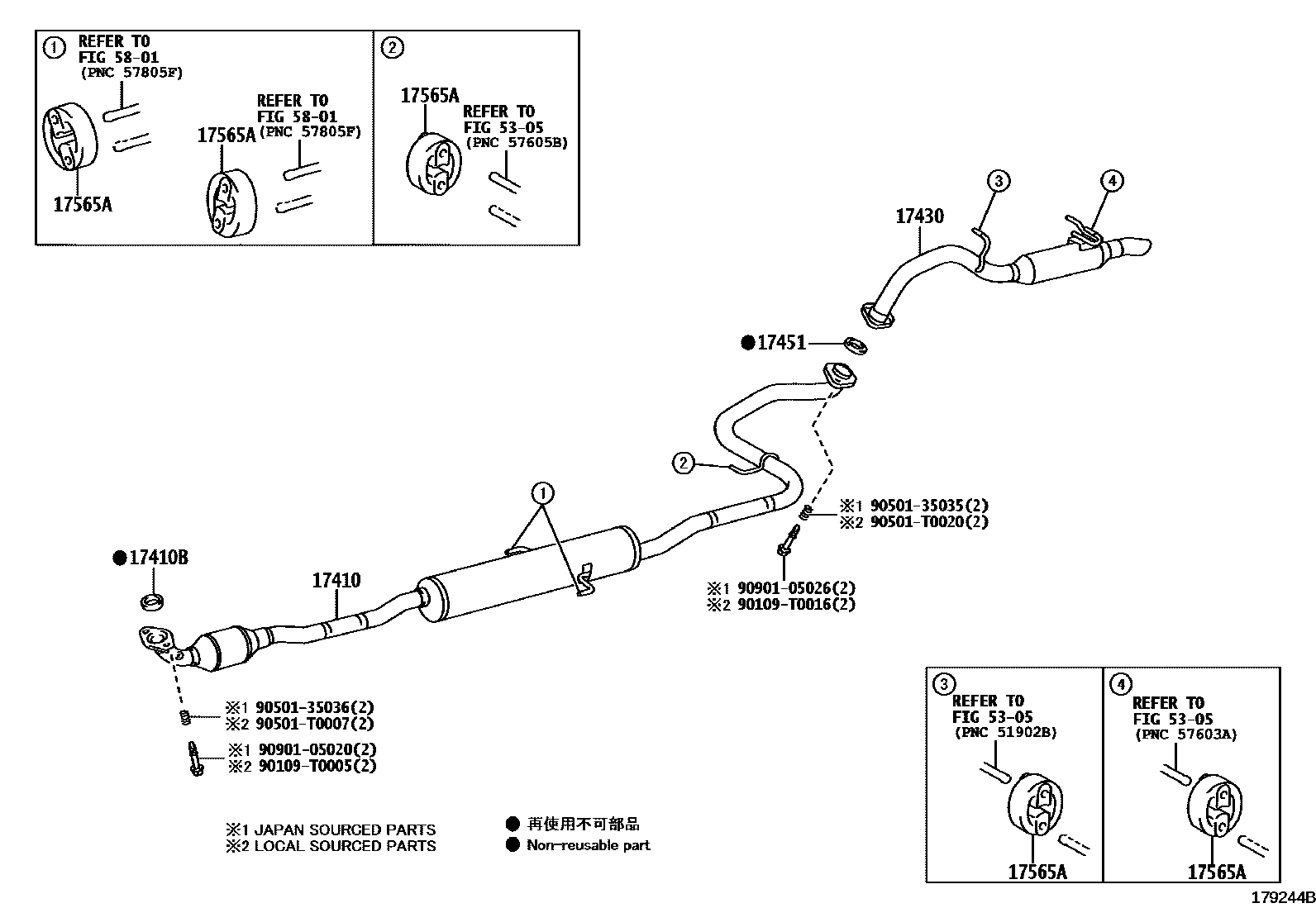

Toyota YARIS Exhaust Pipe EPC diagram — 179244B — Exhaust Pipe — 179244B (201605 – 999999)

Toyota YARIS Exhaust Pipe EPC diagram — 179370B — Exhaust Pipe — 179370B (201610 – 201802)

Toyota YARIS Exhaust Pipe EPC diagram — 179902B — Exhaust Pipe — 179902B (201802 – 999999)

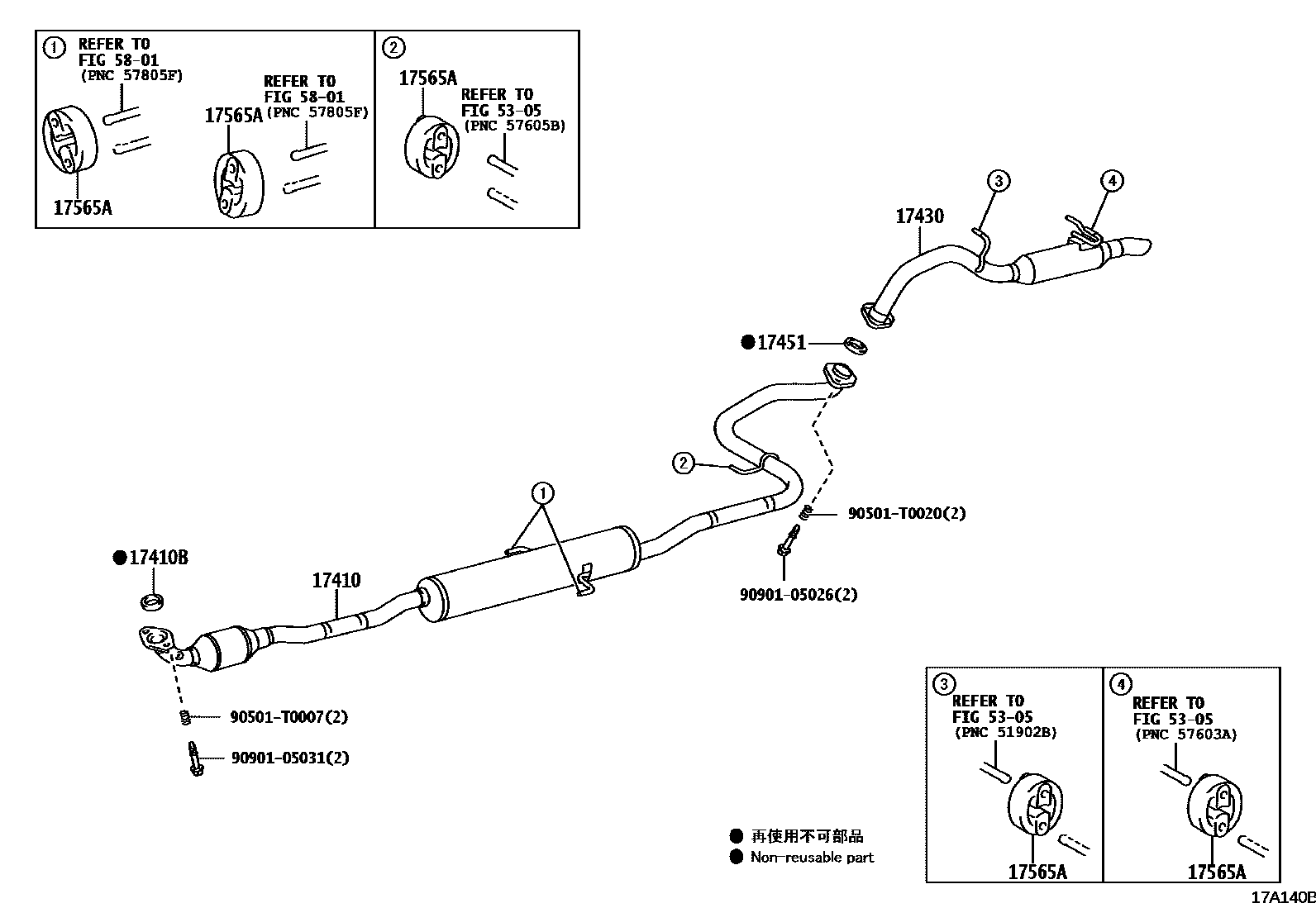

Toyota YARIS Exhaust Pipe EPC diagram — 17A140B — Exhaust Pipe — 17A140B (201806 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-0M200 · 17410-0M240 · 17410-0M260 · 17410-0M300 · 17410-0Y230 · 17410-0Y460 · 17410-0Y480 · 17410-0Y481 · 17410-0Y490 · 17410-0Y491 · 17410-0Y500 · 17410-0Y501 · 17410-0Y532 · 17410-0Y580 · 17410-0Y581 · 17410-0Y591 · 17410-0Y600 · 17410-0Y660 · 17410-0Y670 · 17410-0YA10
17410B	Exhaust pipe gasket	17451-0M020 · 17451-21070
17430	Exhaust tailpipe assembly	17430-0M190 · 17430-0M200 · 17430-0M220 · 17430-0Y080 · 17430-0Y200 · 17430-0Y210 · 17430-0Y230 · 17430-0Y350 · 17430-0Y480 · 17430-0Y520
17451	Exhaust pipe gasket	17451-0M032 · 17451-23042 · 90917-06048
17565A	No. 4 exhaust pipe lifting lug	17565-0M030 · 17565-0M040 · 17565-0Y020 · 17565-47010
