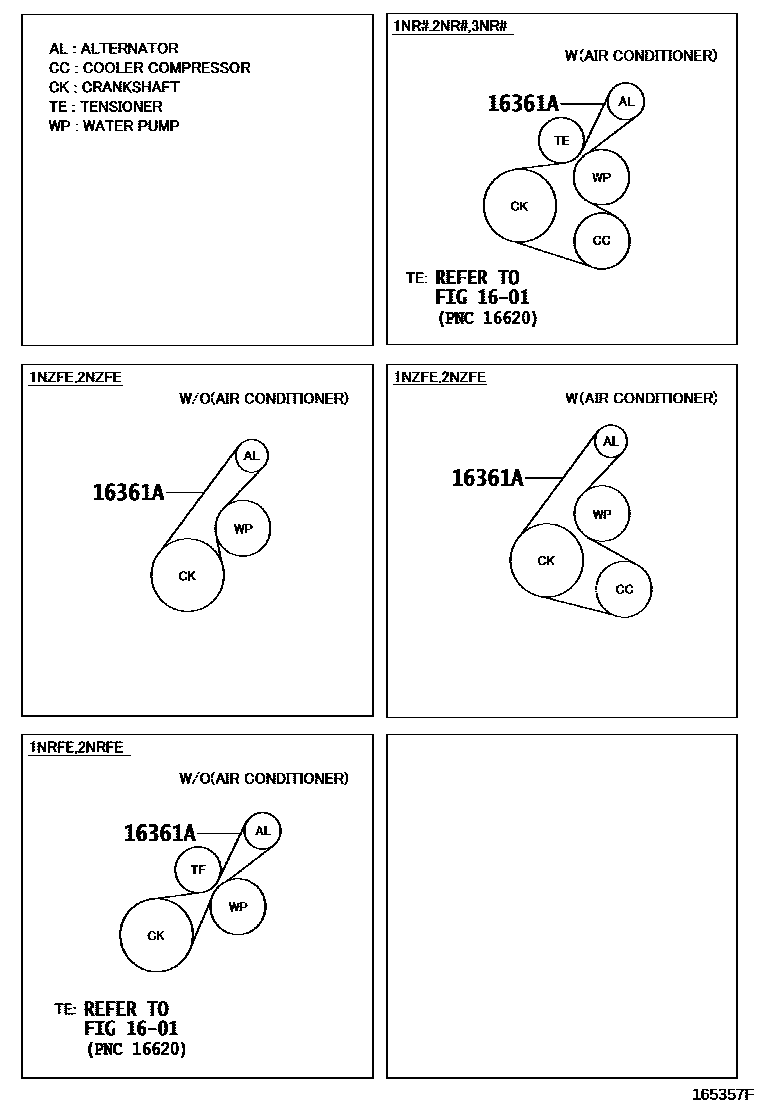

Toyota YARIS V-Belt — Figure 1605
Toyota YARIS EPC diagram 1605, V-Belt, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02722 · 90916-T2029 · 90916-T2030 · 90916-T2031 · 90916-T2032 · 90916-T2036 · 90916-T2039 · 90916-T2040 · 90916-T2041 · 90916-T2042 · 90916-T2044 · 90916-T2046 · 90916-T2047 |
