Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 4 PNC and OE references.

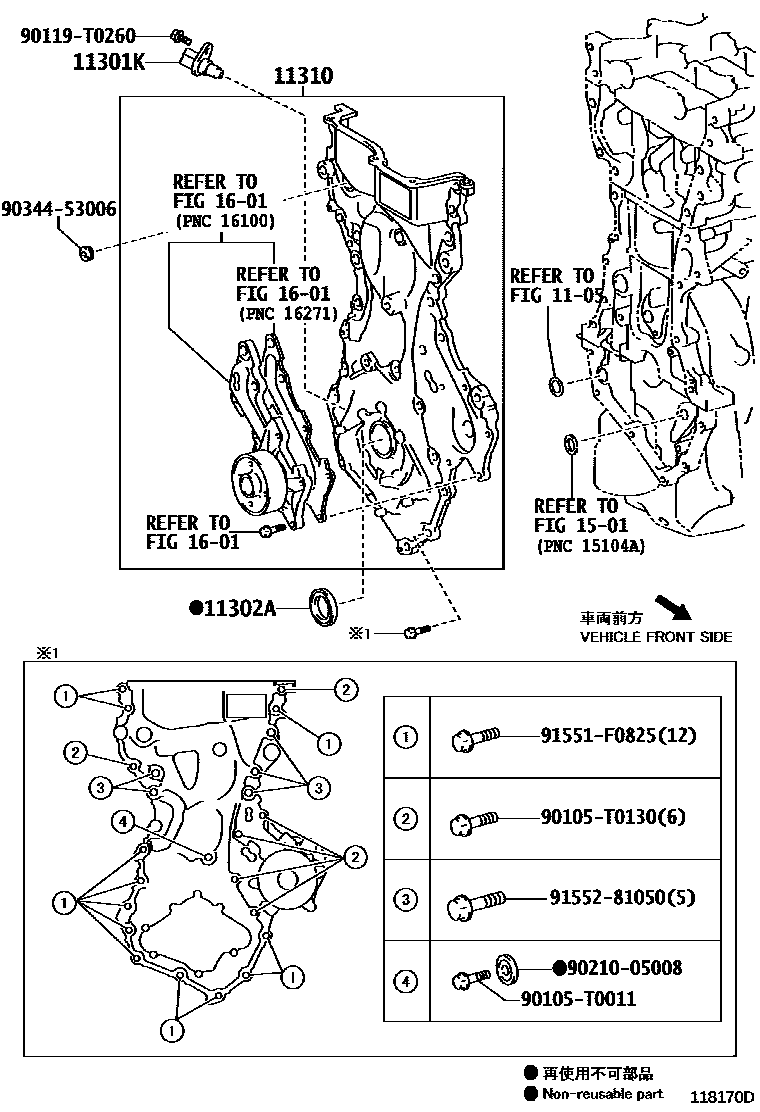

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 118170D
Timing Gear Cover & Rear End Plate — 118170D (201310 – 201607)

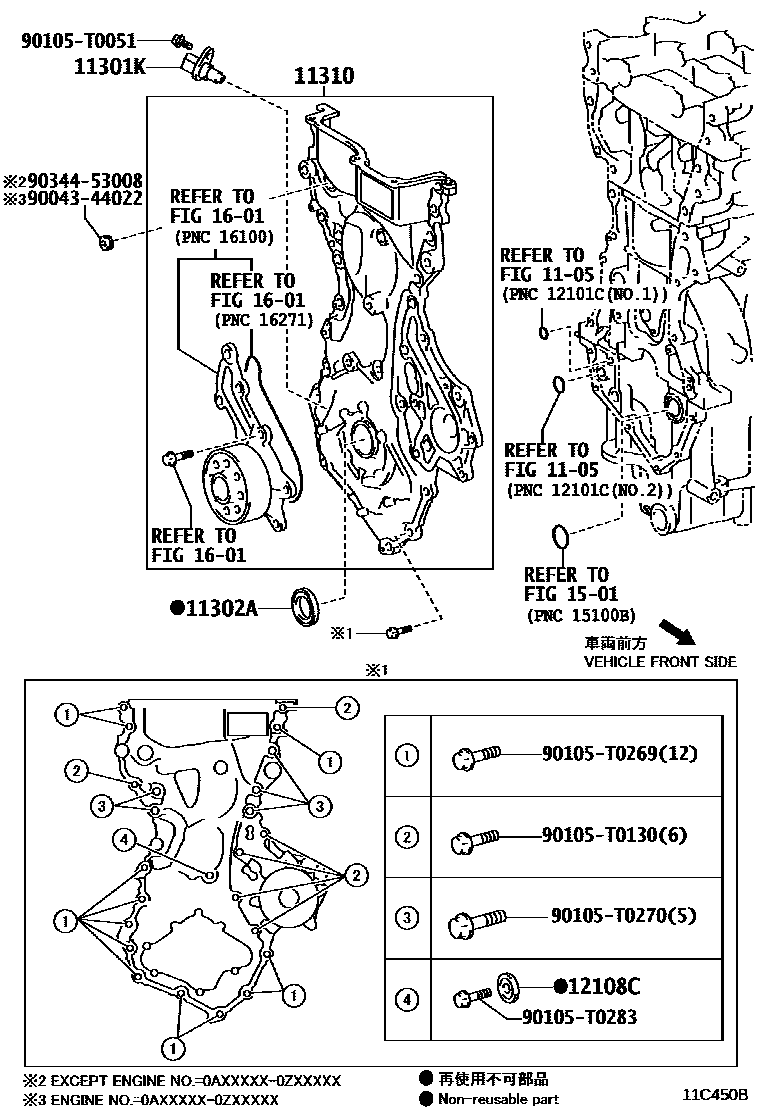

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11C450B
Timing Gear Cover & Rear End Plate — 11C450B (201605 – 999999)

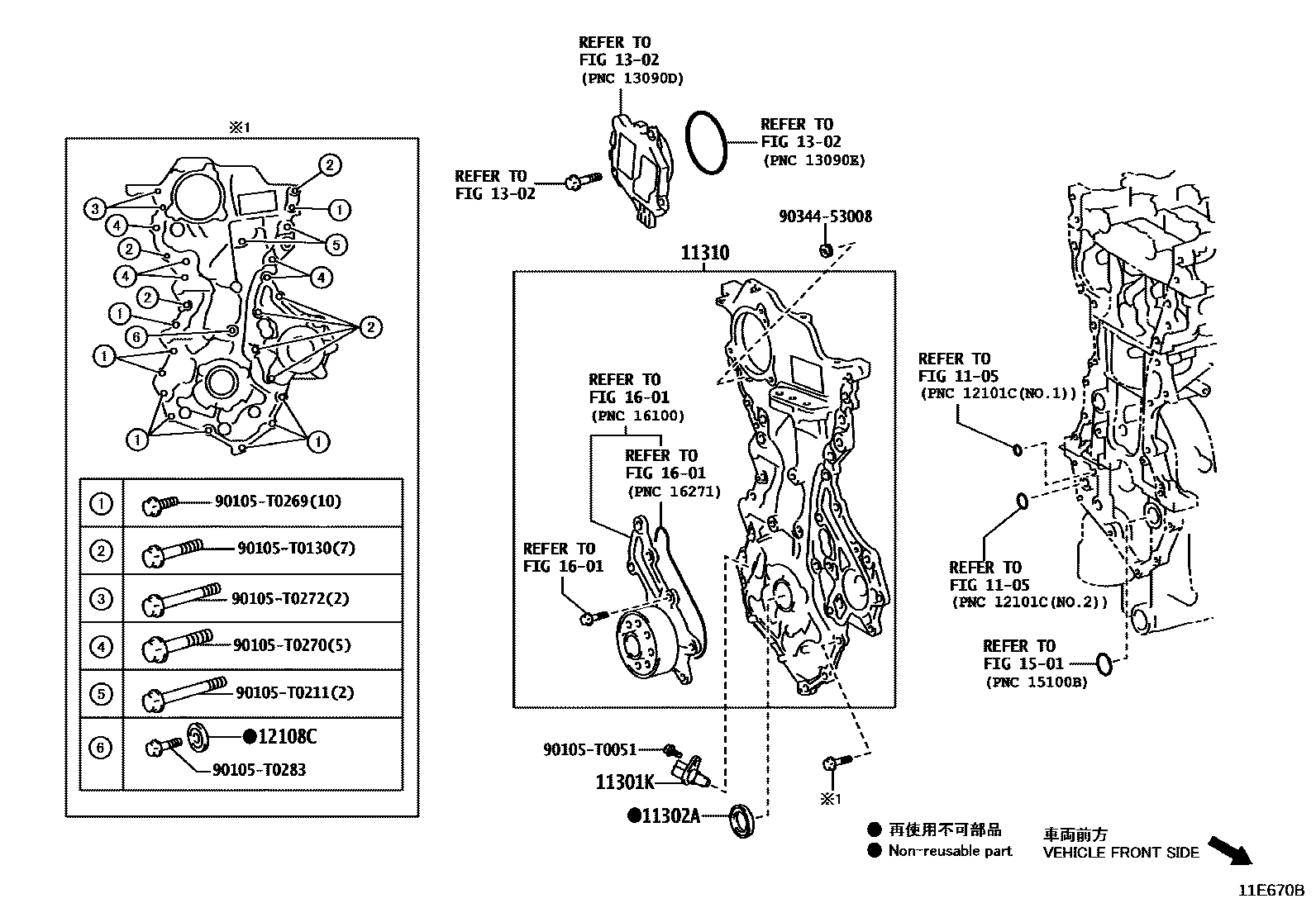

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11E670B
Timing Gear Cover & Rear End Plate — 11E670B (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05073 · 90919-05079 · 90919-T5001
11302AOil seal (for timing chain or timing belt cover)90311-25032 · 90311-T0075 · 90311-T0076
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-0Y040 · 11310-0Y060 · 11310-0Y061 · 11310-0Y070 · 11310-0Y080 · 11310-47041 · 11310-47042
12108Cpadding16258-0T020 · 16258-0Y010 · 16258-37010
