Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

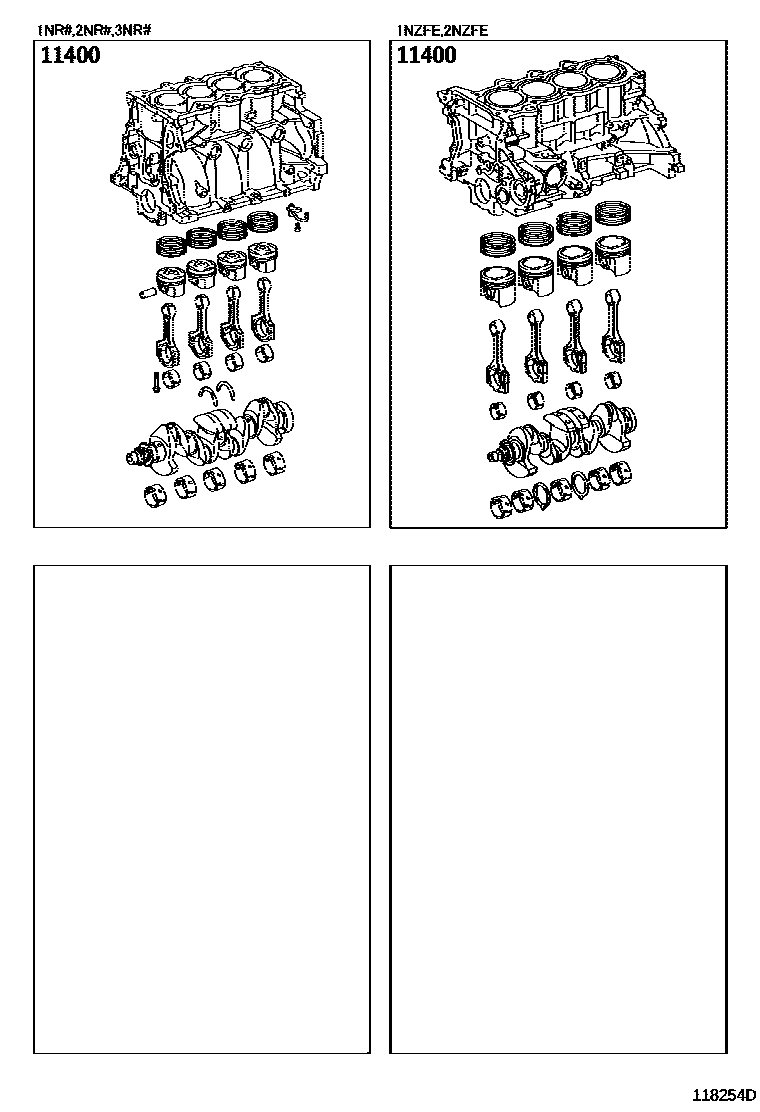

Toyota YARIS Short Block Assembly EPC diagram — 118254D
Short Block Assembly — 118254D (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0M032 · 11400-0M041 · 11400-0Y050 · 11400-0Y100 · 11400-0Y110 · 11400-0Y120 · 11400-0Y130 · 11400-0Y131 · 11400-0Y140 · 11400-0Y150 · 11400-0Y160 · 11400-0Y170 · 11400-0Y220 · 11400-0Y300 · 11400-21150 · 11400-21470
