Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

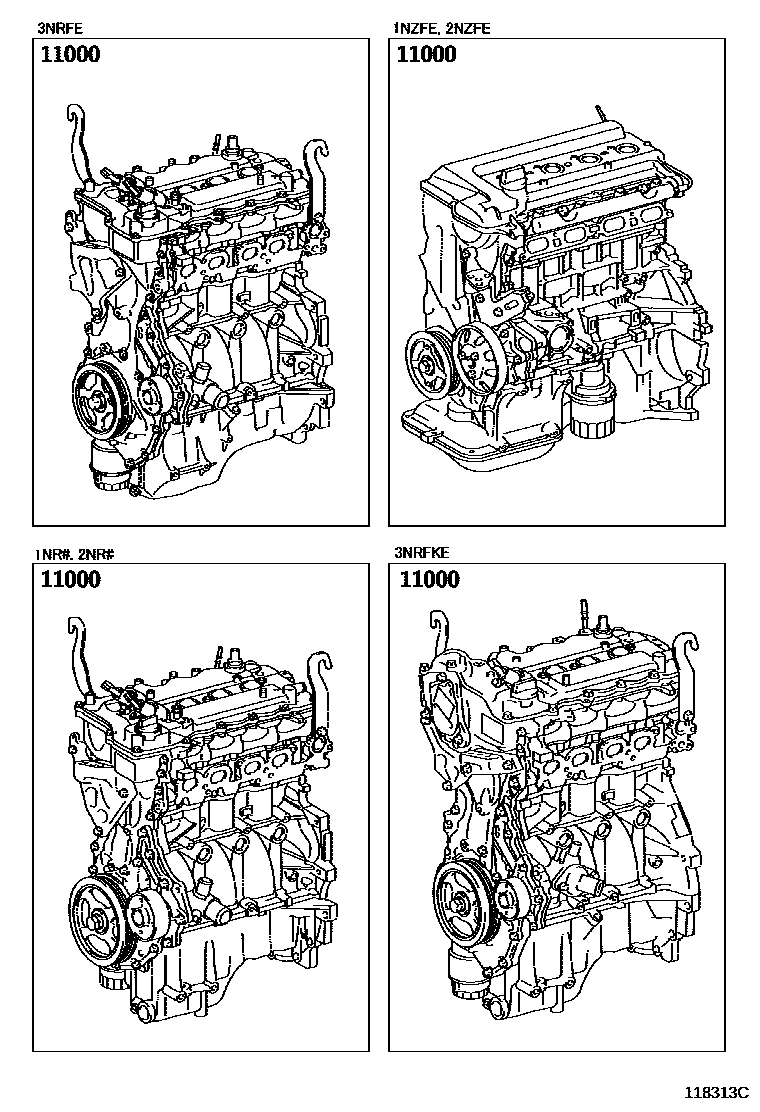

Toyota YARIS Partial Engine Assembly EPC diagram — 118313C
Partial Engine Assembly — 118313C (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0M031 · 19000-0M041 · 19000-0M042 · 19000-0M051 · 19000-0Y050 · 19000-0Y110 · 19000-0Y120 · 19000-0Y130 · 19000-0Y150 · 19000-0Y160 · 19000-0Y161 · 19000-0Y170 · 19000-0Y180 · 19000-0Y190 · 19000-0Y200 · 19000-0Y220 · 19000-0Y280 · 19000-0Y370 · 19000-0Y390 · 19000-0Y430 · 19000-21831 · 19000-21B51 · 19000-21E00
