Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715

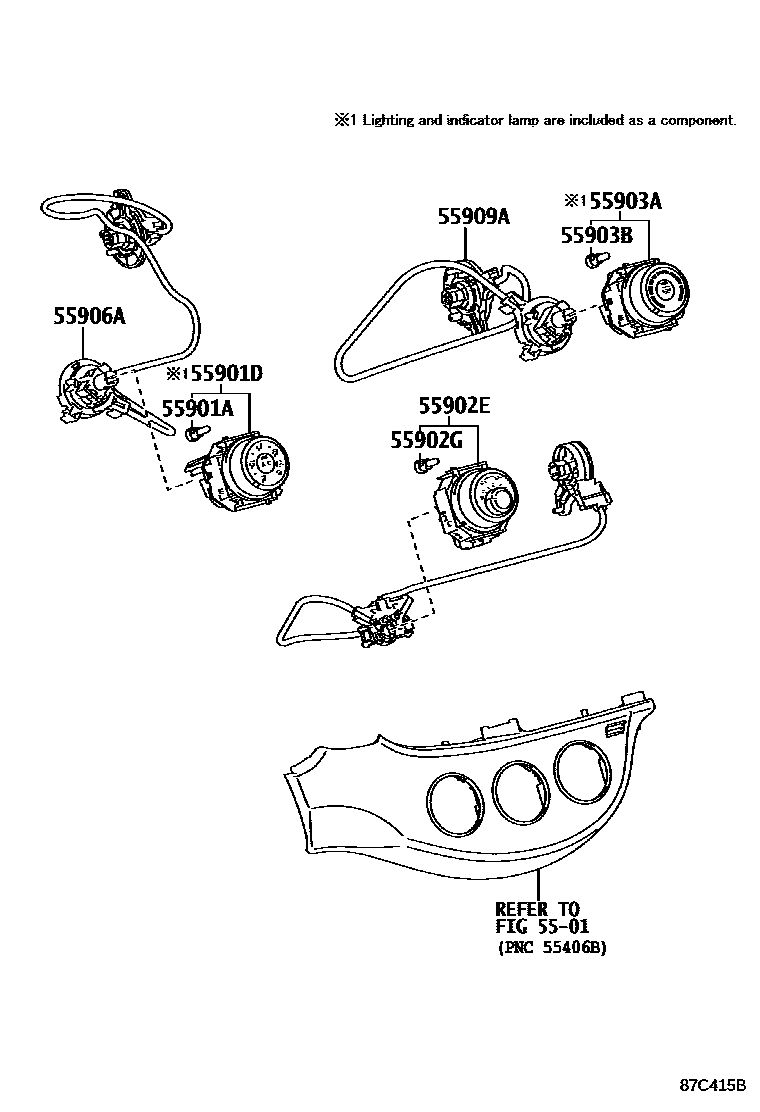

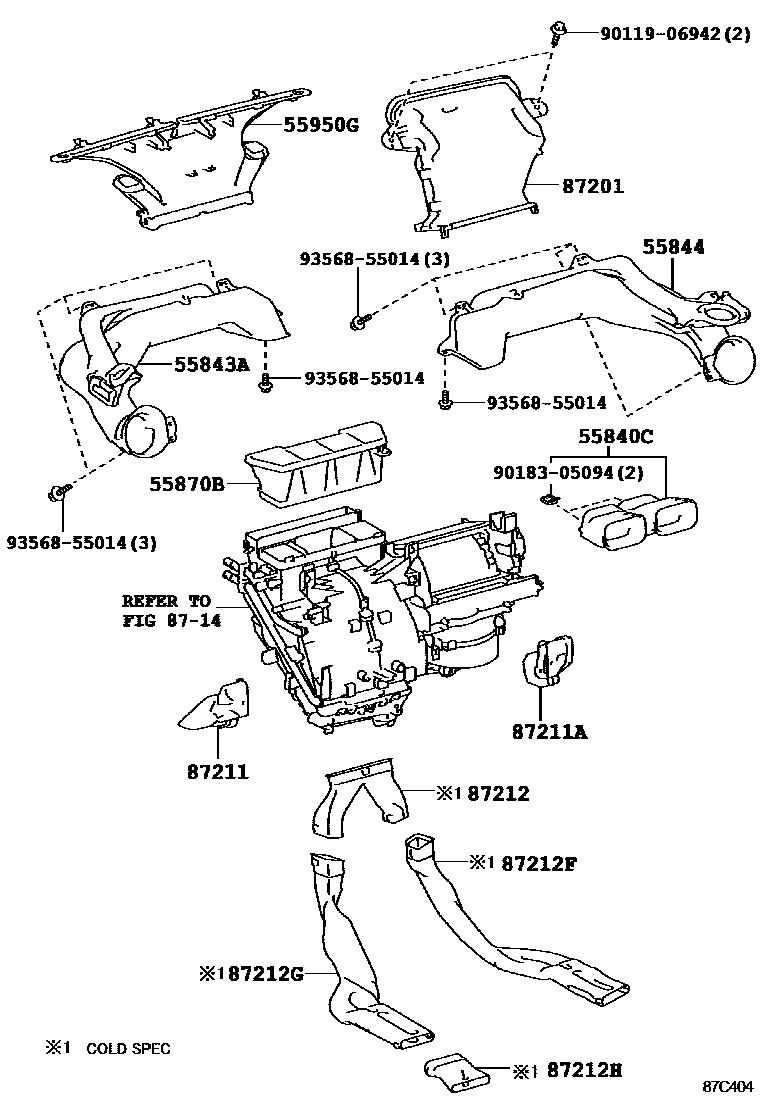

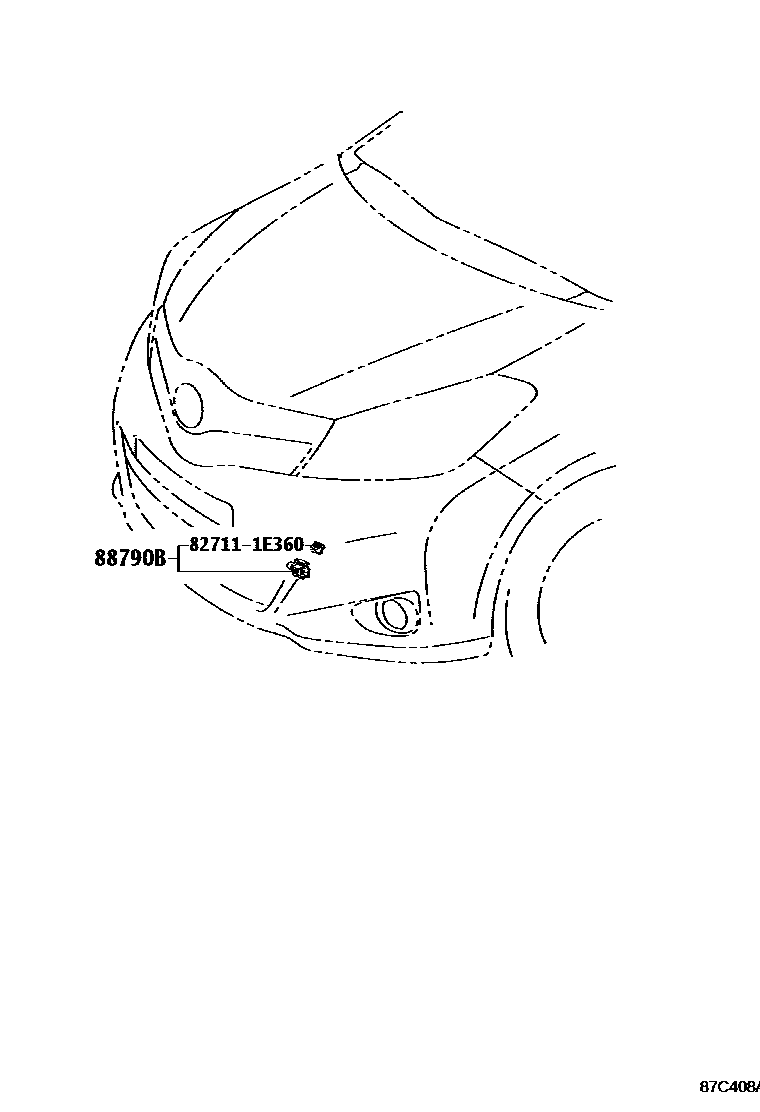

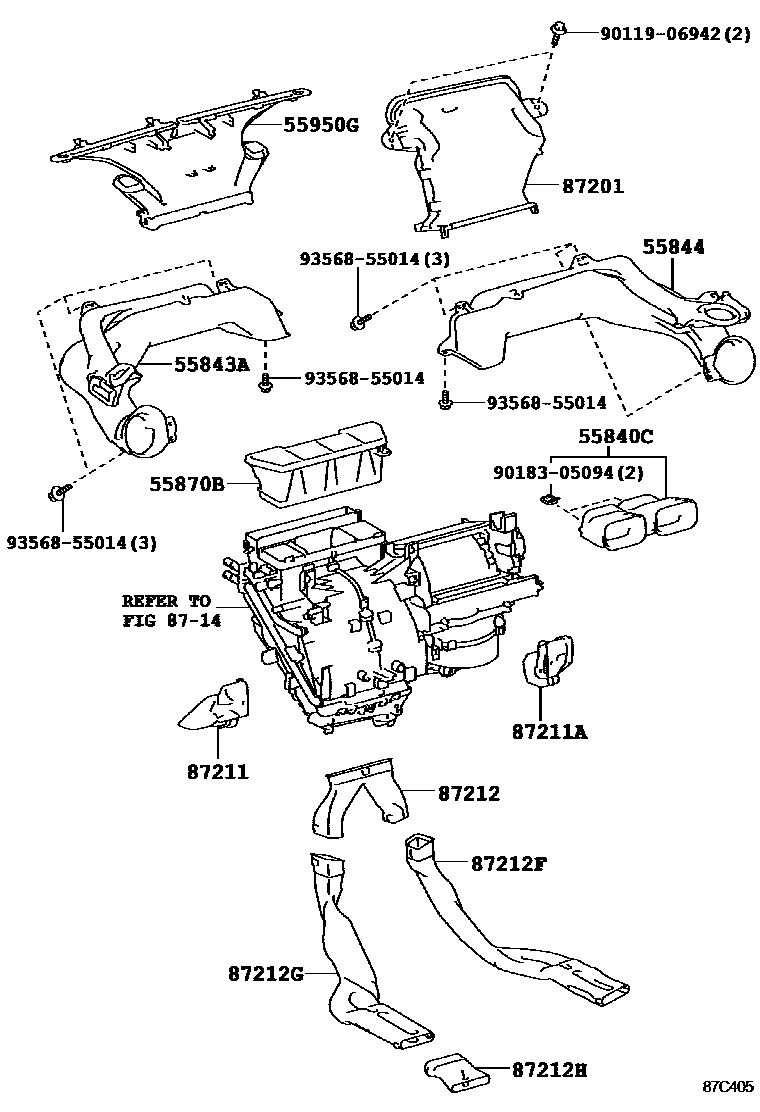

Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-52090 |
| 55843A | Air duct No. 1 from heater to air register | 55843-52340 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-52250 |
| 55870B | Heater to air regulator air duct assembly | 55870-52040 |
| 55901A | No. 1 heater control bulb sub-assembly | 90010-01145 |
| 55901D | No. 1 heater control sub-assembly | 55901-52400 |
| 55902E | No. 2 heater control sub-assembly | 55902-52200 · 55902-52220 |
| 55902G | No. 2 heater control bulb sub-assembly | 90010-01145 |
| 55903A | No. 3 heater control sub-assembly | 55903-52650 · 55903-52660 · 55903-52680 · 55903-52690 |
| 55903B | No. 3 heater control bulb sub-assembly | 90010-01145 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52132 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |
| 55950G | Defroster nozzle assembly | 55950-52170 |
| 87201 | No. 1 air duct sub-assembly | 87201-52150 |
| 87211 | No. 1 air duct | 87211-52060 |
| 87211A | Duct No. 2 | 87211-52070 |
| 87212 | No. 1 rear air duct | 87215-52050 |
| 87212F | No. 2 rear air duct | 87212-52100 |
| 87212G | No. 3 rear air duct | 87213-52070 |
| 87212H | No. 4 rear air duct | 87216-52040 |
| 88790B | Thermistor assembly | 88790-22131 |
