Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

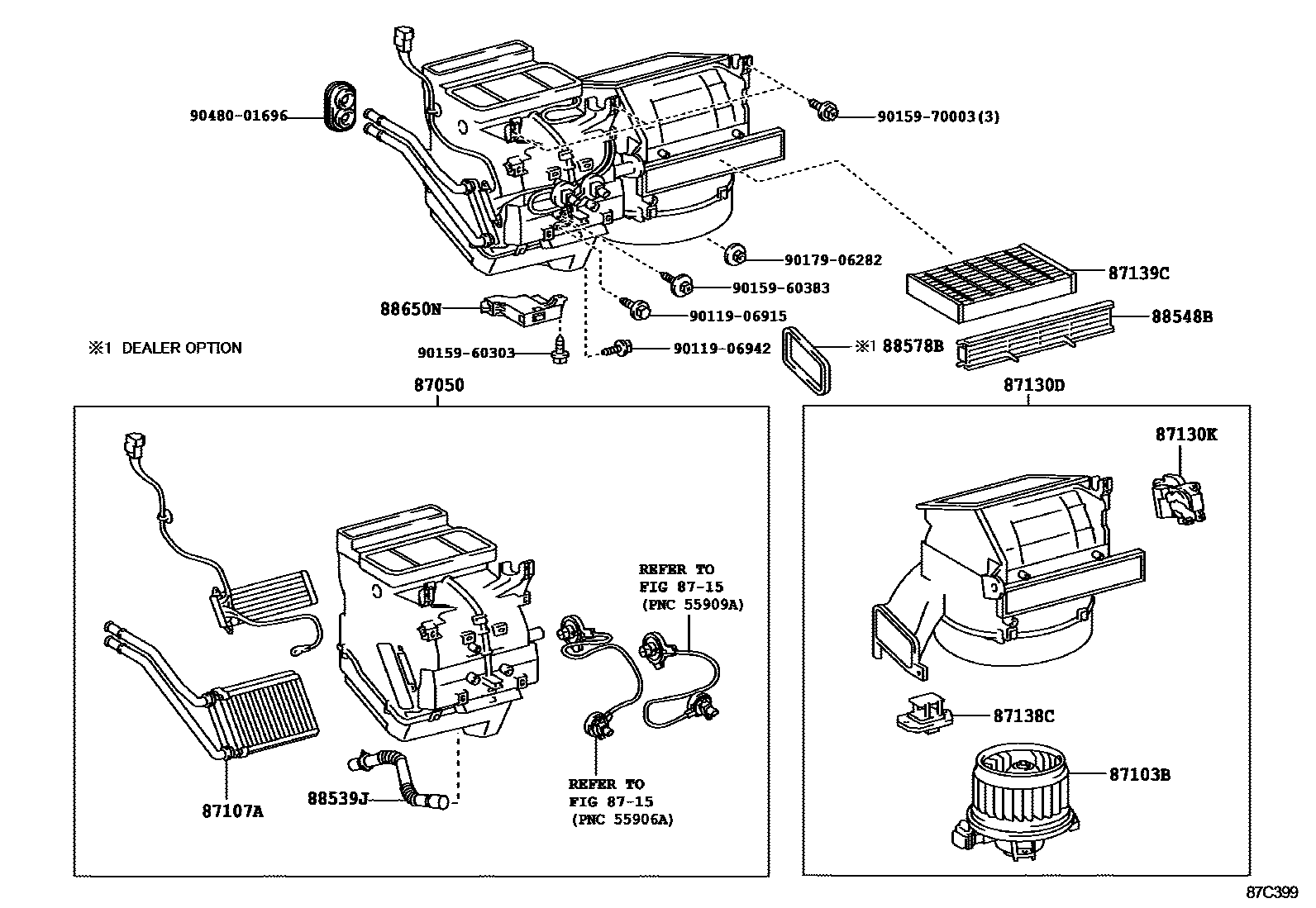

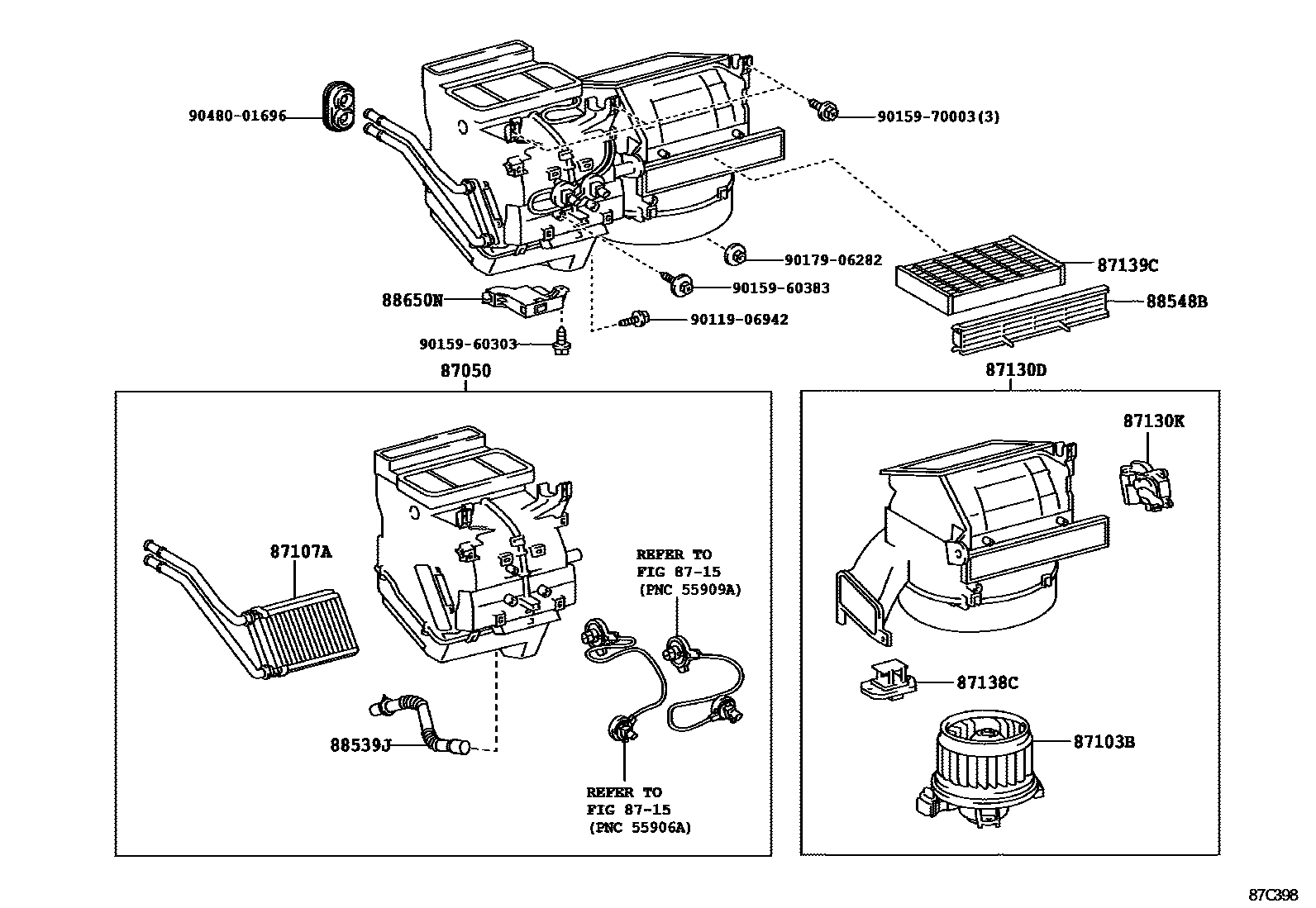

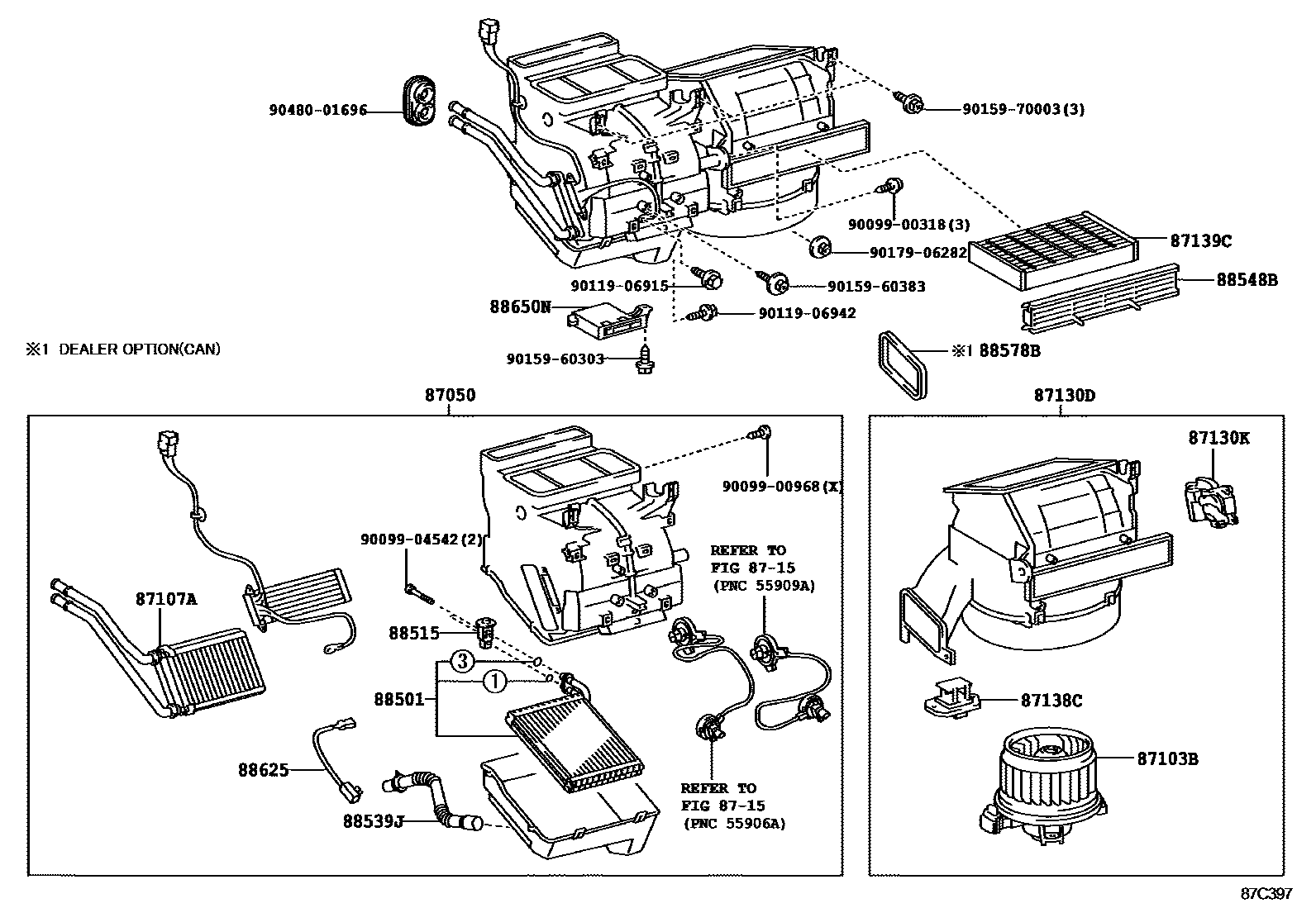

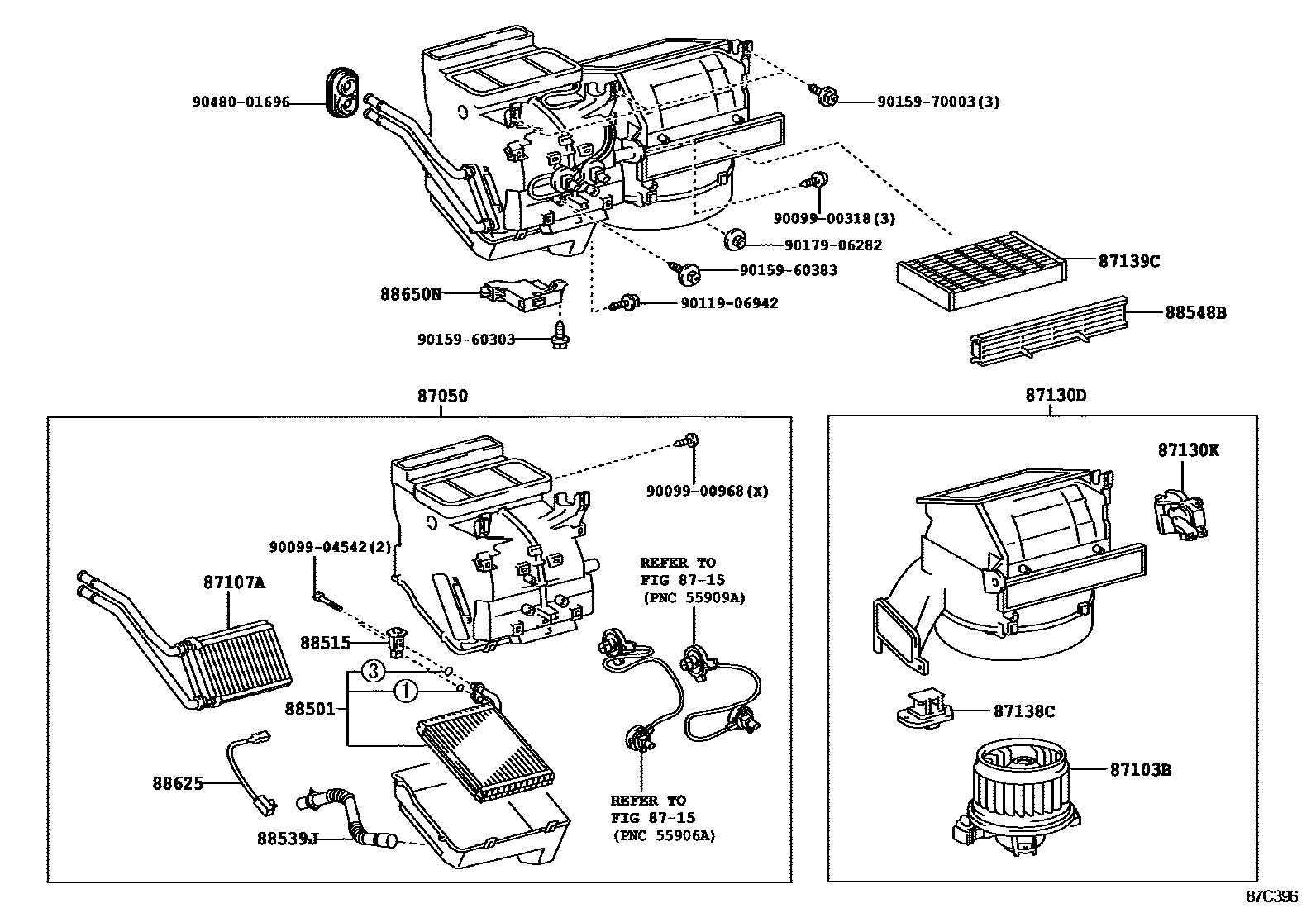

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-52102 · 87050-52113 · 87050-52270 · 87050-52280 |
| 87103B | Blower motor sub-assembly with fan | 87103-52180 |
| 87107A | Heater radiator device sub-assembly | 87107-52061 |
| 87130D | Blower assembly | 87130-52140 · 87130-52150 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-52110 |
| 87138C | Blower resistor | 87138-52030 |
| 87139C | air purification filter | 87139-30040 · 87139-50100 · 87139-52020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-52102 · 88501-52103 |
| 88515 | Cooler expansion valve | 88515-50190 |
| 88539J | Cooler drain hose | 88539-52040 |
| 88548B | air filter housing | 88548-52040 |
| 88578B | Cooling unit seal No. 1 | 88578-52100 |
| 88625 | Cooler No. 1 Thermistor | 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-52680 · 88650-52690 · 88650-52700 · 88650-52720 · 88650-52880 |
