Toyota YARIS 后视镜 — Figure 8701

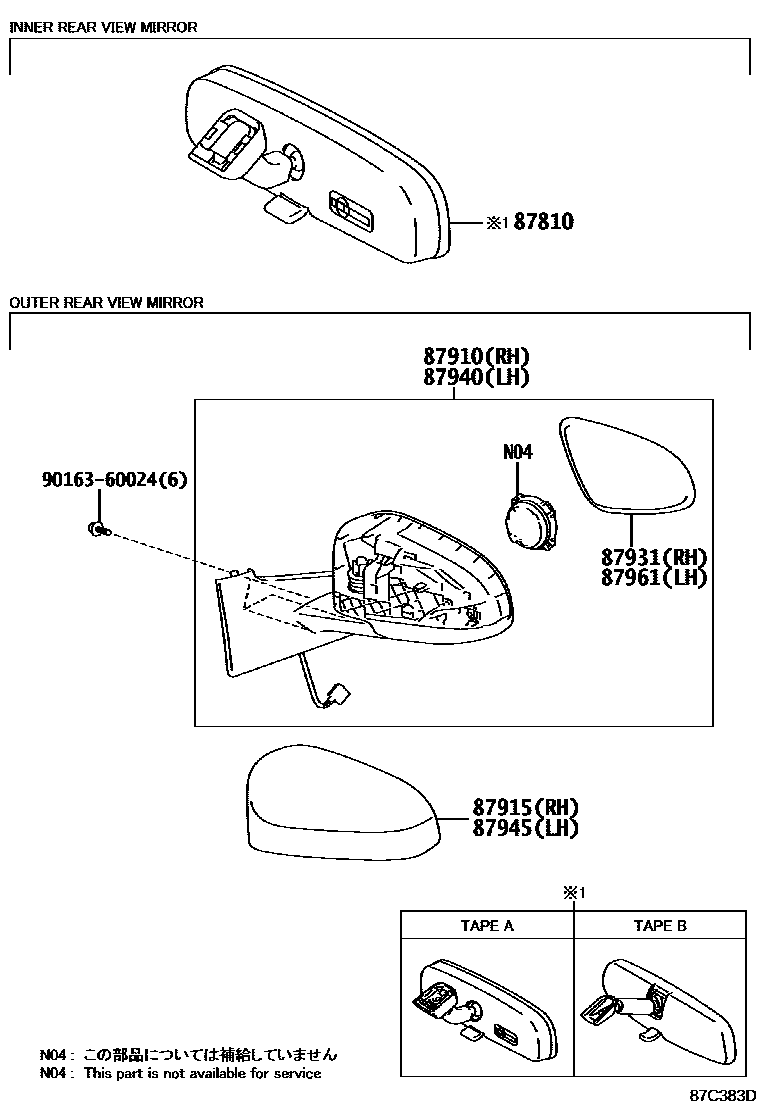

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52041 · 87810-AA011 |
| 87910 | Right exterior rearview mirror assembly | 87910-52C10 · 87910-52C70 · 87910-52C80 |
| 87915 | Right exterior rearview mirror cover | 87915-52130 |
| 87931 | Right exterior rearview mirror | 87931-52C10 · 87931-52C70 |
| 87940 | Left exterior rearview mirror assembly | 87940-52B90 · 87940-52C50 · 87940-52C60 |
| 87945 | Left exterior rearview mirror cap | 87945-52130 |
| 87961 | Left exterior rearview mirror | 87961-52B90 · 87961-52C50 |
