Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.

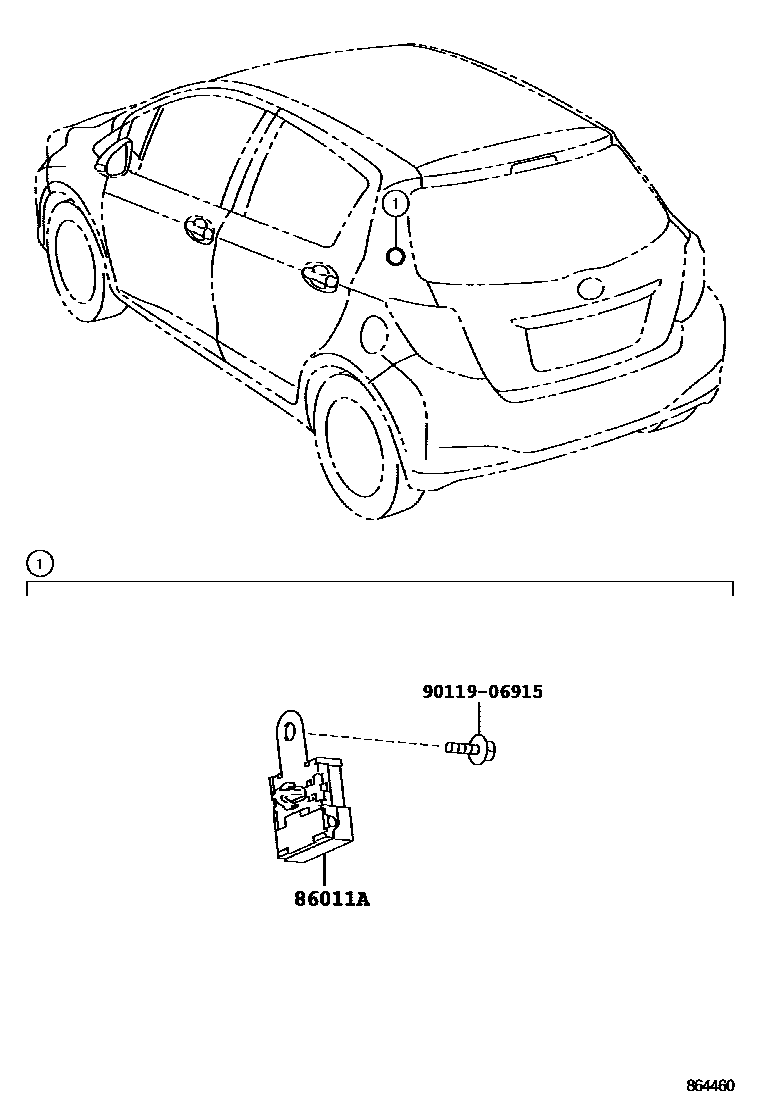

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 864460
收音机、放大器和冷凝器 — 864460 (201108 – 999999)

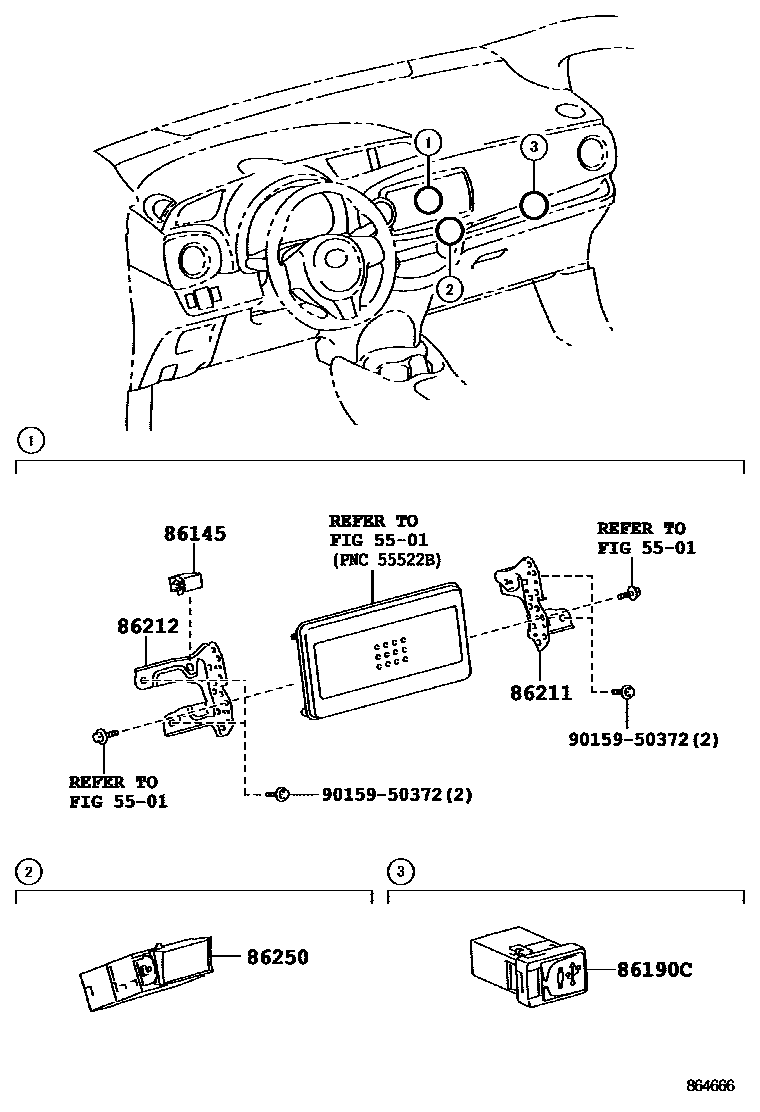

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 864666
收音机、放大器和冷凝器 — 864666 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04189
86145Antenna connector86145-52010
86190CStereo socket connector assembly No. 186190-52060
86211No. 1 radio bracket86211-52250
86212No. 2 radio bracket86212-52180
86250amplifier loudspeaker assembly86250-52070
