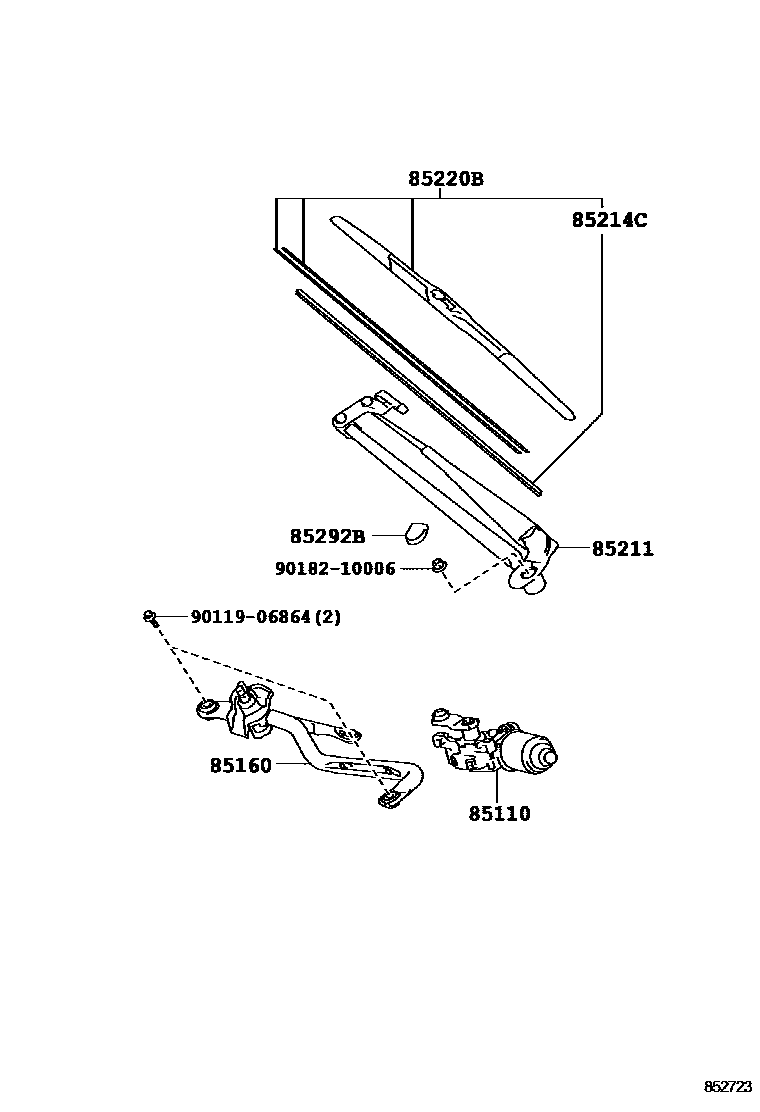

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-52620 |
| 85160 | Windshield wiper connecting rod assembly | 85150-52510 |
| 85211 | front wiper arm | 85221-52370 · 85221-52371 · 85221-52480 |
| 85214C | Central wiper blade rubber strip | 85214-52090 · 85214-58030 |
| 85220B | front wiper blade | 85222-52210 · 85222-52211 · 85222-52212 |
| 85292B | Front wiper arm cap | 85292-13010 · 85292-52070 |
