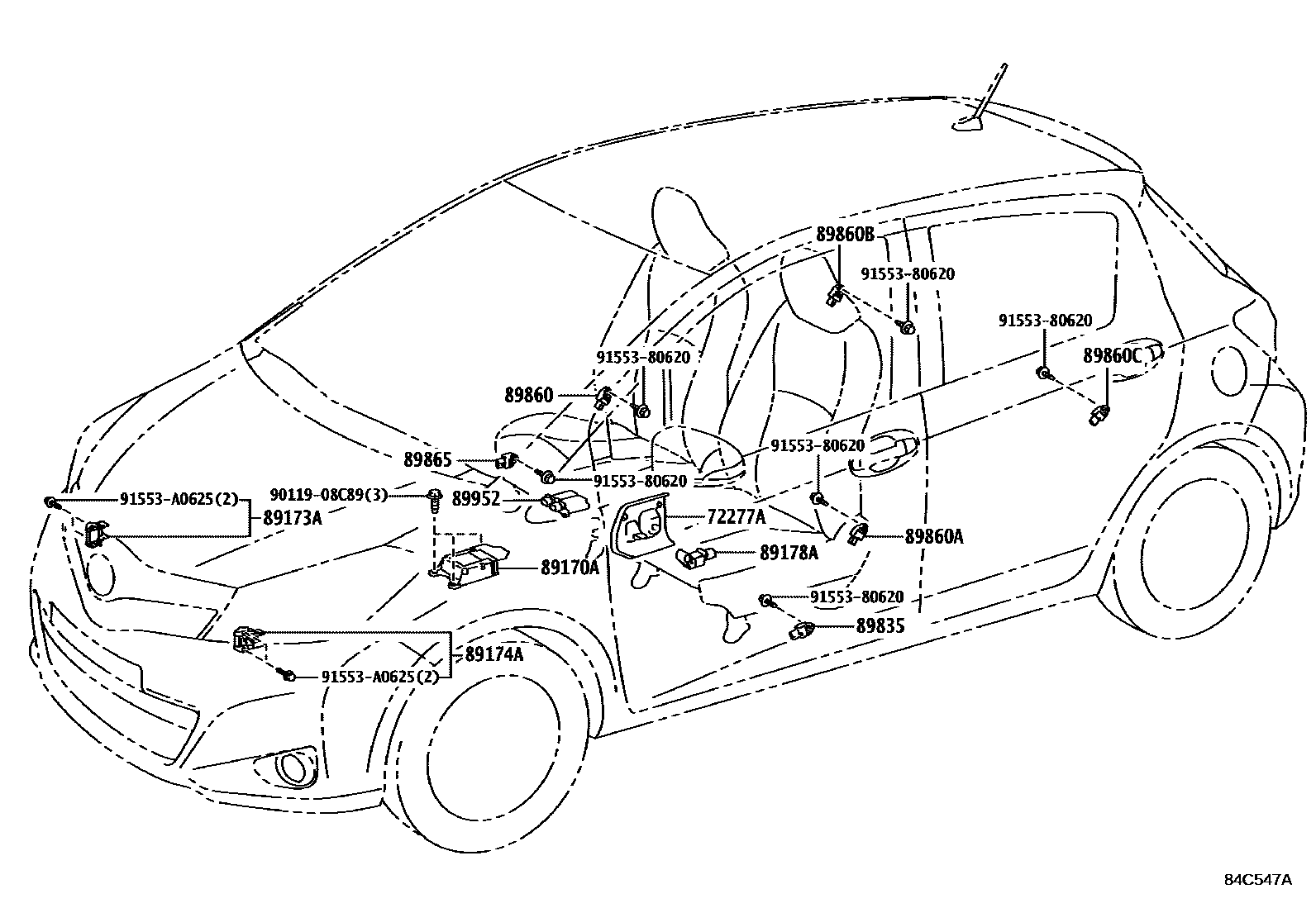

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-52010 |
| 89170A | Air bag ECU assembly | 89170-52G40 · 89170-52G41 · 89170-52G42 · 89170-52G50 · 89170-52G51 · 89170-52G52 · 89170-52G60 · 89170-52G61 · 89170-52M00 · 89170-52M10 · 89170-52M20 |
| 89173A | Right front air bag sensor | 89173-39375 · 89173-59275 |
| 89174A | Left front air bag sensor | 89173-39375 · 89173-59275 |
| 89178A | Seat position air bag sensor | 89178-33050 |
| 89835 | Left door side air bag sensor | 89831-48020 · 89831-52040 |
| 89860 | Right side airbag sensor assembly | 89831-52020 · 89831-52090 |
| 89860A | Left side air bag sensor assembly | 89831-52020 · 89831-52090 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-52020 · 89831-52090 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-52020 · 89831-52090 |
| 89865 | Right door side air bag sensor | 89831-48020 · 89831-52040 |
| 89952 | Occupant detection ECU | 89952-52010 · 89952-52011 |
