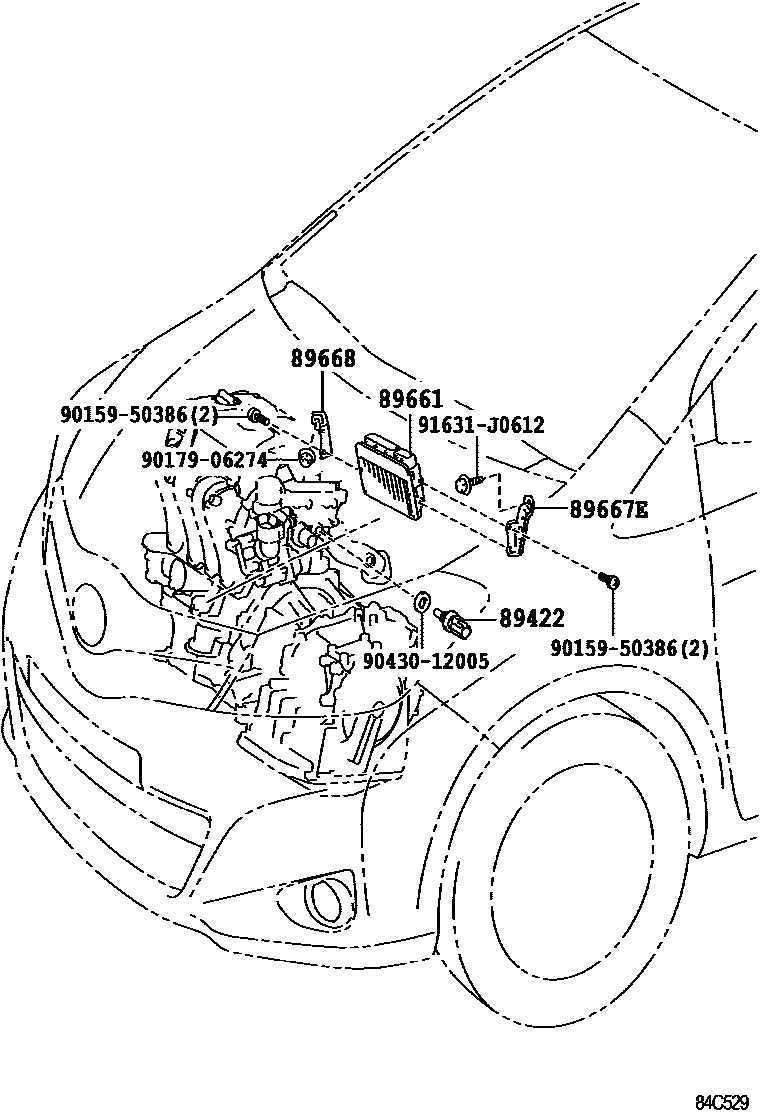

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89661-52R30 · 89661-52R31 · 89661-52R40 · 89661-52R41 · 89661-52R50 · 89661-52R60 · 89661-52R70 |
| 89667E | No. 1 engine control ECU bracket | 89667-52330 |
| 89668 | No. 2 engine control ECU bracket | 89668-52340 |
