Toyota YARIS 开关和继电器和ECU — Figure 8401

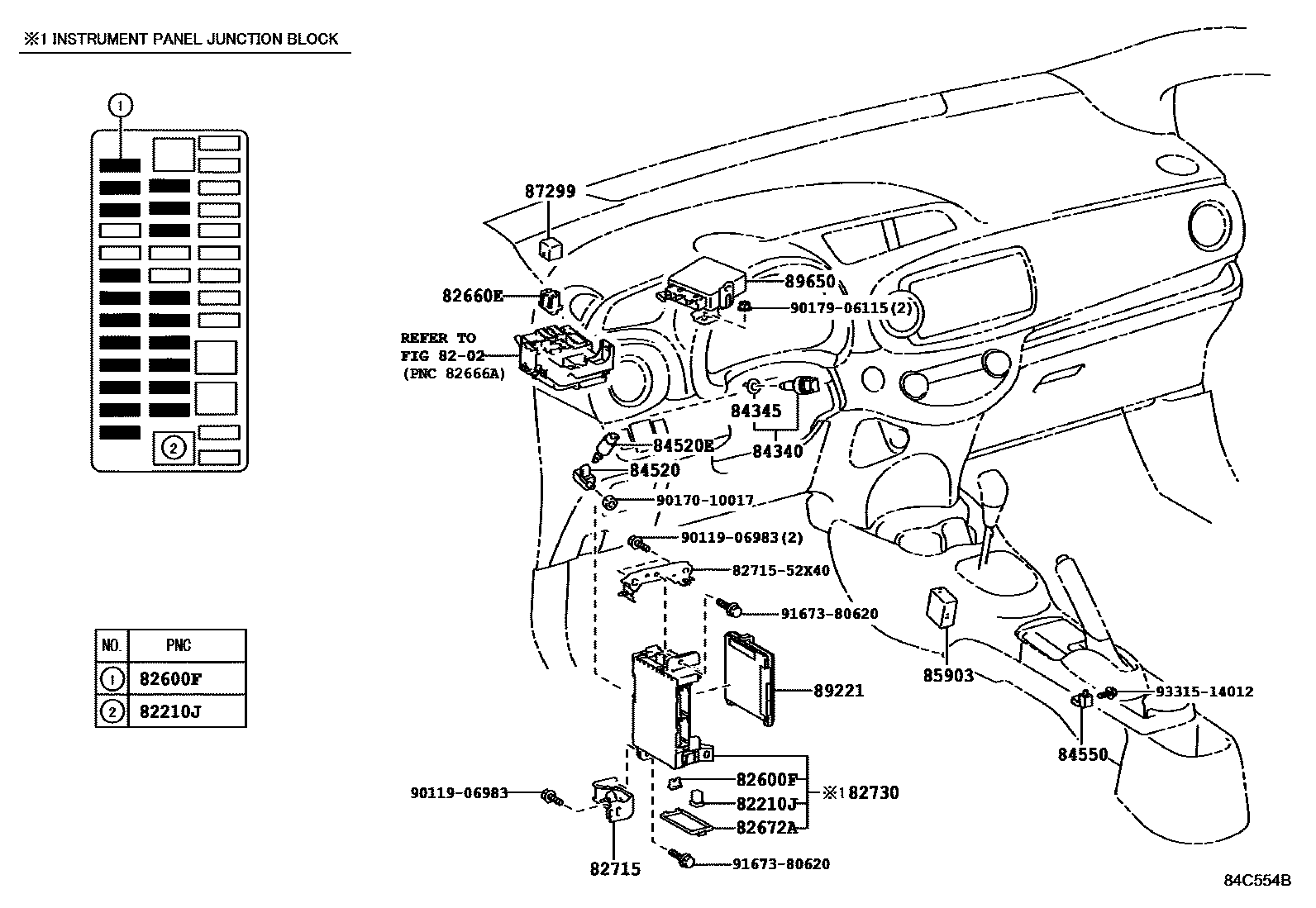

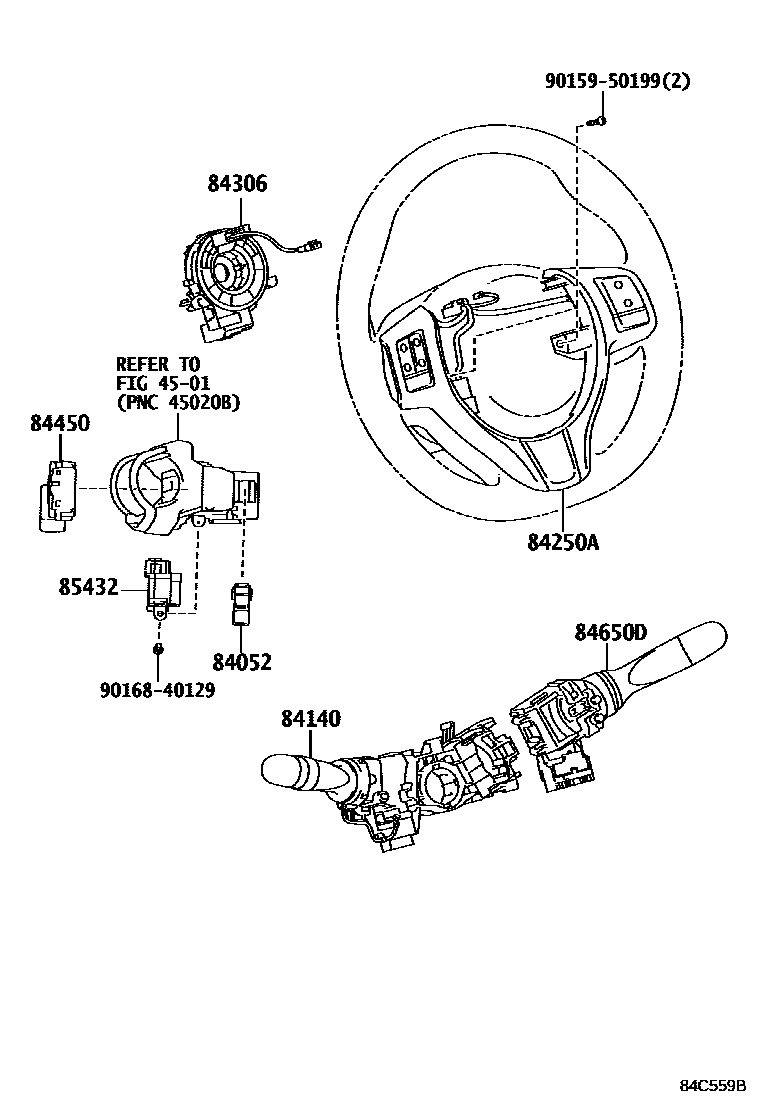

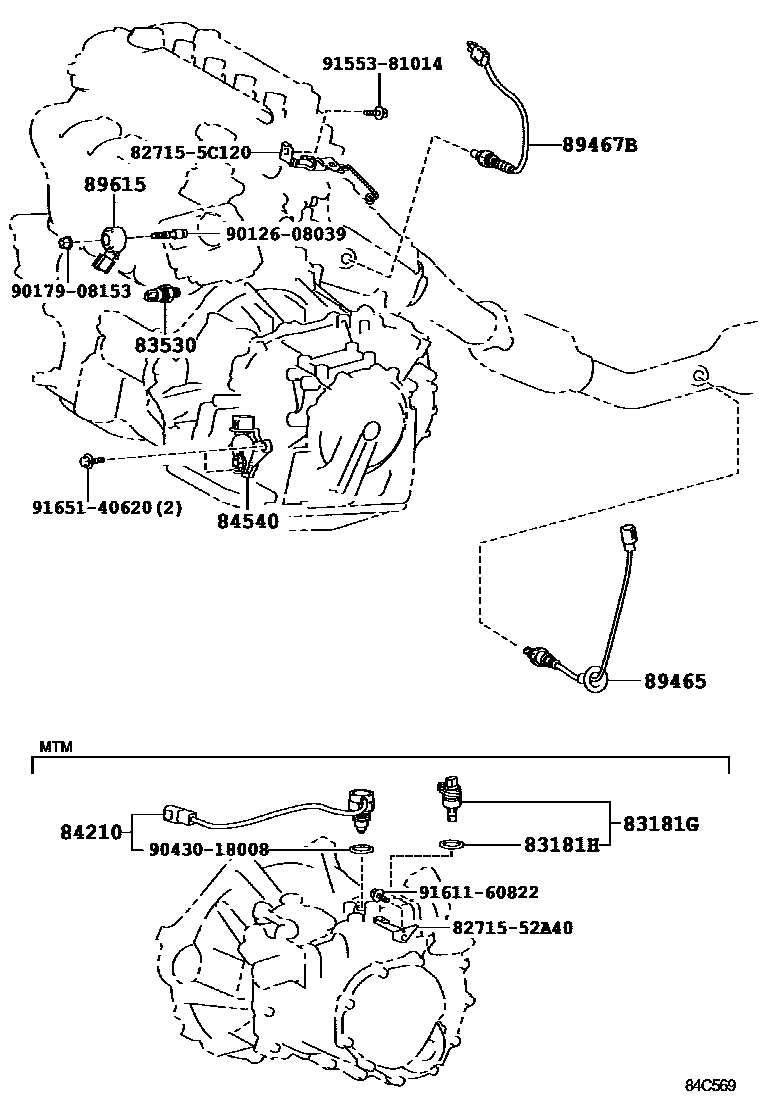

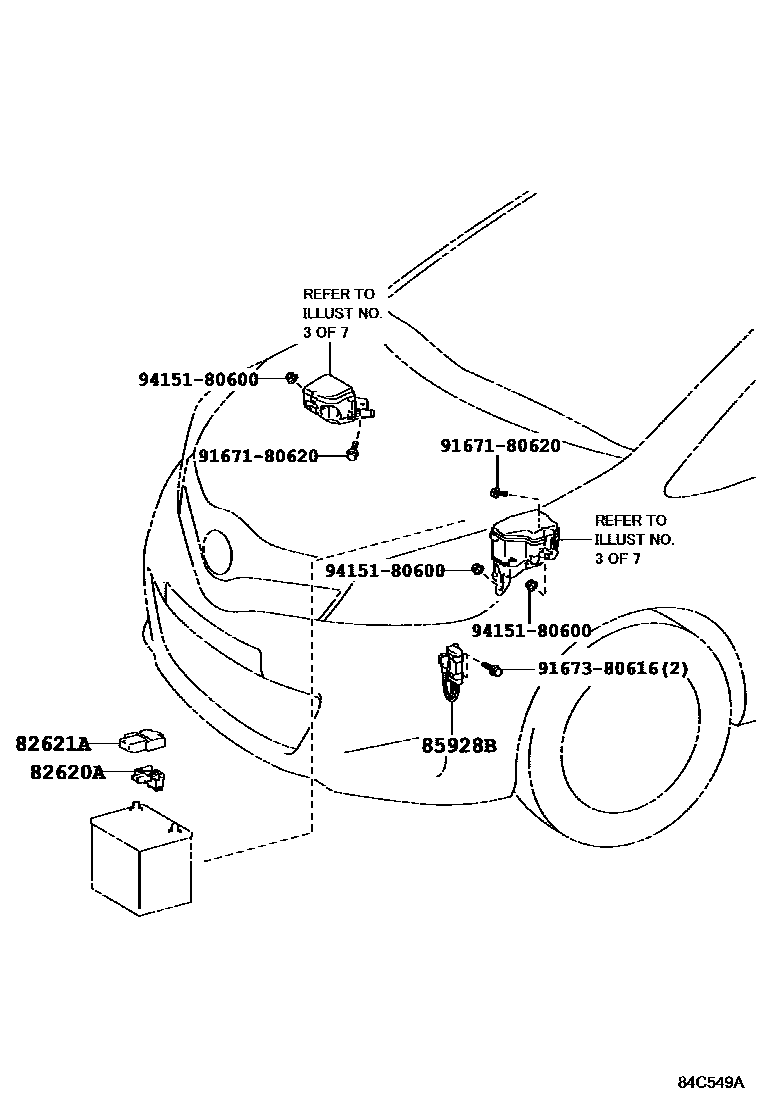

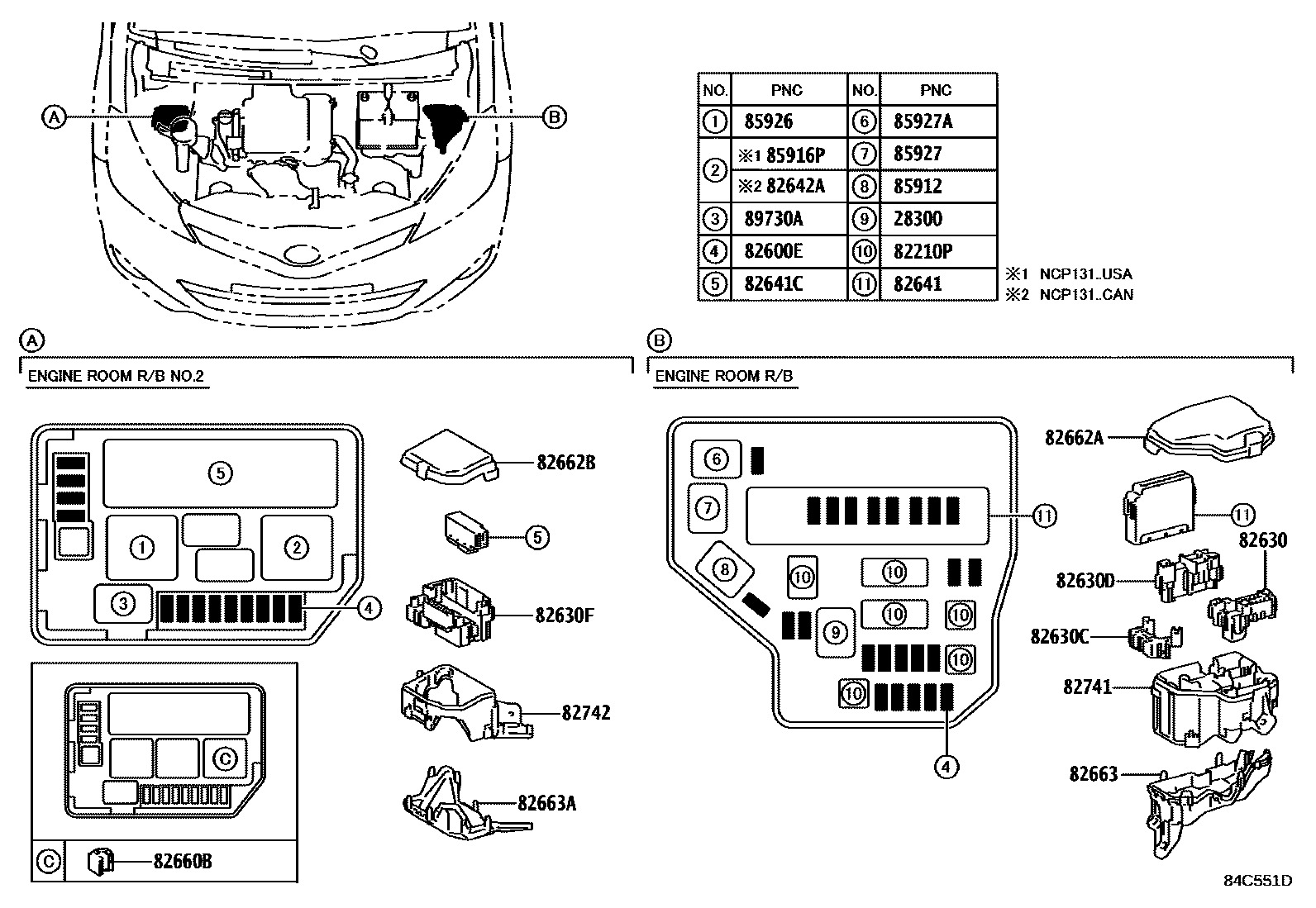

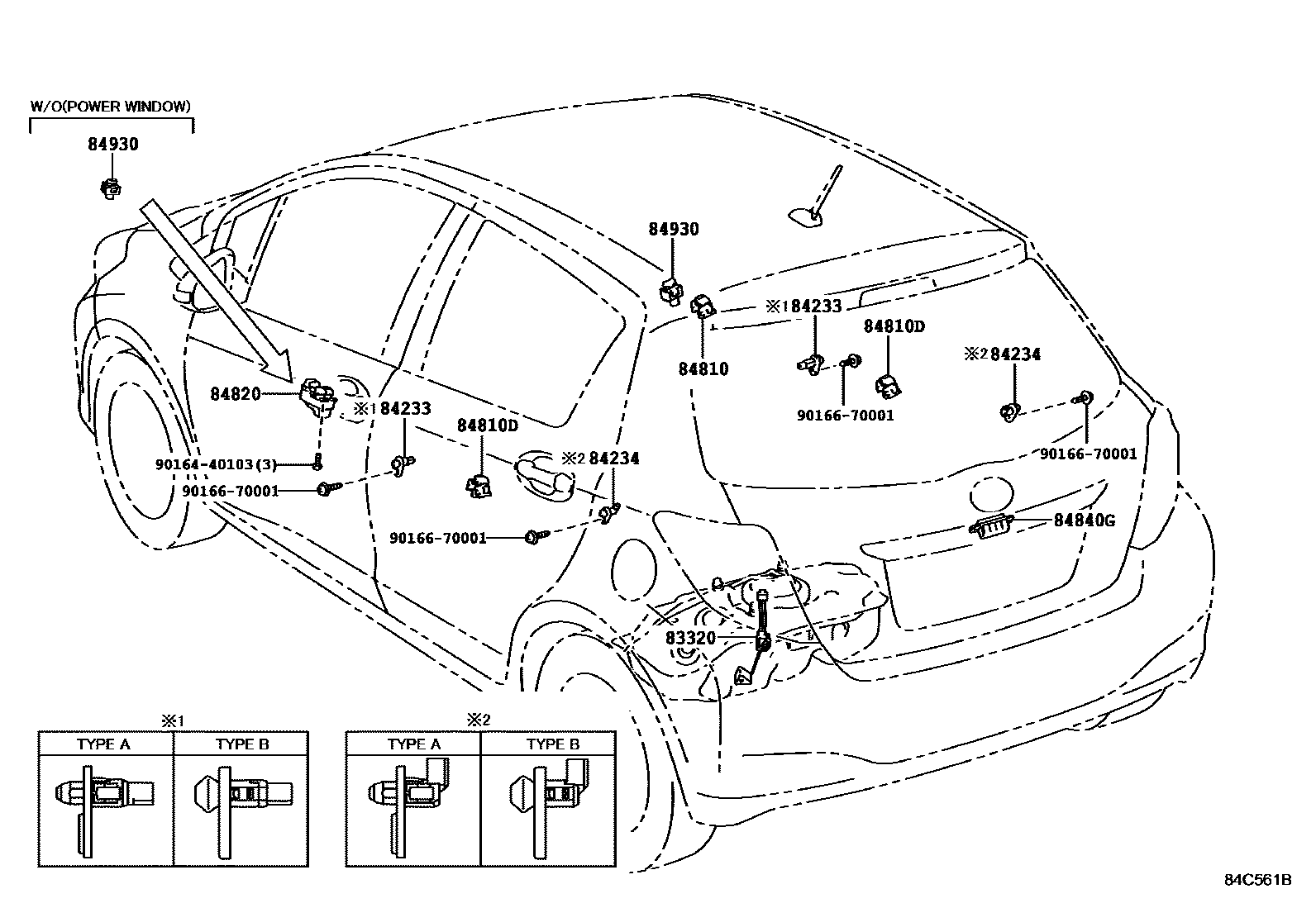

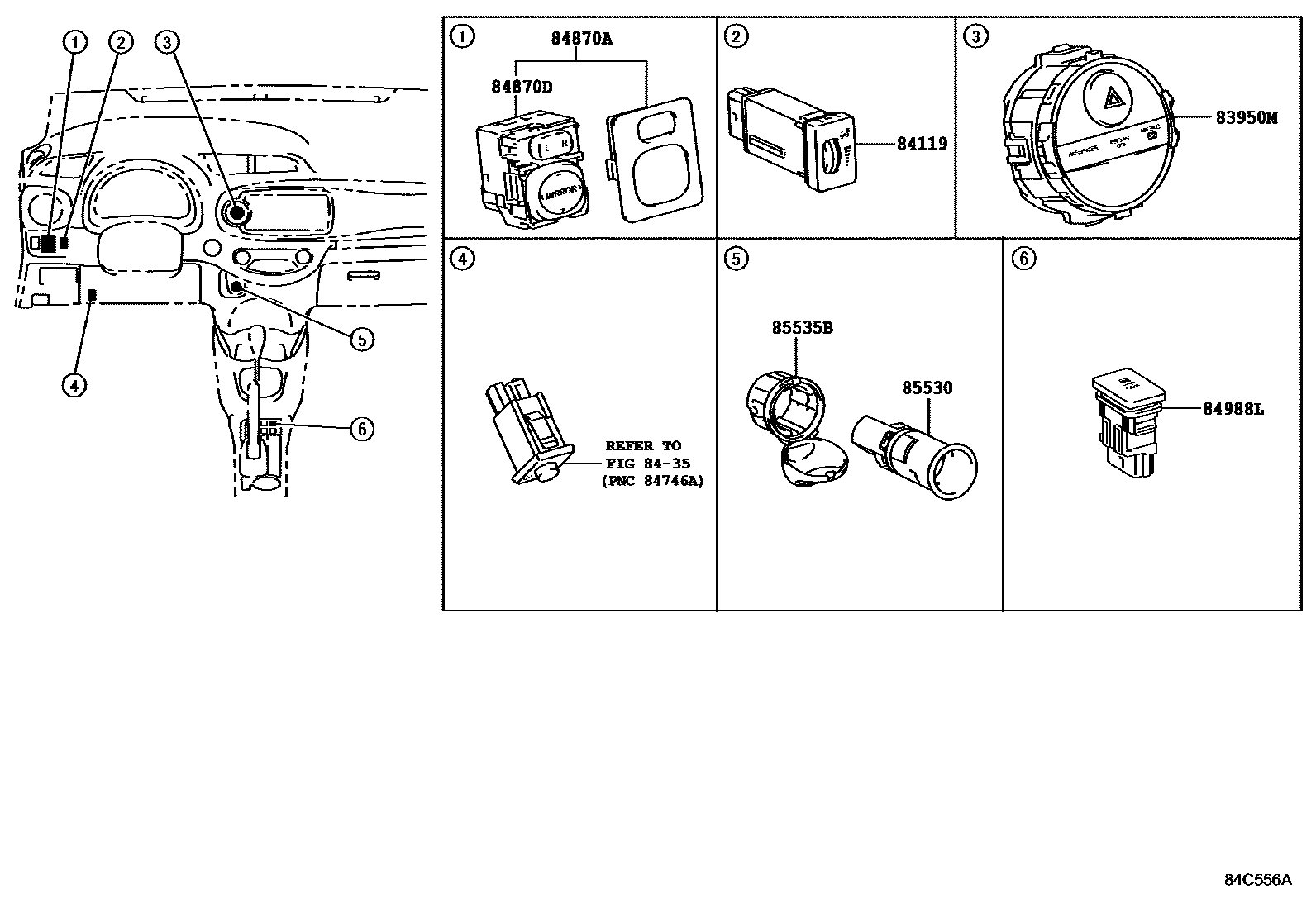

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 7 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 82210J | fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08296 · 90982-08300 · 90982-08305 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09024 |
| 82620A | Fuse box assembly | 82620-52070 |
| 82621A | Fuse cover | 82621-52140 |
| 82630 | Fuse holder assembly | 82631-52010 |
| 82630C | Fuse holder assembly | 82631-52020 |
| 82630D | fuse holder | 82631-52030 |
| 82630F | fuse holder | 82631-52040 |
| 82641 | Integrated relay No. 1 | 82641-52020 |
| 82641C | Integrated relay No. 2 | 82641-52060 |
| 82642A | driving light relay | 82642-52030 |
| 82660B | Relay assembly | 82660-0H070 · 82660-52130 |
| 82660E | Relay assembly | 82660-52100 |
| 82662A | No. 1 relay box upper cover | 82662-52750 |
| 82662B | No. 2 relay box upper cover | 82662-52660 · 82662-52661 |
| 82663 | Relay box lower cover | 82663-52080 |
| 82663A | No. 2 relay box lower cover | 82663-52090 |
| 82672A | Junction box cover | 82672-52030 |
| 82715 | Wire harness clamp bracket | 82715-52X50 |
| 82730 | Instrument panel junction box assembly | 82730-52M60 |
| 82741 | Engine room relay box | 82741-52070 |
| 82742 | Engine room No. 2 relay box | 82741-52080 |
| 83181G | speedometer sensor | 83181-12020 |
| 83181H | O-ring (for speedometer sensor) | 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-52260 · 83320-52261 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-52220 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-42020 |
| 84140 | Headlight dimmer switch assembly | 84140-47130 · 84140-47140 · 84140-47151 · 84140-47161 · 84140-52220 · 84140-52230 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 · 84231-53010 |
| 84306 | Spiral cable sub-assembly | 84306-22010 · 84306-48030 · 84307-47020 · 84307-60020 |
| 84340 | brake light switch assembly | 84340-19025 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52020 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 88280-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-12B30 · 84652-52201 · 84652-52230 · 84652-52300 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-21050 · 84820-52470 |
| 84840G | Back door opener switch assembly | 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-52030 |
| 84930 | Door control switch assembly | 84930-12250 |
| 84988L | VSC off switch | 84988-52080 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85535B | No. 1 power outlet cover | 85535-52051 |
| 85903 | Shift lock control ECU sub-assembly | 85903-52030 |
| 85912 | defogger relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-04010 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 |
| 87299 | heater relay | 90987-04010 |
| 89221 | Multi-channel network body ECU | 89220-52330 · 89220-52340 · 89220-52350 · 89220-52360 · 89220-52430 · 89220-52700 |
| 89465 | oxygen sensor | 89465-52480 |
| 89467B | air fuel ratio sensor | 89467-52170 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52750 · 89650-52751 · 89650-52760 · 89650-52761 · 89650-52770 · 89650-52771 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
