Toyota YARIS 车内灯 — Figure 8121

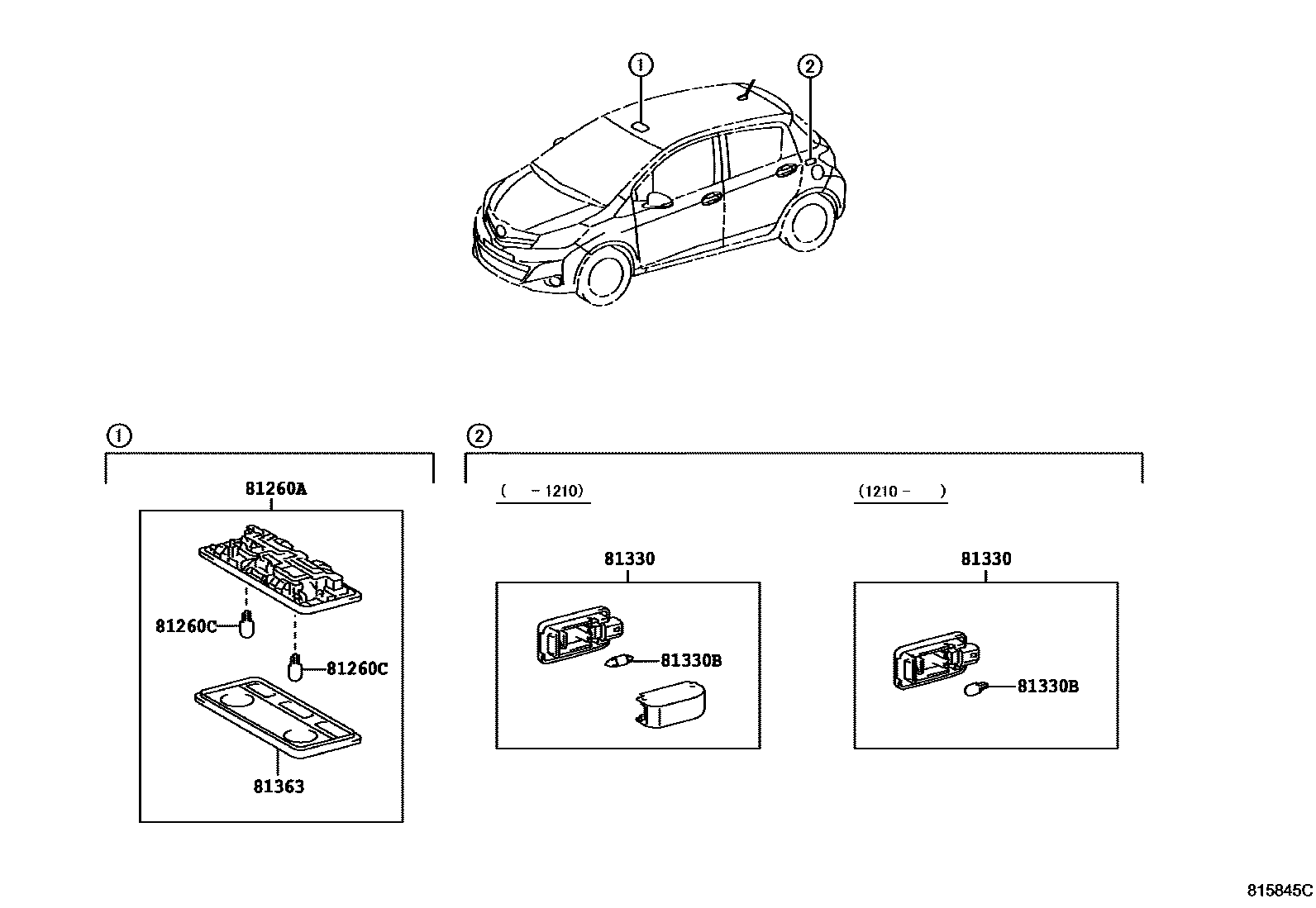

Toyota YARIS EPC diagram 8121, 车内灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81330 | No. 1 trunk light assembly | 81330-05050 · 81330-30100 |
| 81330B | trunk light bulb | 90981-WE003 · 99132-12050 |
| 81363 | Car interior light exterior lampshade | 81363-52010 |
