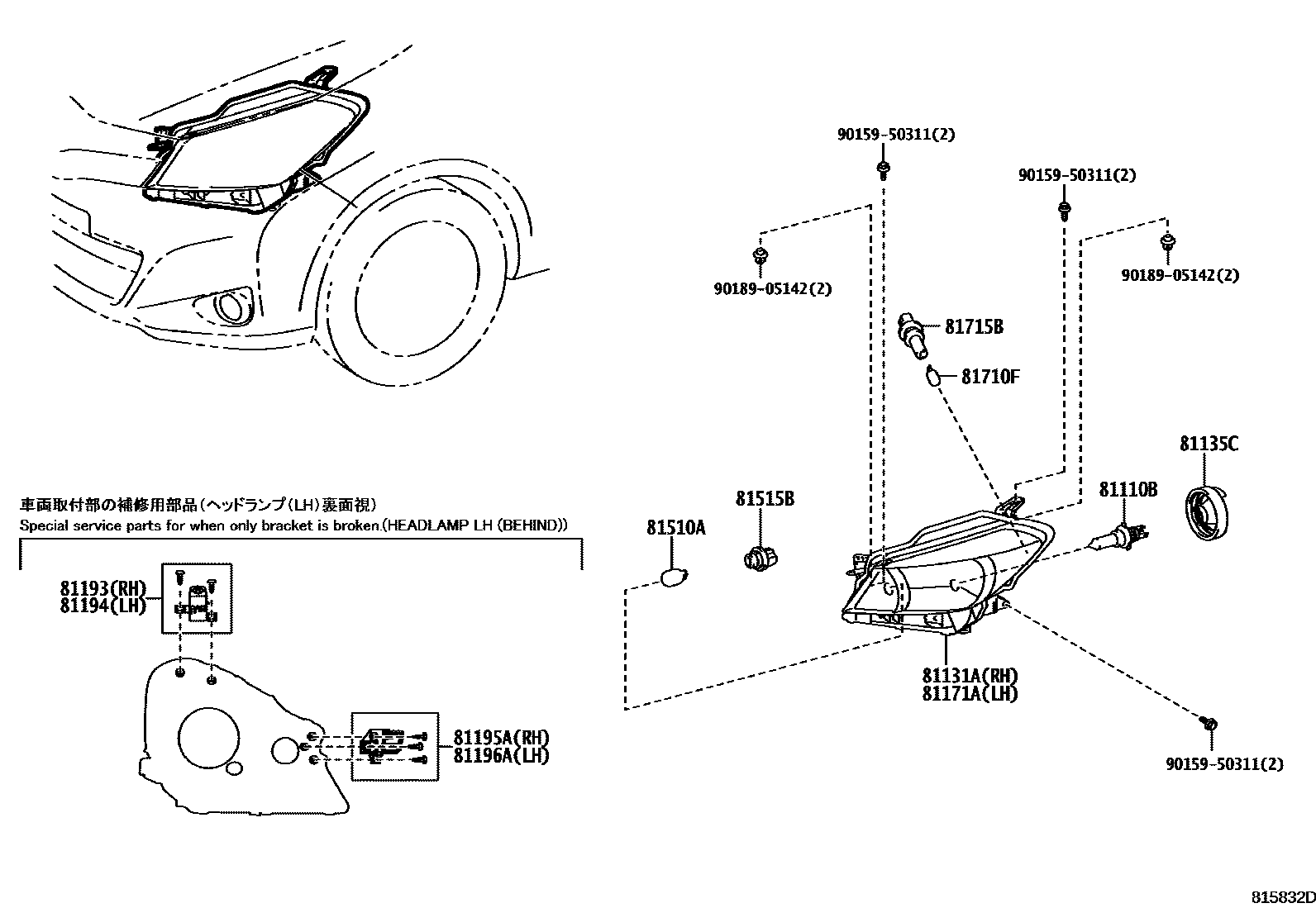

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81131A | Right headlight assembly assembly | 81130-52D30 · 81130-52E20 |
| 81135C | No. 1 headlight rear cover | 90075-65002 |
| 81171A | Left headlight assembly assembly | 81170-52D30 · 81170-52E20 |
| 81193 | Right headlight upper protective ring | 81193-52200 |
| 81194 | Left headlight upper protective ring | 81194-52200 |
| 81195A | Right headlight lower protection ring | 81195-52160 |
| 81196A | Left headlight lower protection ring | 81196-52160 |
| 81510A | AMPOULE, FEU DE DIRECTION AVANT ET FEU DE STATIONNEMENT | 90981-15024 |
| 81515B | Front turn signal lamp holder | 90075-60083 |
| 81710F | Front width light bulb | 99132-12050 |
| 81715B | Front width light lamp holder and wiring harness | 90075-60077 |
