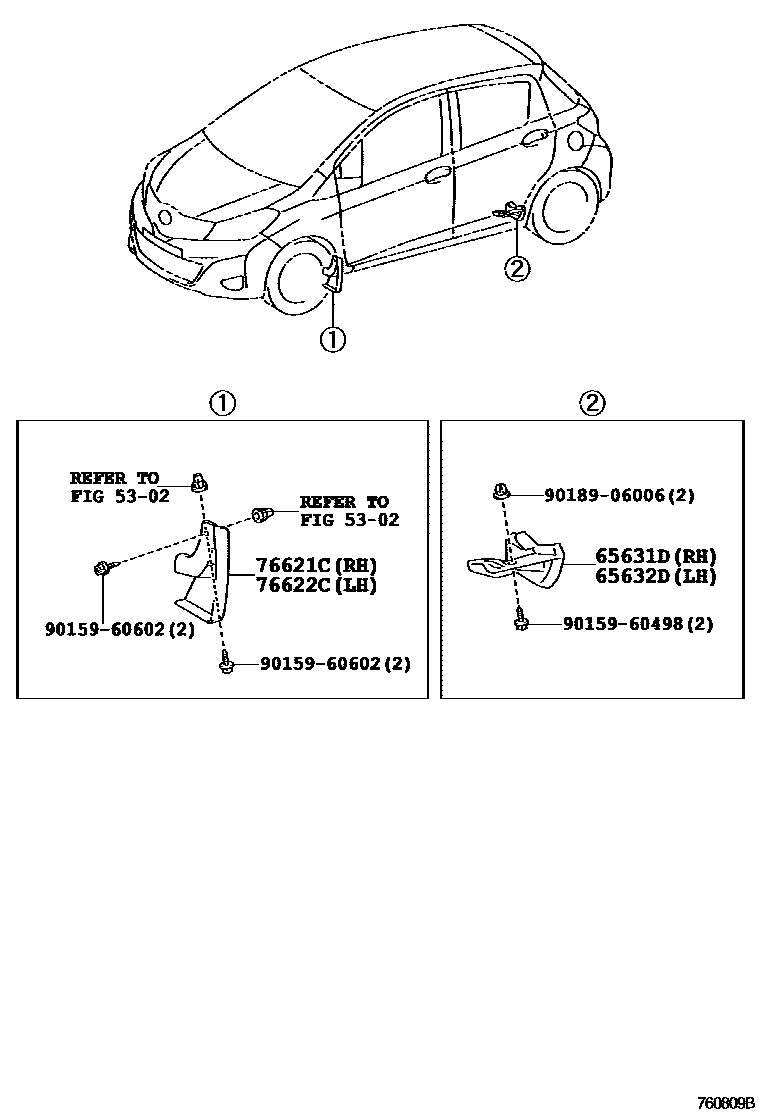

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-52120 |
| 65632D | Left rear wheel house front panel | 65632-52120 |
| 75867B | Door sill panel protective strip clip | 75867-52020 |
| 76621C | Right front fender fender | 76621-52120 |
| 76622C | Left front fender fender | 76622-52120 |
| 76865B | Rear spoiler fixings | 76865-52040 |
| 76924 | No. 2 side fender fixings | 76924-12040 |
| 76927A | Right rear fender protection strip | 76927-52030 |
| 76928A | Left rear fender protection strip | 76927-52030 |
