Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 4 PNC and OE references.

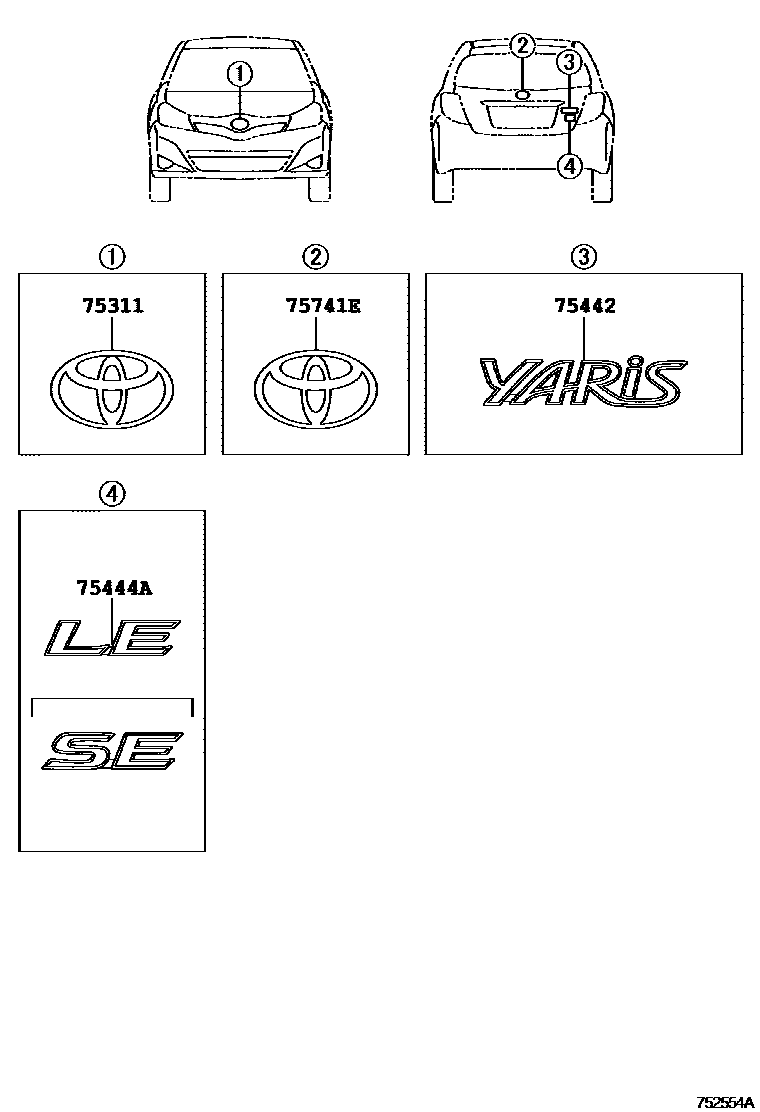

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 752554A
丰田徽标和铭牌(车外和车内) — 752554A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-12A10
75442Trunk door number plate No. 275442-52370
75444ANo. 4 nameplate on back door75443-52210 · 75443-52220
75741Elogo90975-02071
