Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

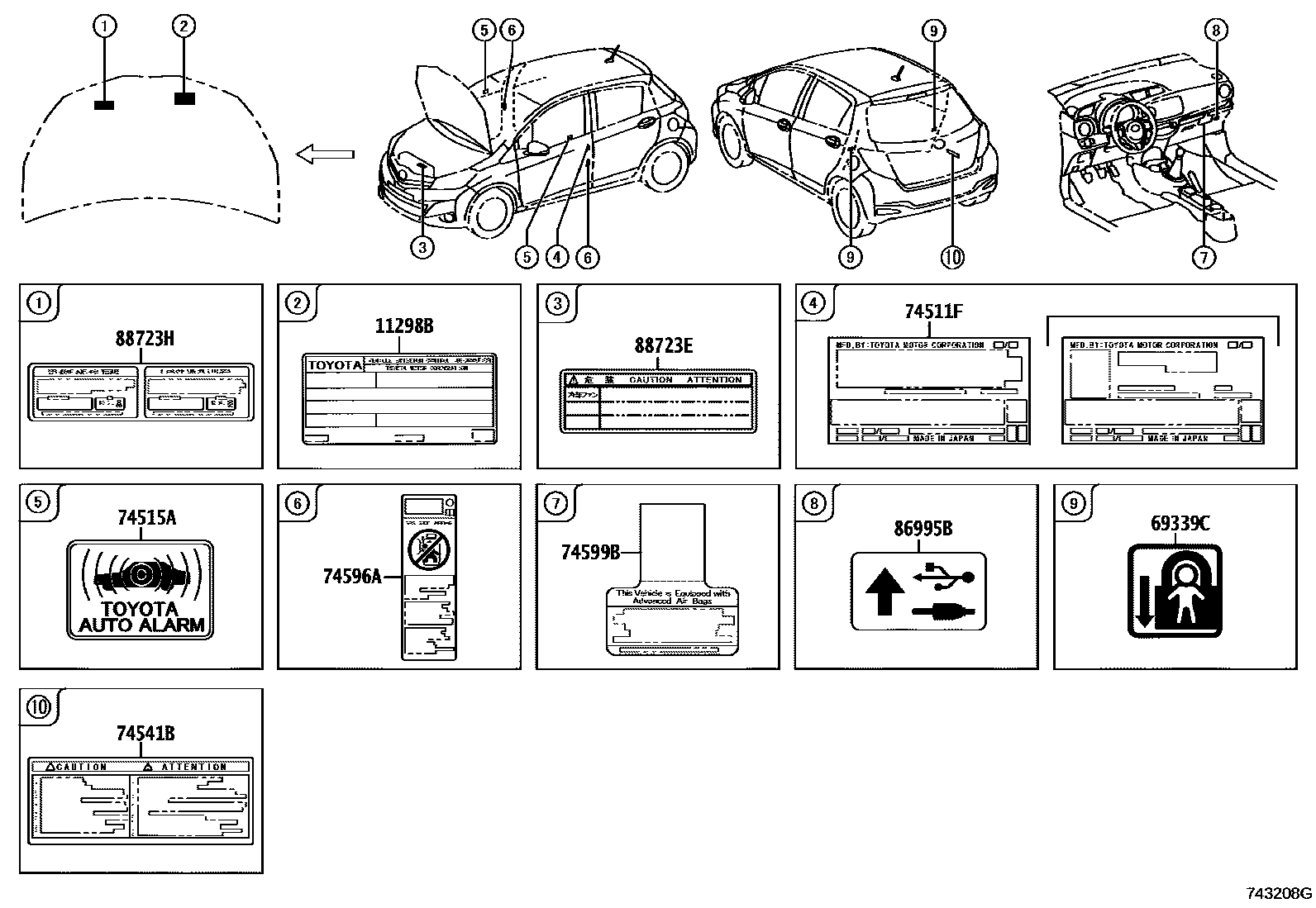

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-21126 · 11298-21190 · 11298-21200 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74514-33010 · 74514-33020 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74541B | Small spare tire warning plate | 42668-14010 · 42668-52020 |
| 74596A | Side air bag warning label | 74596-53010 |
| 74599B | Driver and passenger air bag information labels | 74599-48020 |
| 86995B | warning nameplate | 86995-52010 |
| 88723E | Cooler maintenance warning label | 88723-20081 |
| 88723H | Cooler maintenance warning label | 88723-52060 |
