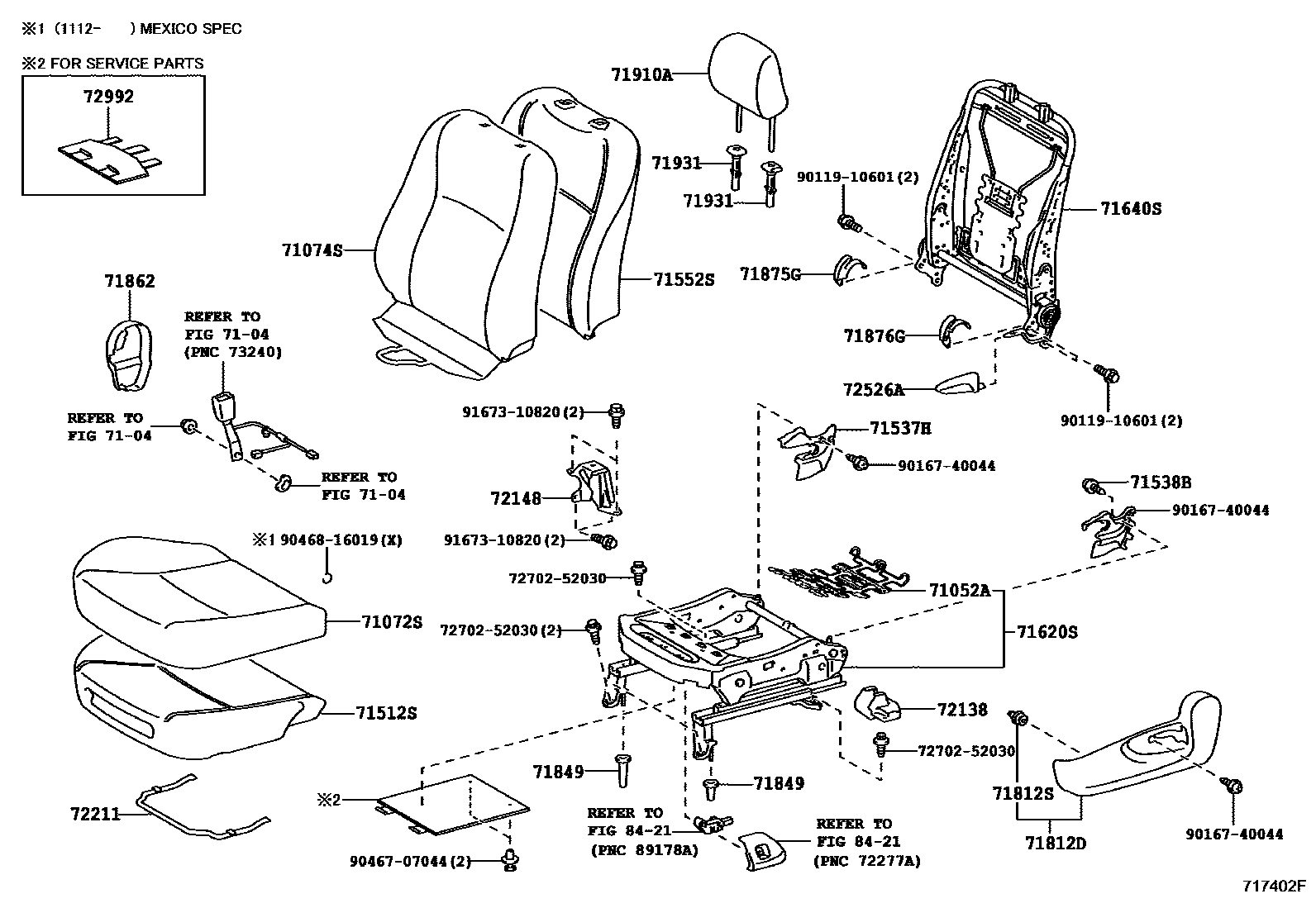

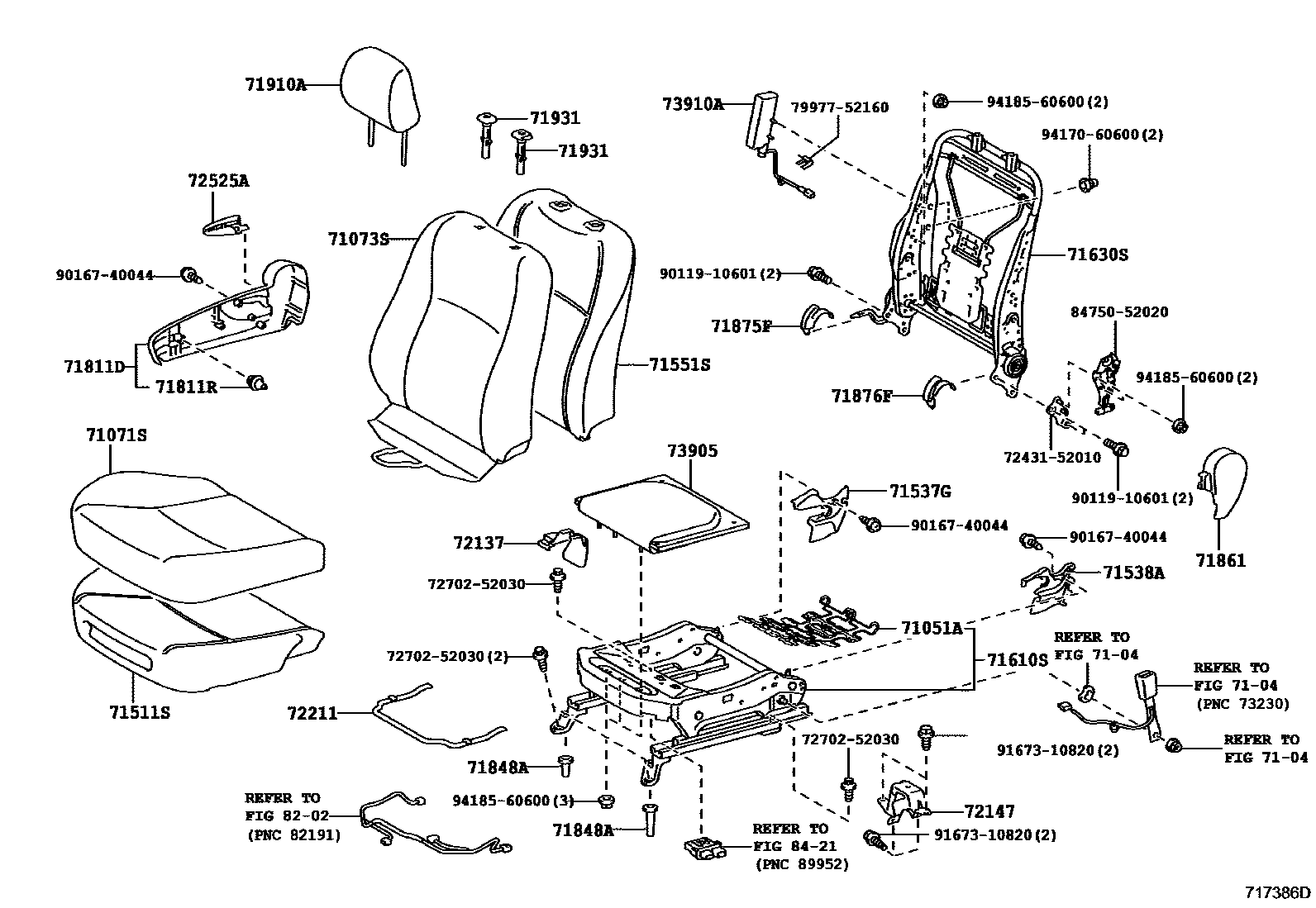

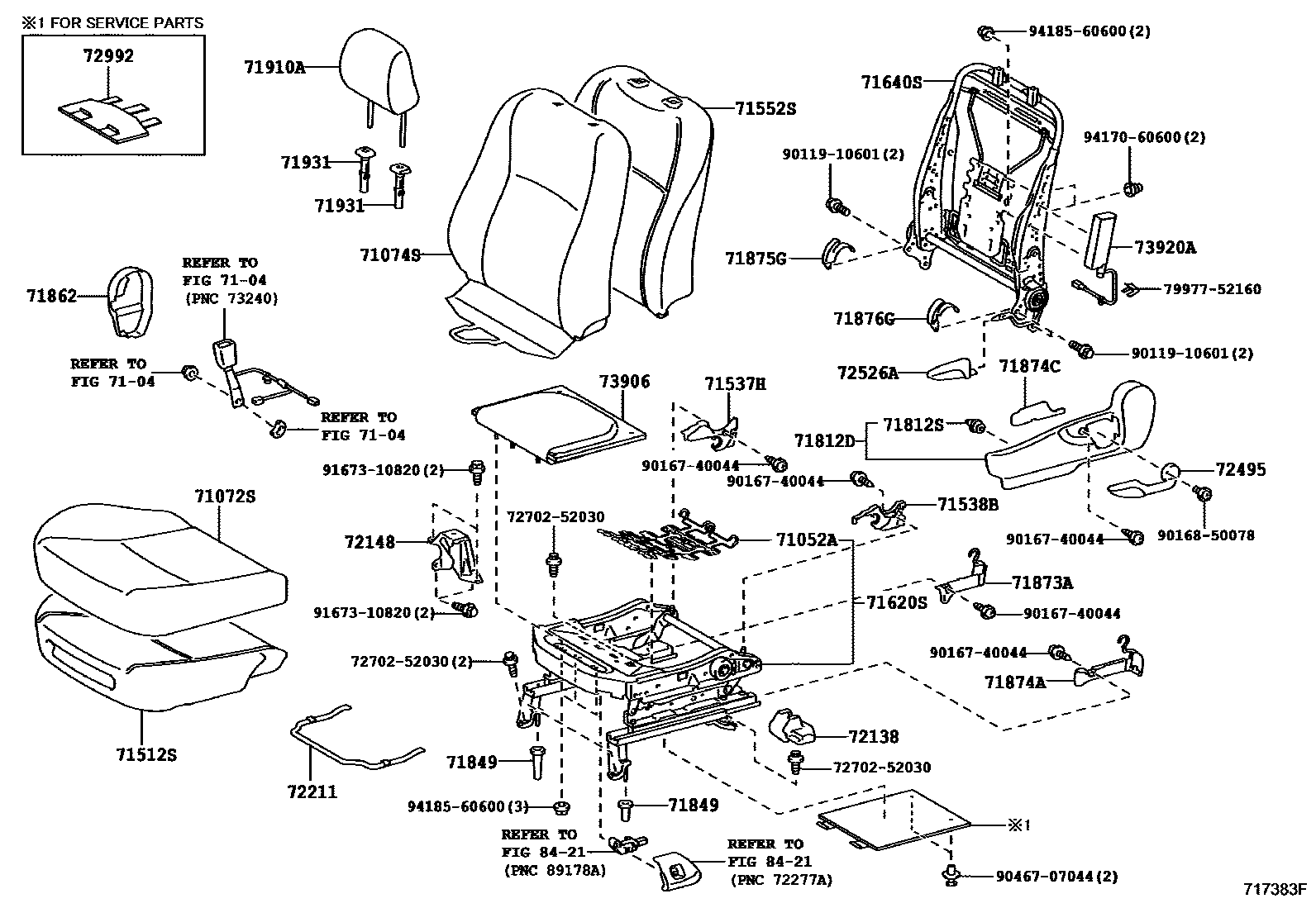

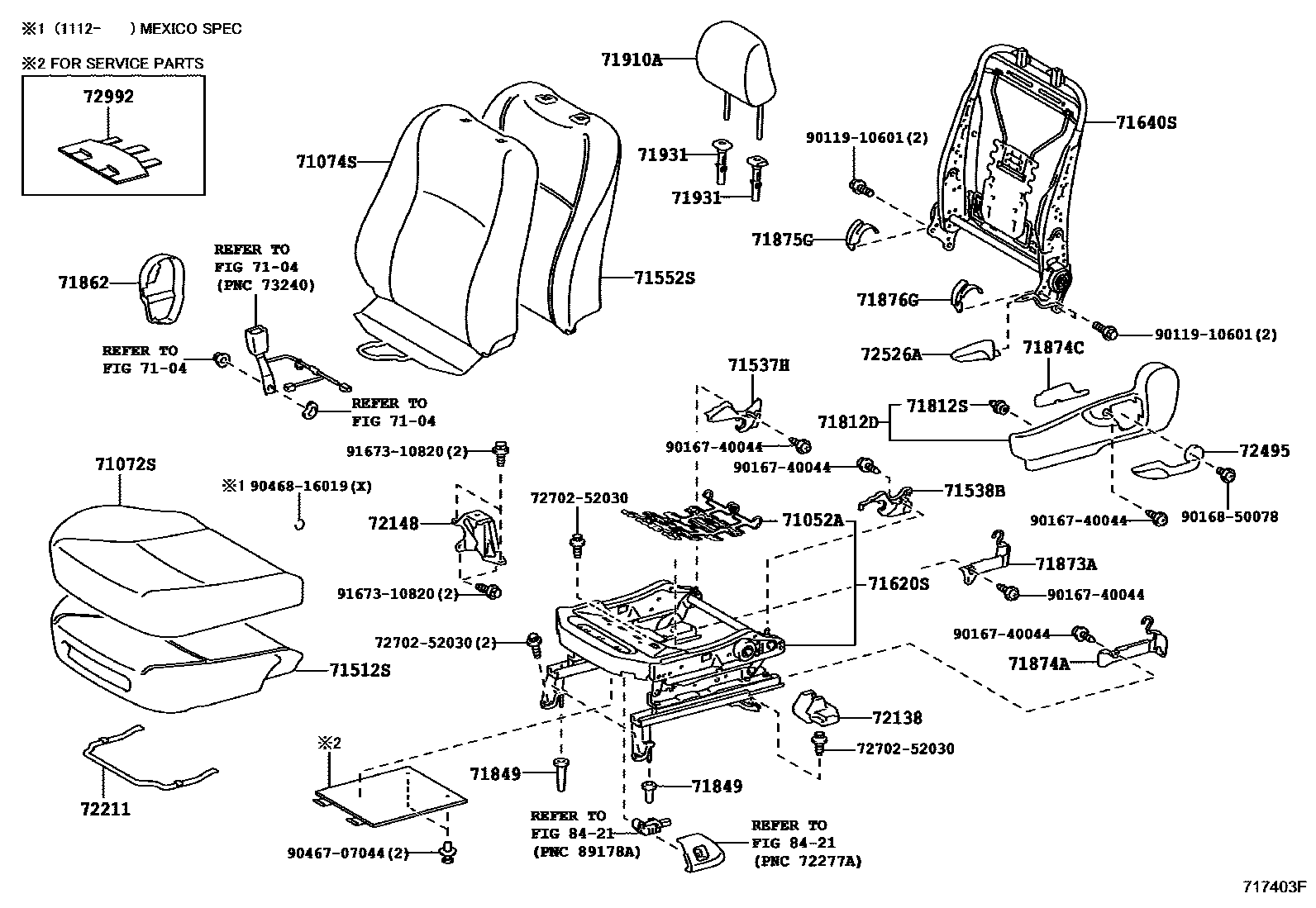

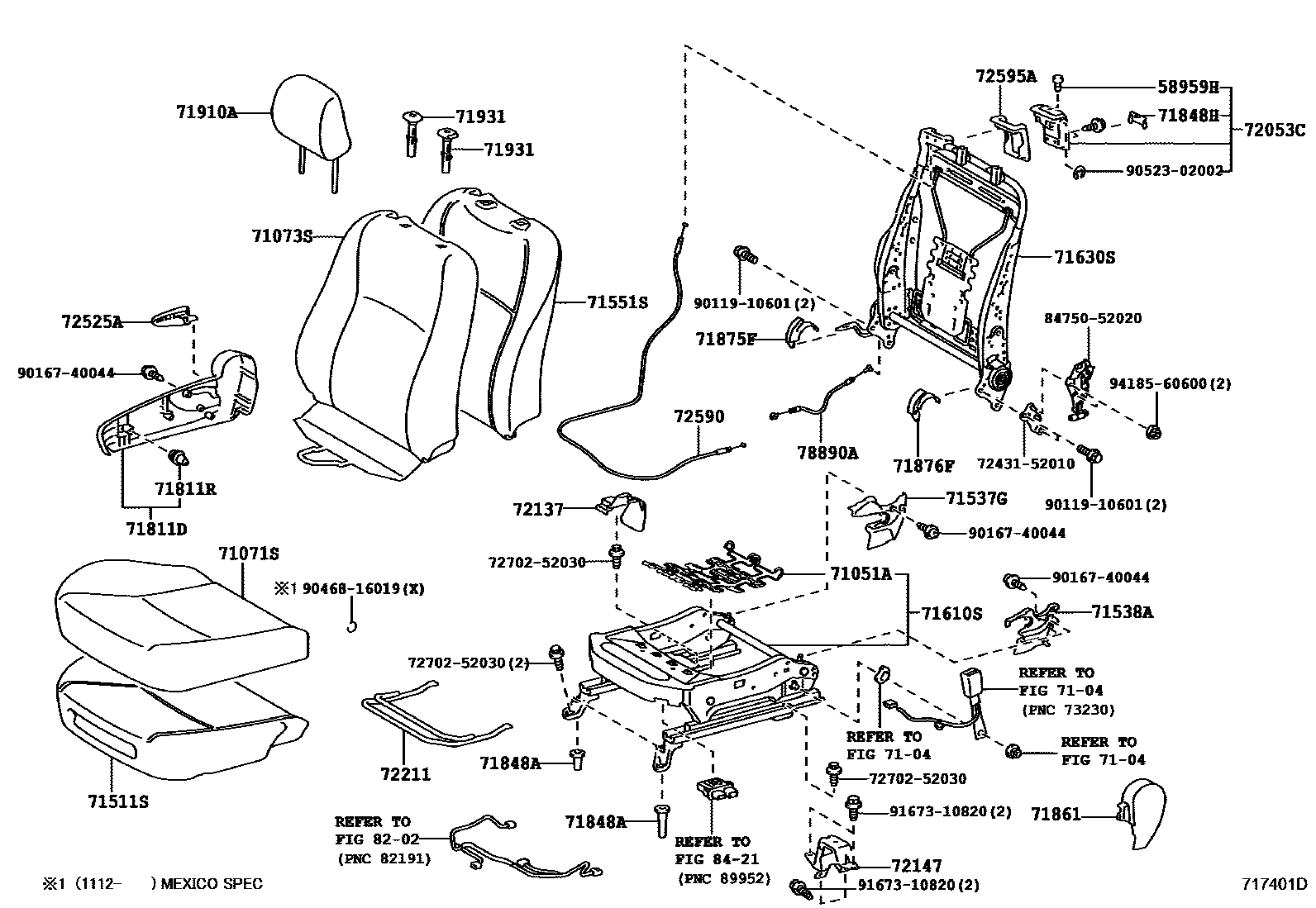

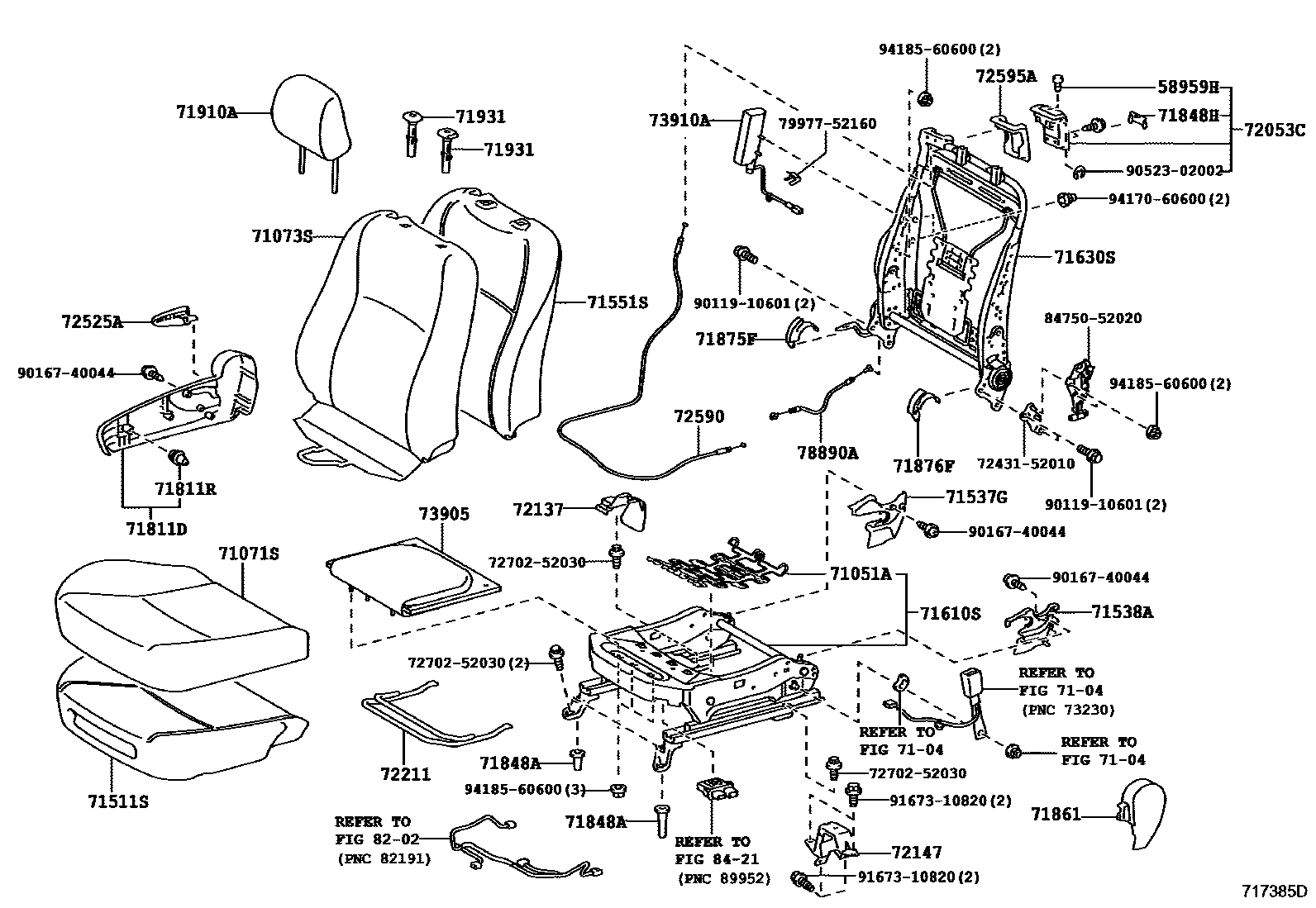

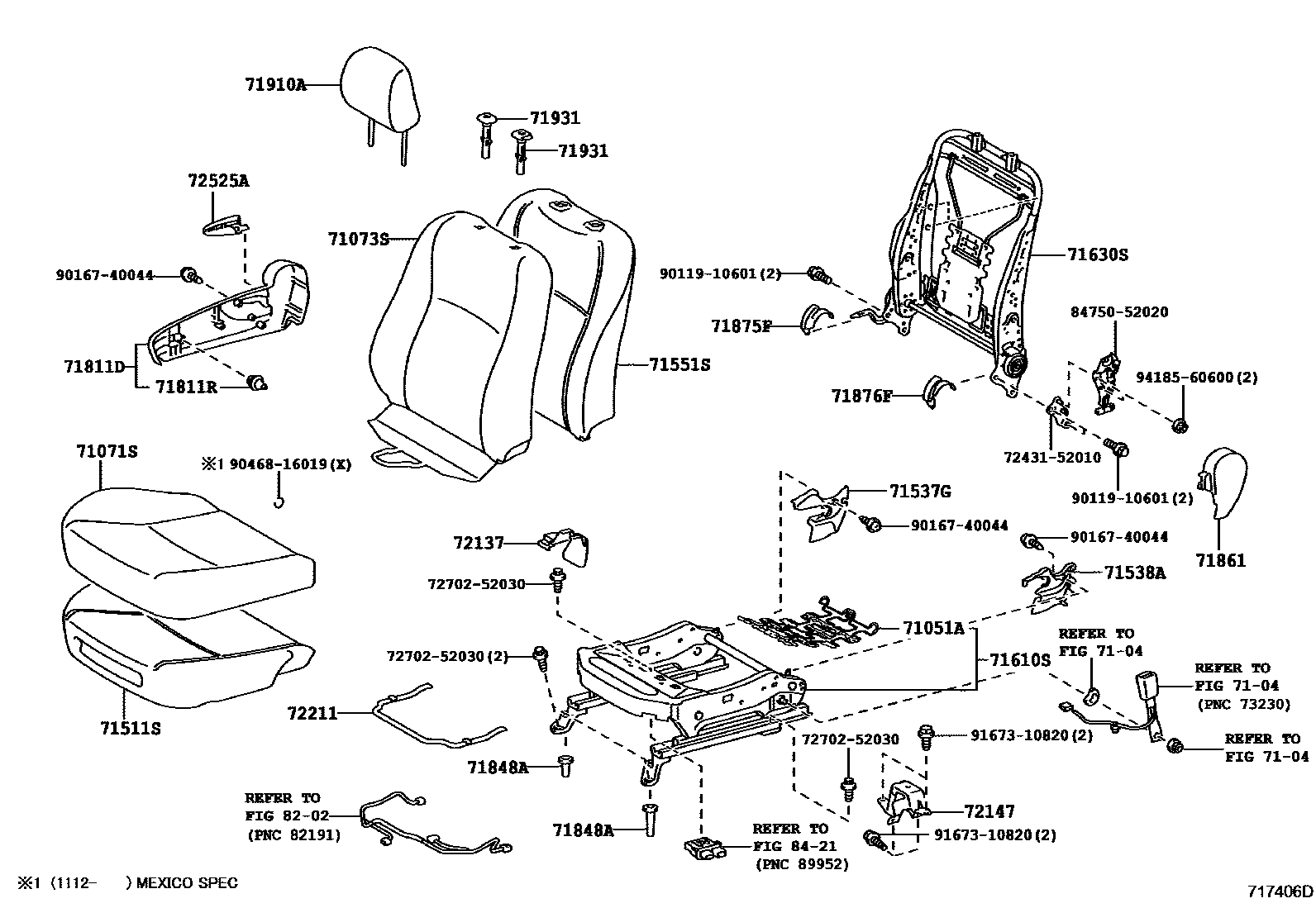

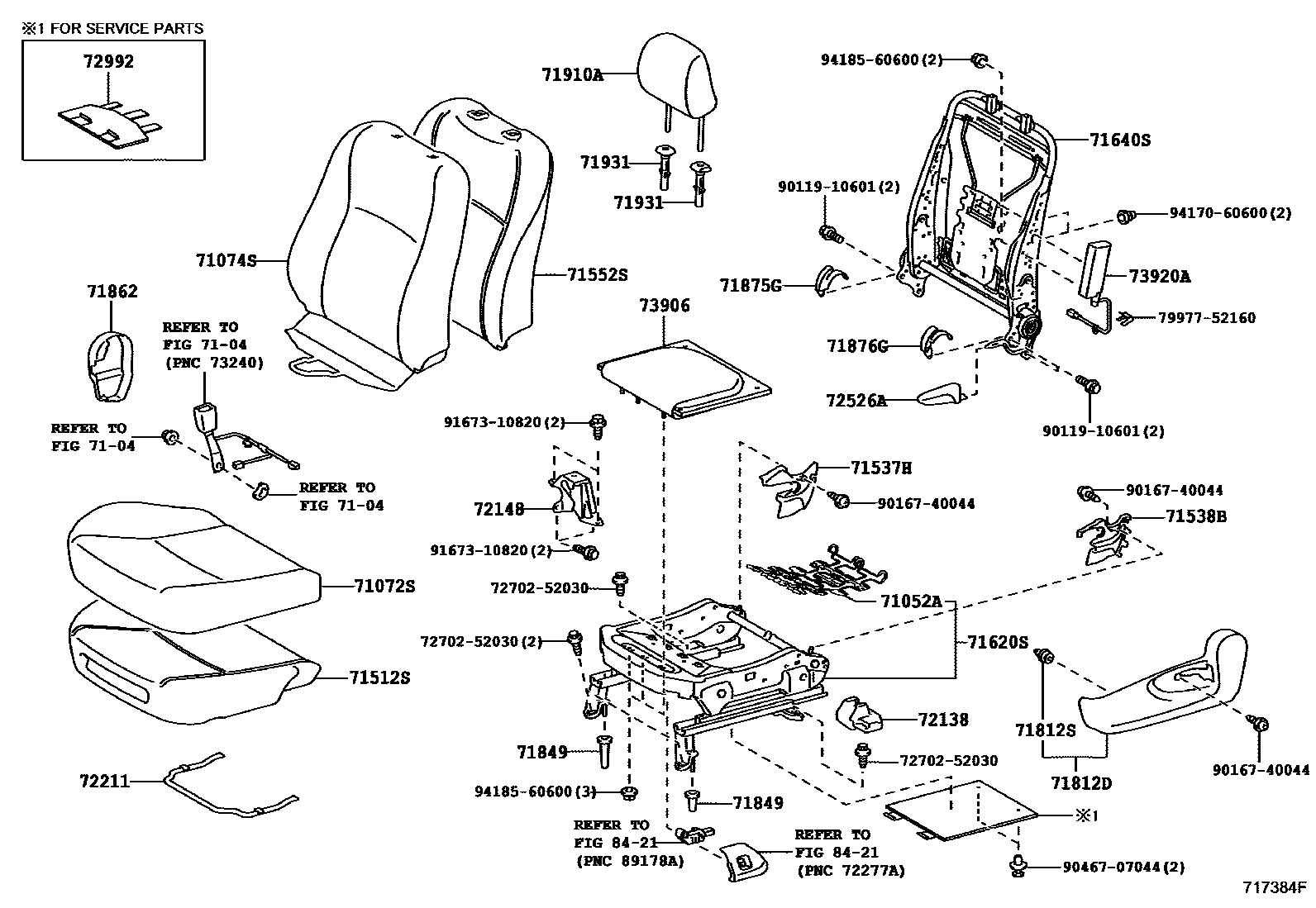

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58959H | Seat back tilt remote control lever cushion | 58959-60060 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47060 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-52590 · 71511-52710 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-52410 · 71512-52420 · 71512-52560 · 71512-52570 |
| 71551S | Front right seat back cushion (for split seats) | 71551-52790 · 71551-52800 · 71551-52820 · 71551-52840 · 71551-52860 · 71551-52880 · 71551-52A00 · 71551-52A10 |
| 71552S | Front left seat back cushion (for split seats) | 71551-52800 · 71552-52670 · 71552-52760 · 71552-52800 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-52080 · 71610-52081 · 71610-52082 · 71610-52090 · 71610-52091 · 71610-52092 · 71610-52210 · 71610-52211 · 71610-52212 · 71610-52220 · 71610-52221 · 71610-52222 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-52080 · 71620-52081 · 71620-52082 · 71620-52090 · 71620-52091 · 71620-52092 · 71620-52220 · 71620-52221 · 71620-52222 · 71620-52230 · 71620-52231 · 71620-52232 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-52380 · 71630-52420 · 71630-52470 · 71630-52490 · 71630-52570 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-52160 · 71640-52270 · 71640-52350 |
| 71811R | Front right seat cushion guard clip | 71769-47020 |
| 71812S | Front left seat cushion guard clip | 71769-47020 |
| 71848A | Right seat adjuster cover | 71848-52040 · 71848-52050 |
| 71849 | left seat adjuster cover | 71848-52040 · 71848-52050 |
| 71873A | Front seat cushion lower guard | 71873-52270 |
| 71874A | Front left seat cushion lower guard | 71874-52290 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52100 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52100 |
| 72211 | Seat slide adjustment handle | 72211-52160 · 72211-52170 |
| 72590 | Seat back control cable assembly | 72590-52050 |
| 72992 | Front left seat cushion cover | 72991-52120 |
| 73905 | Front right seat airbag sub-assembly | 73905-52020 |
| 73906 | Front left seat air bag sub-assembly | 73905-52020 |
| 73910A | Front right seat airbag assembly | 73910-52190 · 73910-52191 |
| 73920A | Front left seat airbag assembly | 73920-52190 · 73920-52191 |
| 78890A | Auxiliary seat lock control cable assembly | 78890-21010 |
