Toyota YARIS 锁芯组件 — Figure 6712

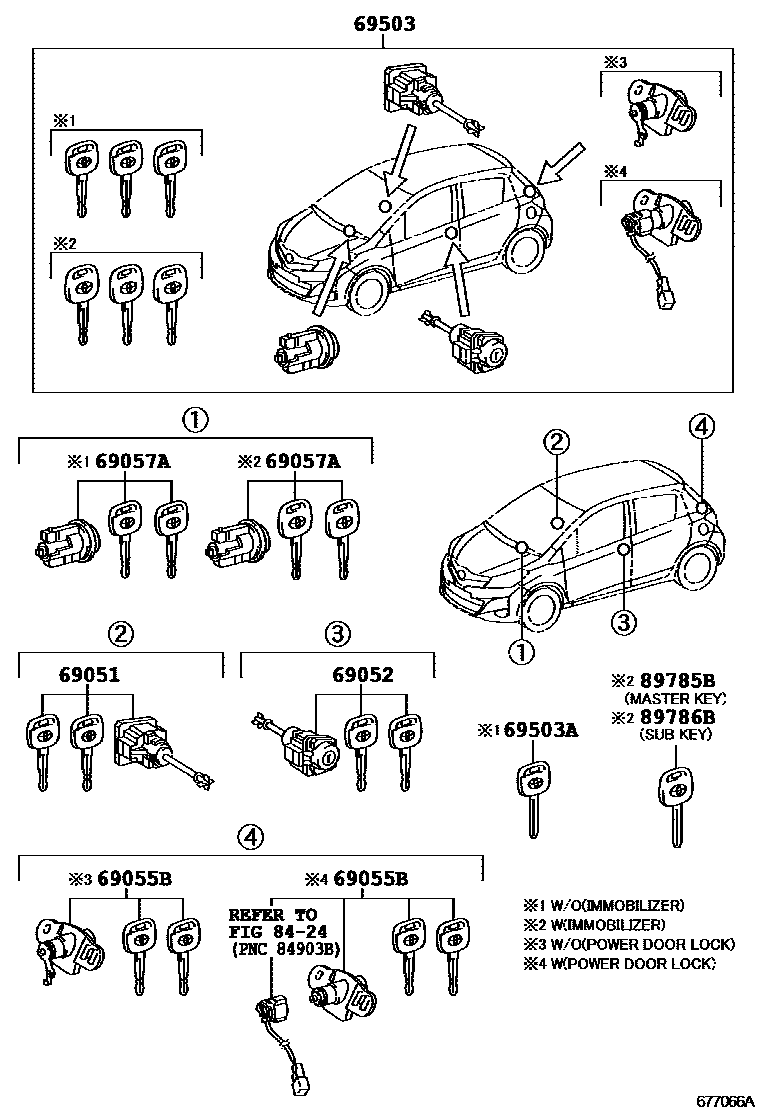

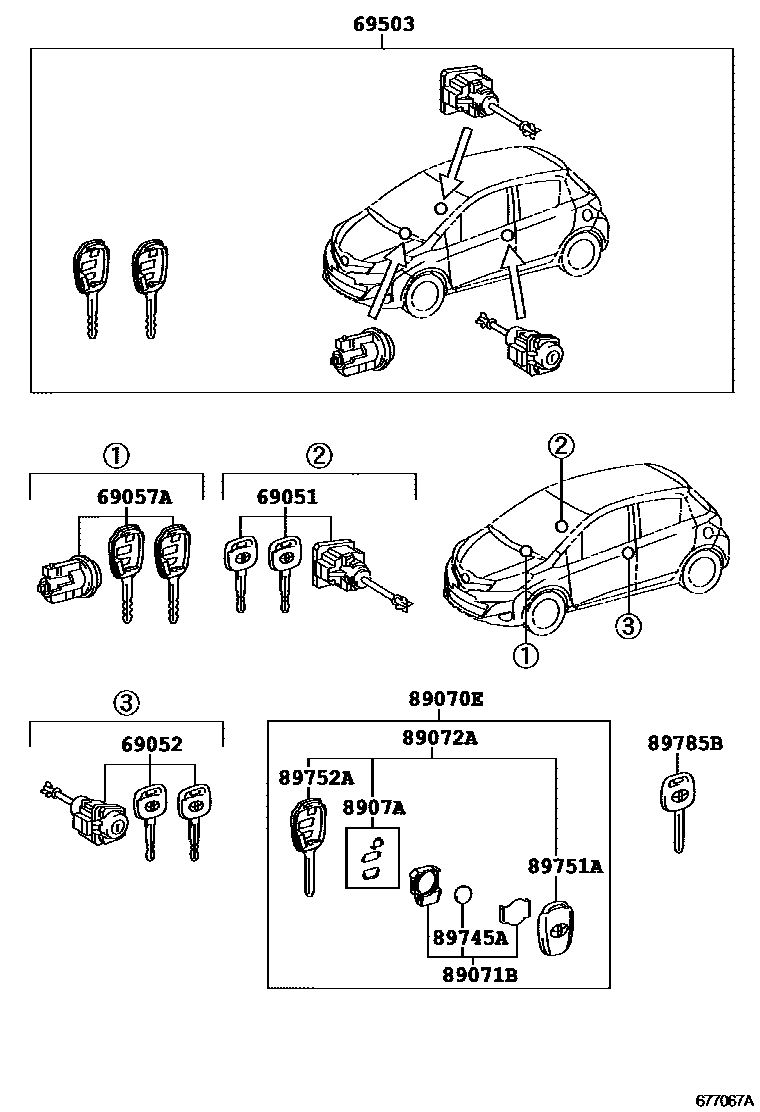

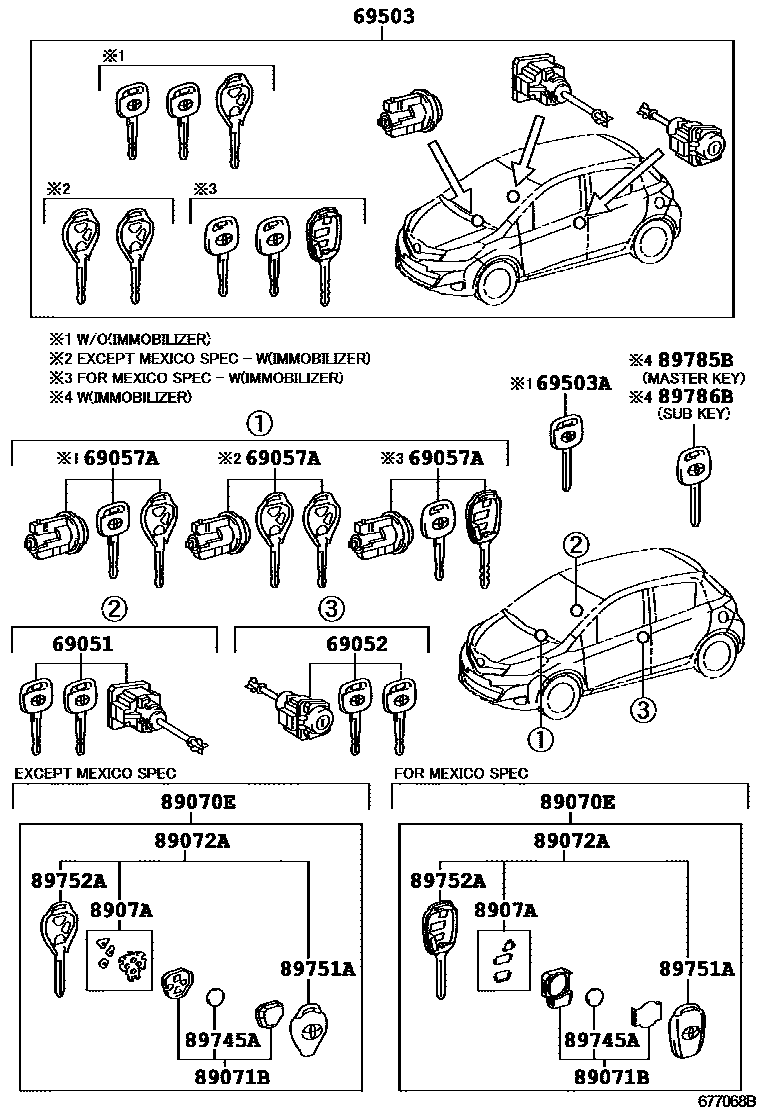

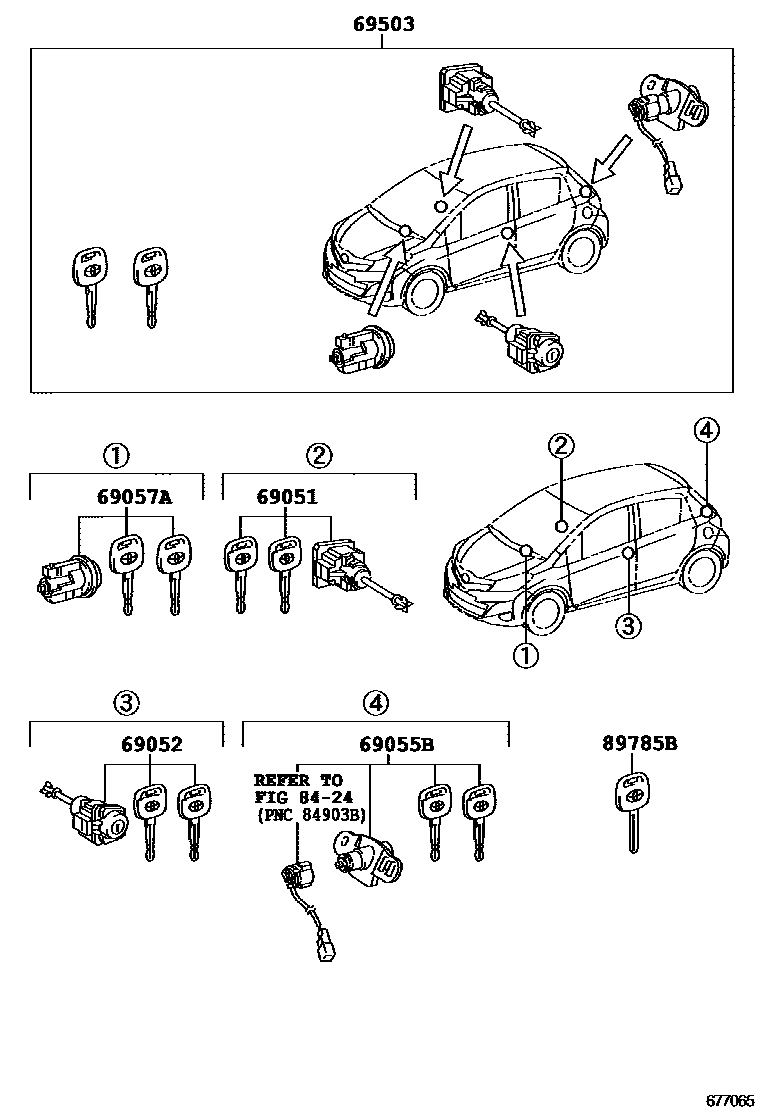

Toyota YARIS EPC diagram 6712, 锁芯组件, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-22380 |
| 69052 | Left door lock cylinder and key assembly | 69052-52380 |
| 69055B | Rear door lock cylinder and key assembly | 69055-52490 · 69055-52500 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-35240 · 69057-52530 · 69057-52850 · 69057-52A90 · 69057-52B40 · 69057-60610 |
| 69503 | Door lock cylinder components | 69005-52K40 · 69005-52K80 · 69005-52L20 · 69005-52L30 · 69005-52L40 · 69005-52L60 · 69005-52L70 |
| 69503A | external tooth key | 90999-00199 |
| 89070E | Remote key assembly | 89070-35170 · 89070-52A10 · 89070-52D90 |
| 89071B | Remote key sub-assembly module assembly | 89071-35080 · 89071-52290 |
| 89072A | Remote key shell assembly | 89072-35060 · 89072-52620 · 89072-52680 |
| 8907A | Transmitter switch assembly | 8907A-12010 · 8907A-52020 |
| 89745A | Transmitter battery | 89745-48030 · 89745-71010 |
| 89751A | Transmitter housing cover | 89751-35060 · 89751-52190 |
| 89752A | transmitter housing | 89752-52130 · 89752-68060 · 89752-71080 |
| 89785B | transceiver key master transmitter | 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60220 |
