Toyota YARIS 车顶内衬和消声垫 — Figure 6402

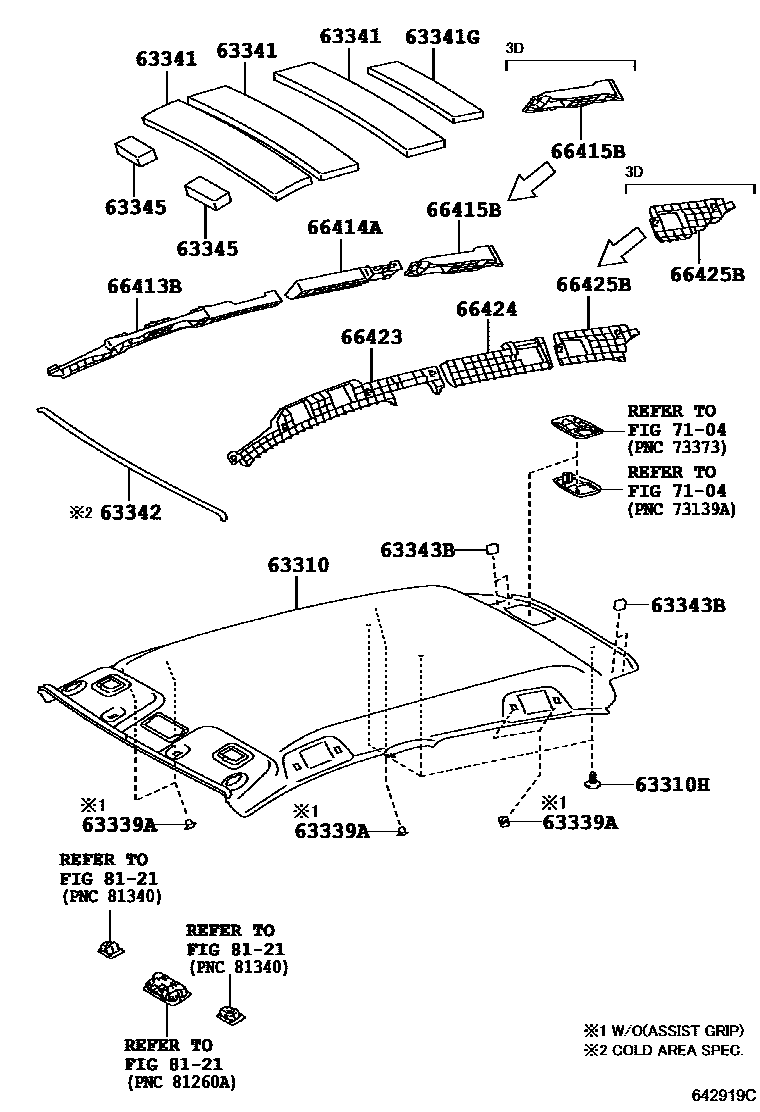

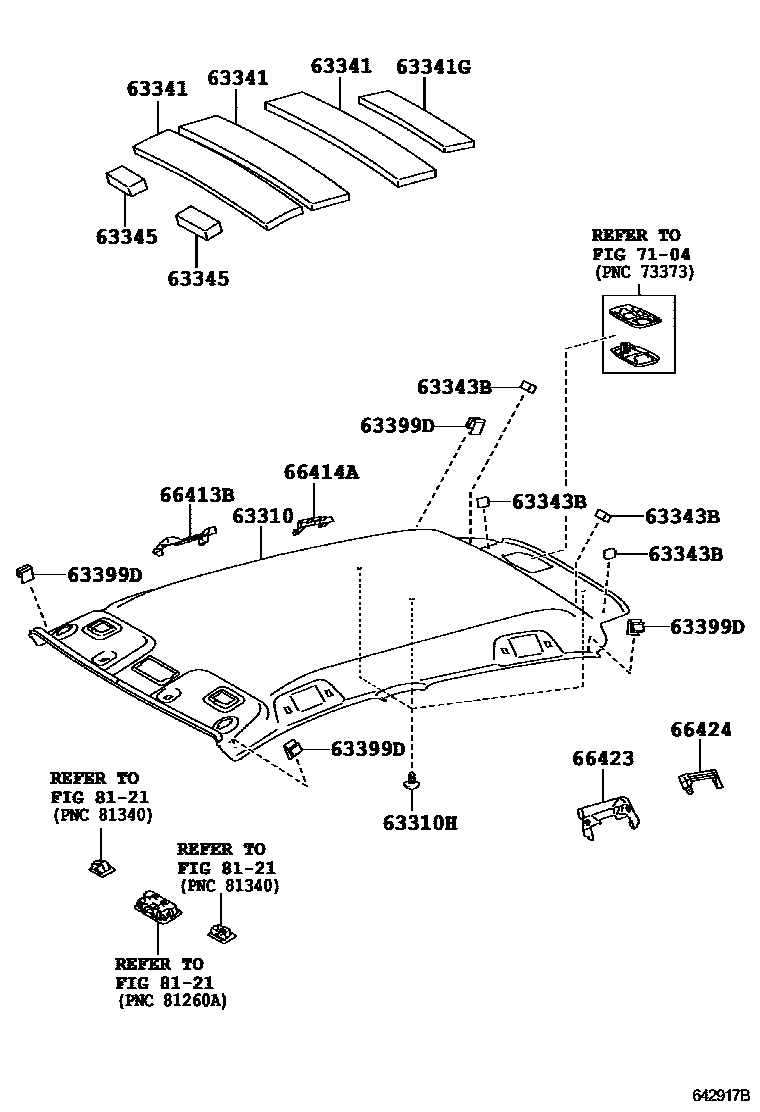

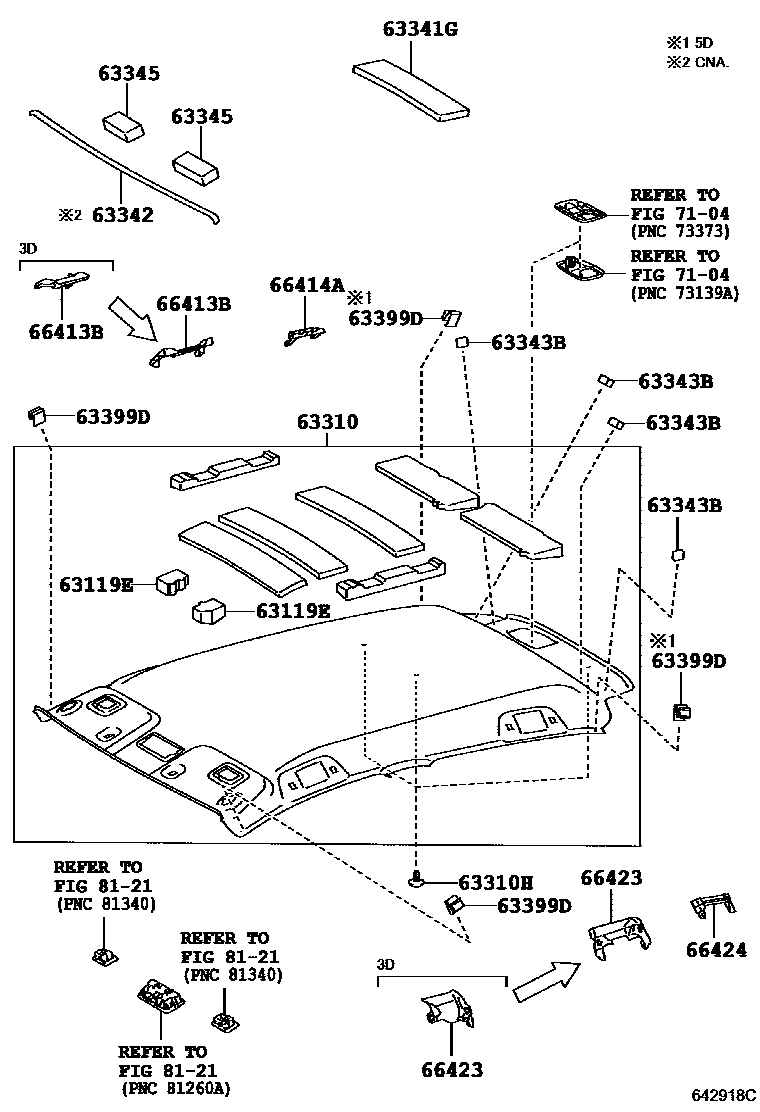

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63119E | No. 1 roof panel lining | 63119-52070 · 63129-52030 |
| 63341 | No. 1 roof silencer mat | 63341-52250 |
| 63341G | roof muffler mat | 63341-52290 |
| 63342 | No. 2 roof muffler pad | 63342-52200 |
| 63343B | Rear roof silencer pad | 63343-52080 · 63343-52081 |
| 63345 | No. 5 roof silencer mat | 63345-52010 |
| 63399D | headliner clip | 63399-52020 |
| 66413B | Right front longitudinal member spacer | 66413-52290 · 66413-52300 · 66416-52040 · 66416-52050 |
| 66414A | Right rear longitudinal member spacer | 66414-52280 · 66414-52300 · 66414-52330 · 66414-52350 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66414-52310 · 66414-52340 |
| 66423 | Left front longitudinal member spacer | 66423-52290 · 66423-52300 · 66426-52030 · 66426-52040 |
| 66424 | Left rear longitudinal member spacer | 66424-52220 · 66424-52290 · 66424-52320 · 66424-52340 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66424-52300 · 66424-52330 |
