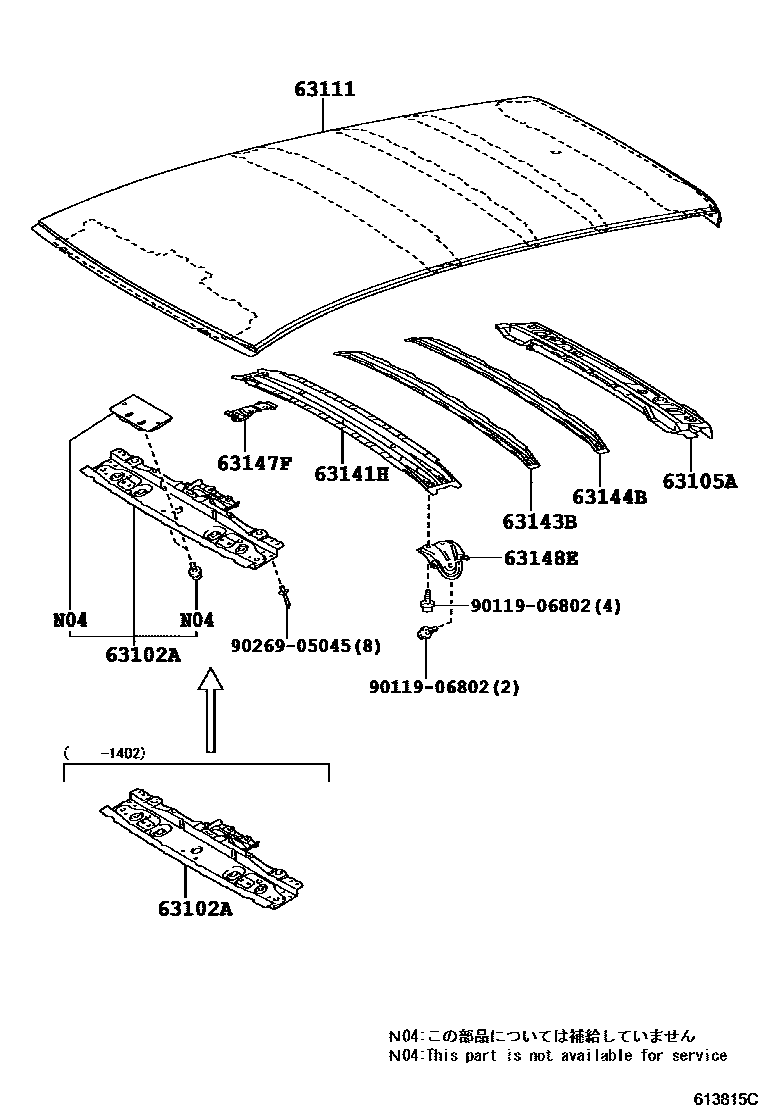

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-52180 · 63102-52220 |
| 63105A | Back door opening frame sub-assembly | 63105-52160 |
| 63111 | roof panel | 63111-52380 |
| 63141H | Center roof panel reinforcement | 63141-52160 · 63141-52161 |
| 63143B | No. 3 roof panel reinforcement | 63143-52170 |
| 63144B | No. 4 roof panel reinforcement | 63144-52130 |
| 63147F | Right roof panel reinforcement bracket | 63147-52090 |
| 63148E | Left roof panel reinforcement bracket | 63147-52090 |
