Toyota YARIS 角窗 — Figure 6103

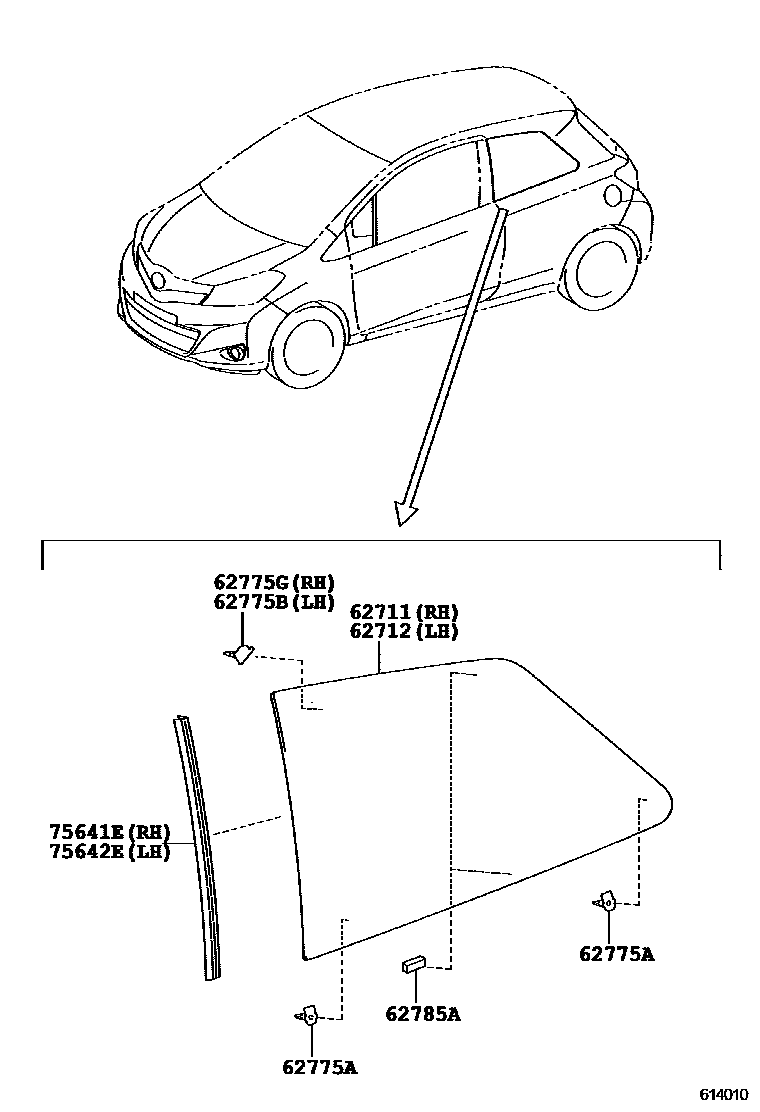

Toyota YARIS EPC diagram 6103, 角窗, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-52380 |
| 62712 | Left corner window glass | 62712-52370 |
| 62775A | Corner window clip | 62775-68110 |
| 62775B | Left corner window clip | 62775-52060 |
| 62775G | Right corner window clip | 62775-52050 |
| 62785A | Corner window glass spacer | 62785-16030 |
| 75641E | Right corner window protective strip | 75641-52060 |
| 75642E | Left corner window protective strip | 75641-52060 |
