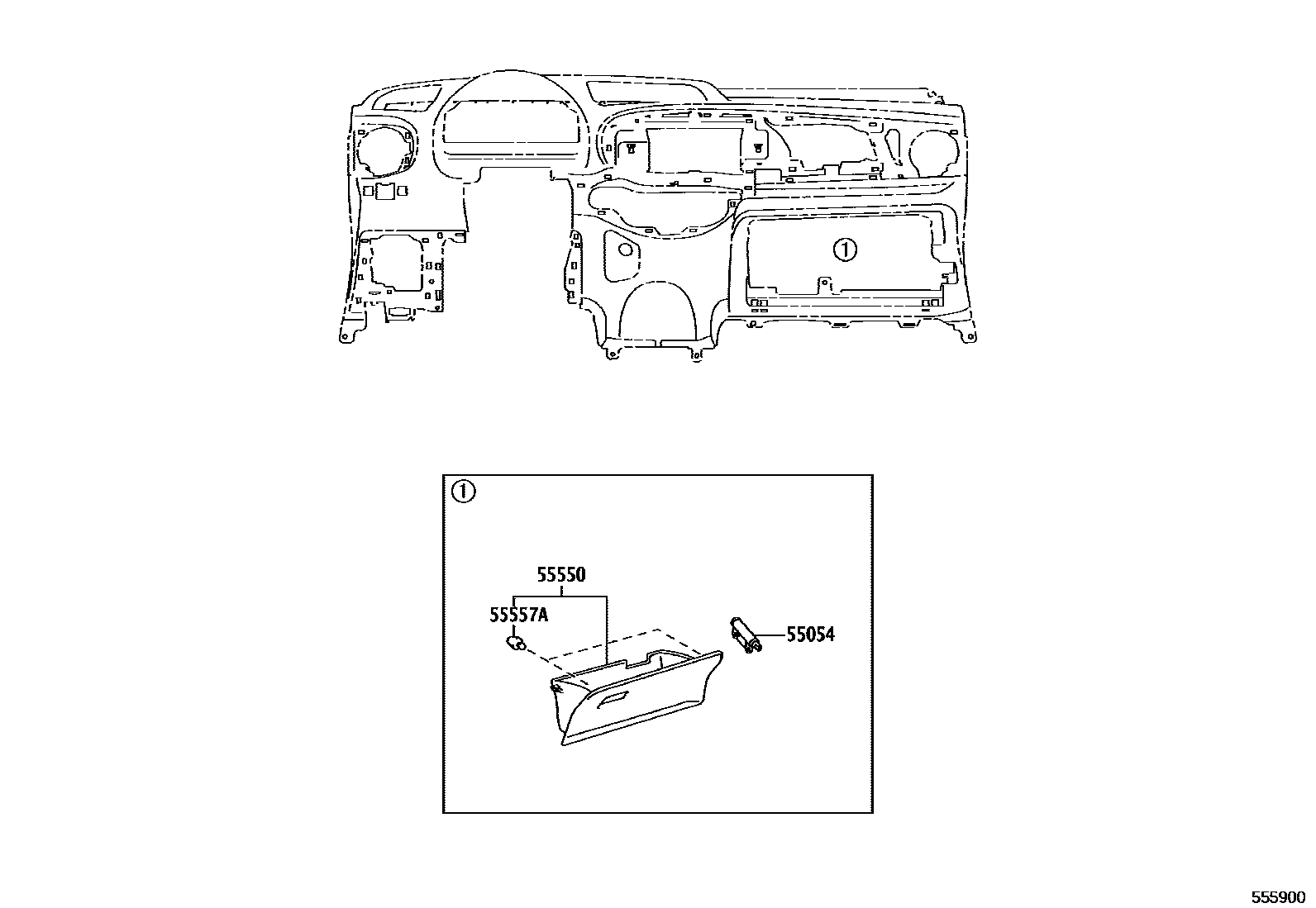

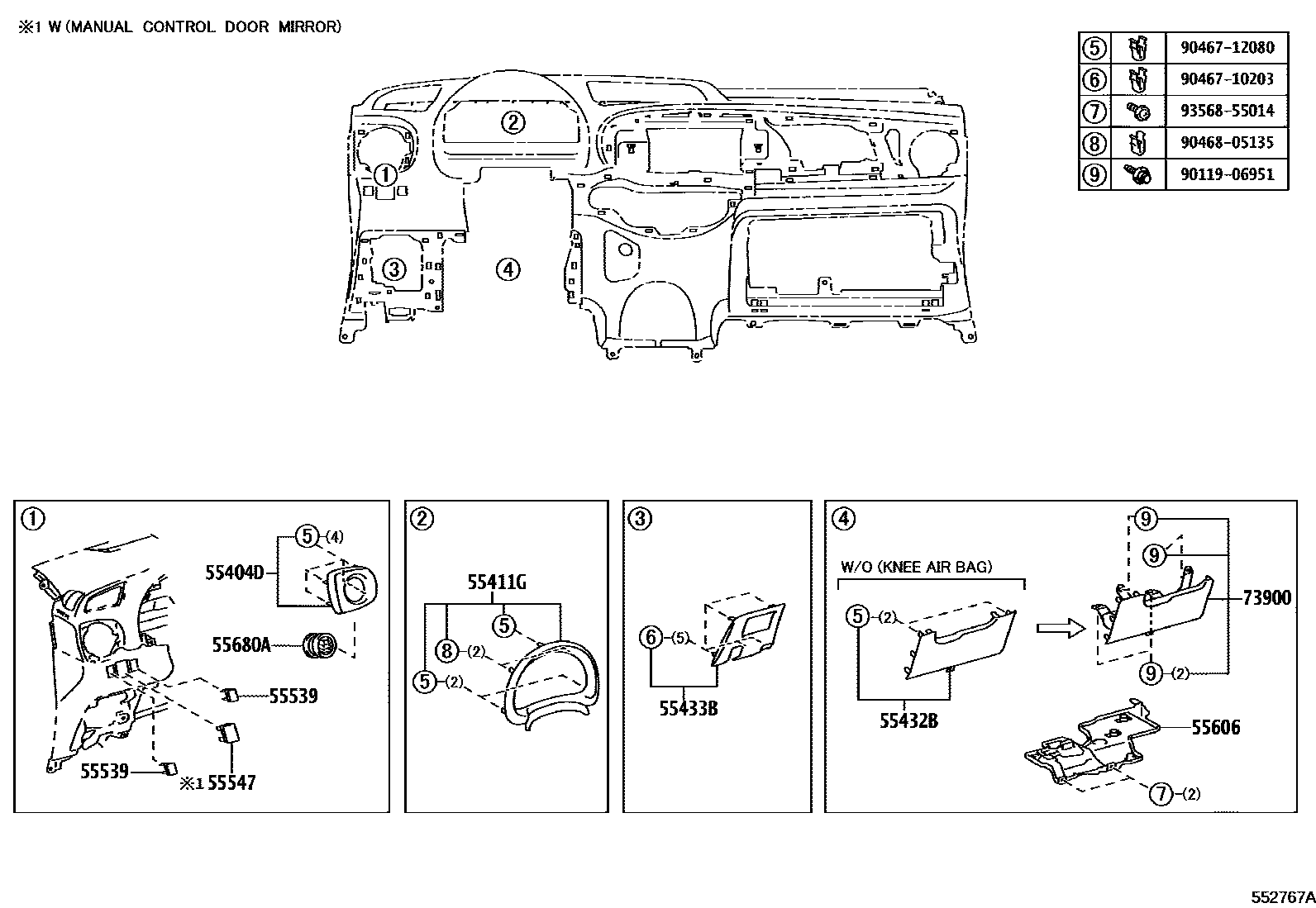

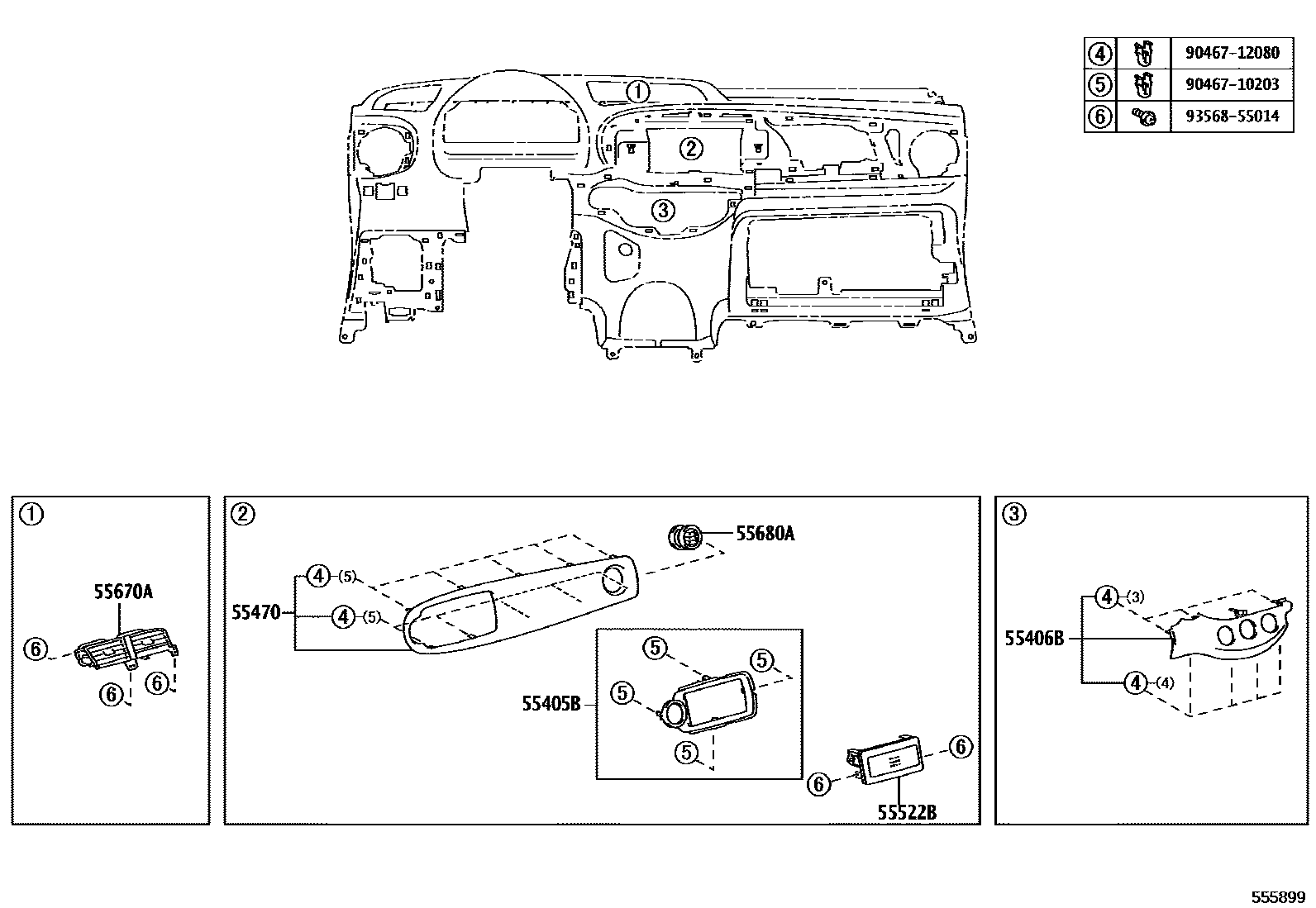

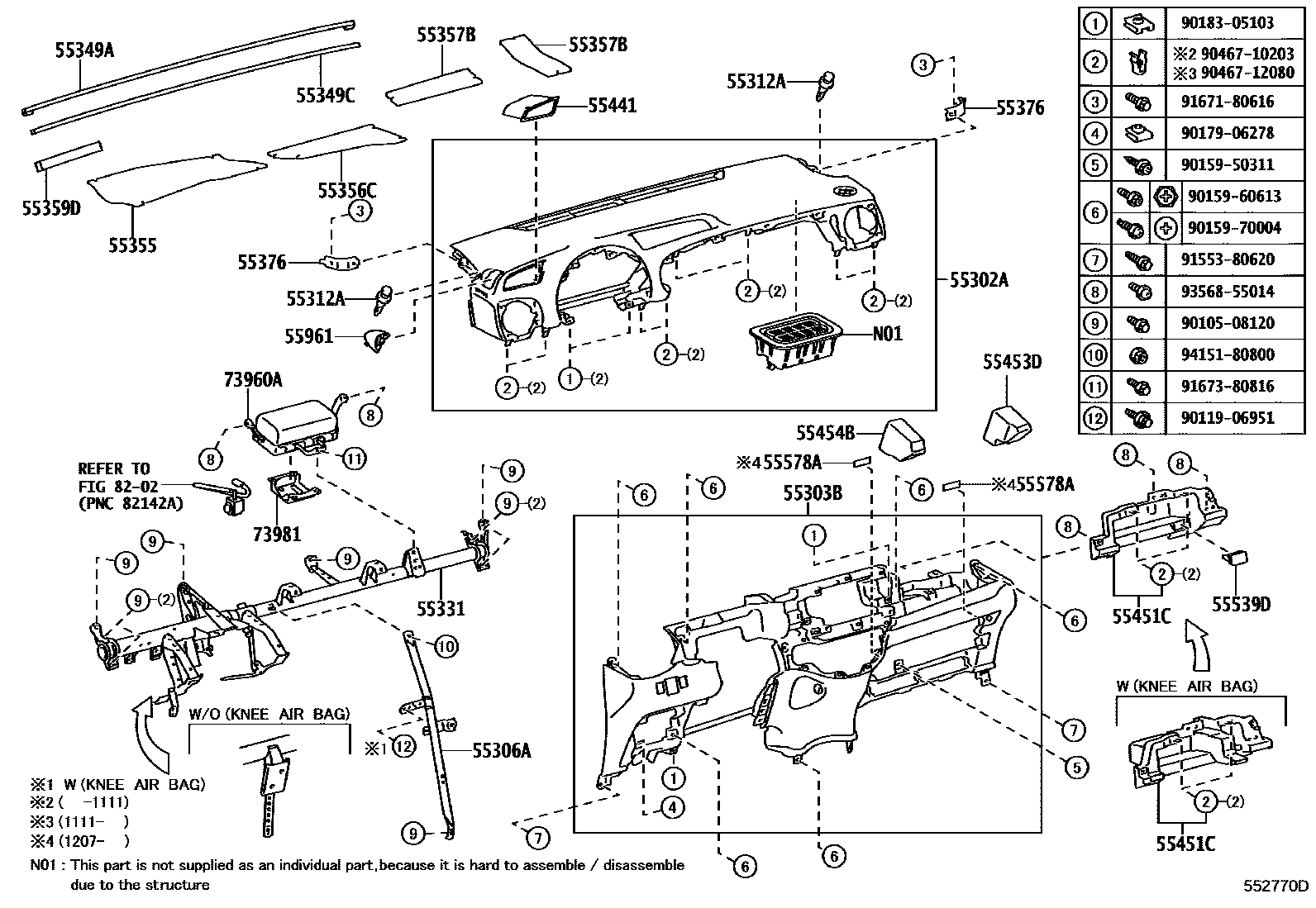

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52160 · 55306-52270 |
| 55312A | Dashboard clip | 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-52600 · 55330-52610 |
| 55349A | Dashboard cushion | 55349-52140 · 55349-52141 |
| 55349C | Dashboard cushion | 55349-52150 · 55349-52151 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52180 · 55355-52181 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-52190 · 55356-52191 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-52160 · 55357-52161 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-52190 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-52110 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-52860 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52130 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-52120 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55578A | Glove box cover silencer | 55578-52040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-52050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52160 · 73960-52161 |
| 73981 | Passenger air bag connector cover | 73981-52010 |
