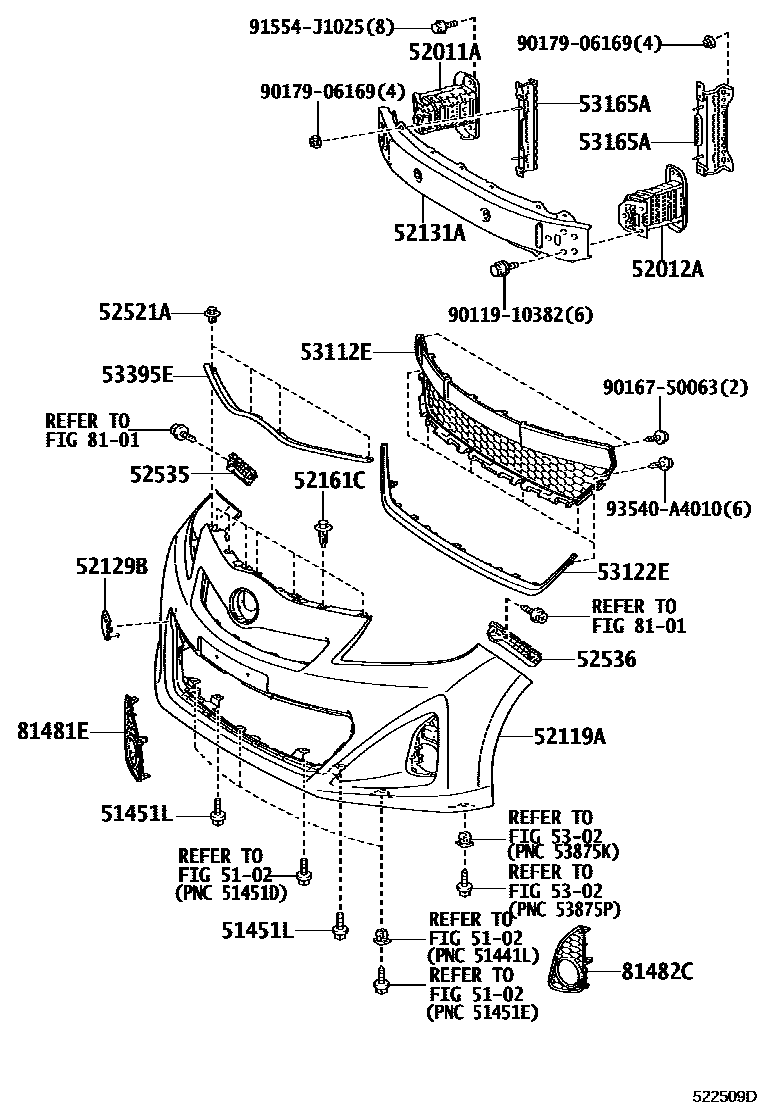

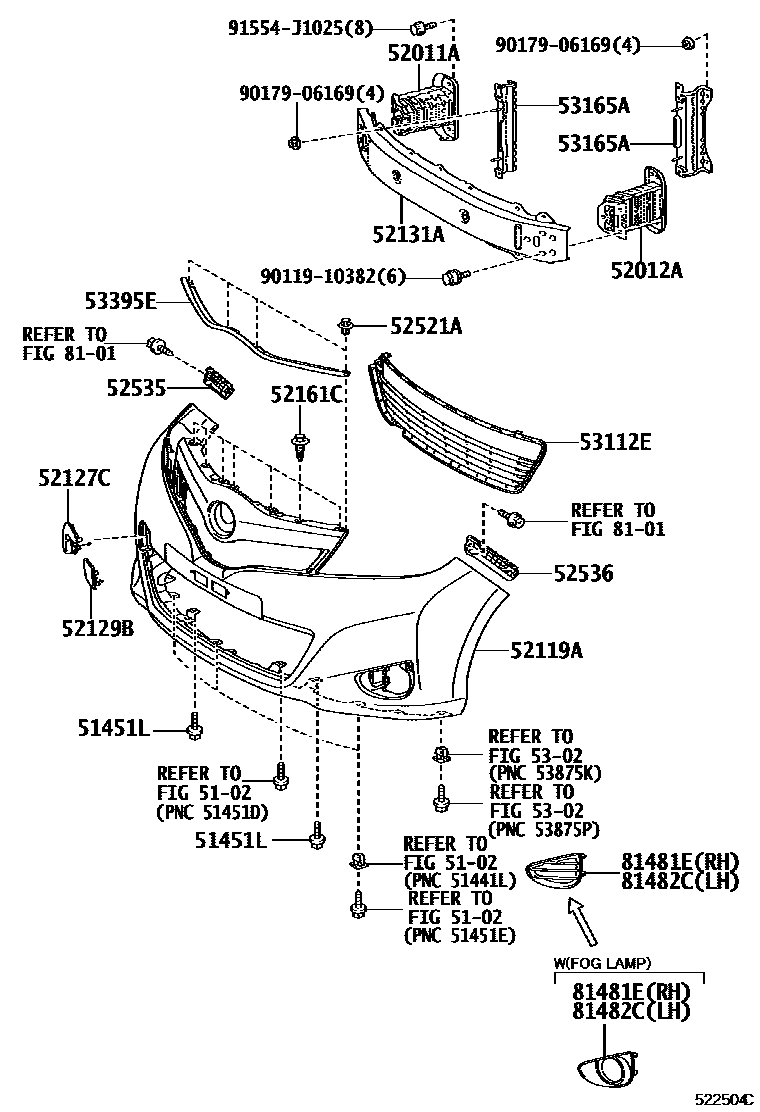

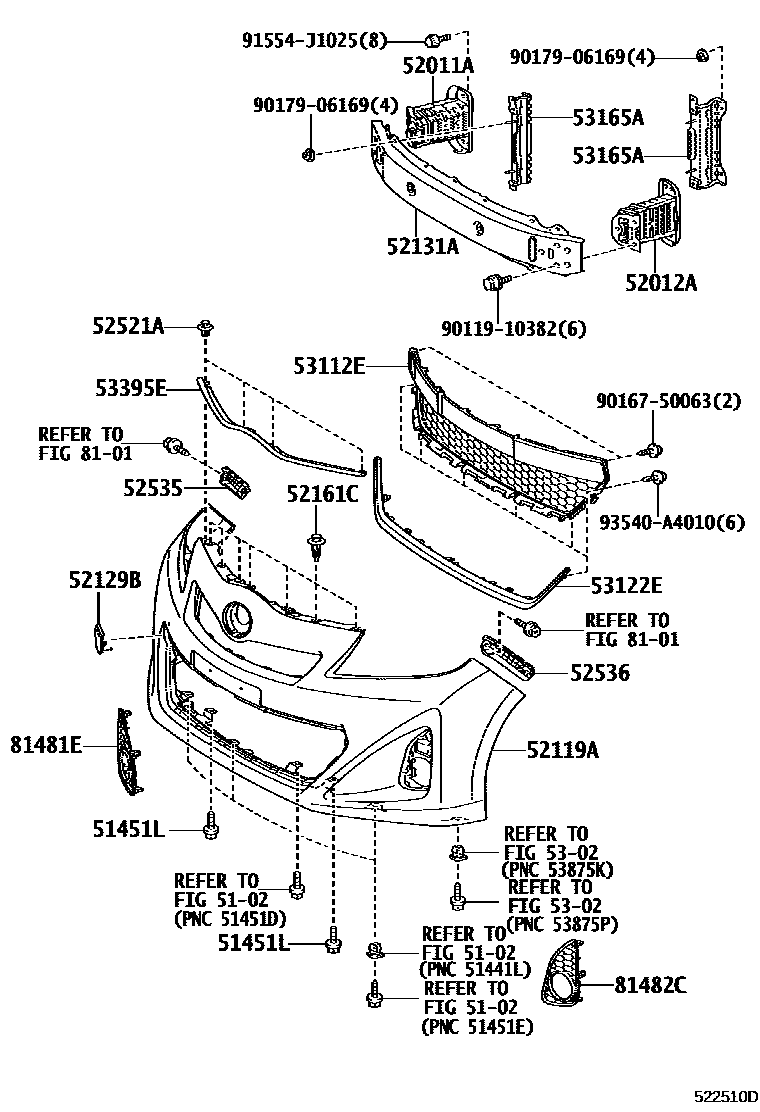

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451L | BOULON, NO.1 | 90119-06767 |
| 52011A | Front bumper right arm sub-assembly | 52011-52020 · 52011-52021 |
| 52012A | Front bumper left arm sub-assembly | 52012-52020 |
| 52119A | front bumper cover | 52119-52965 · 52119-52976 |
| 52127C | Front bumper hole cover | 52127-52931 |
| 52129B | Front bumper lower cover | 52129-52090 · 52129-52100 |
| 52131A | Front bumper reinforcement | 52131-52250 · 52131-52280 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-52110 · 52535-52111 |
| 52536 | Front bumper left fixed bracket | 52536-52080 · 52536-52081 |
| 53112E | No. 1 radiator lower grille | 53112-52260 · 53112-52300 |
| 53122E | Radiator grille lower protective strip | 53122-52030 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52020 · 53165-52030 |
| 53395E | Engine cover to front end plate seal | 53395-52040 |
| 81481E | Right fog light cover | 81481-52360 · 81481-52380 · 81481-52390 |
| 81482C | Left fog light cover | 81482-52300 · 81482-52320 · 81482-52330 |
