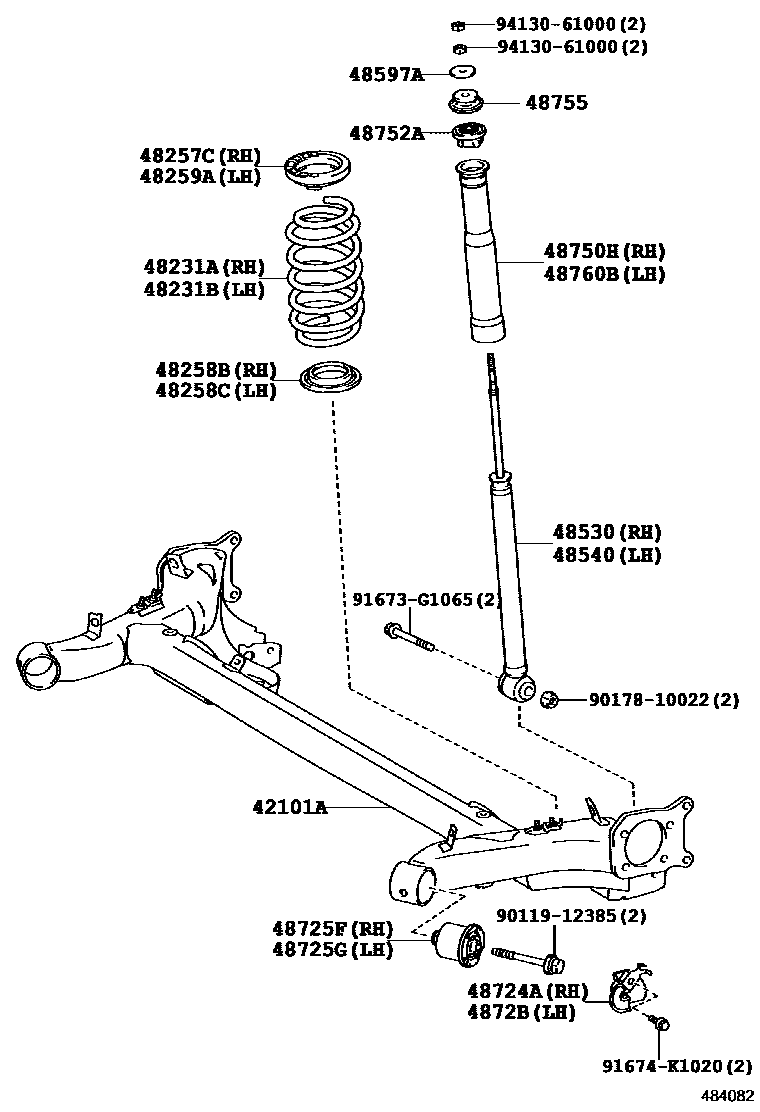

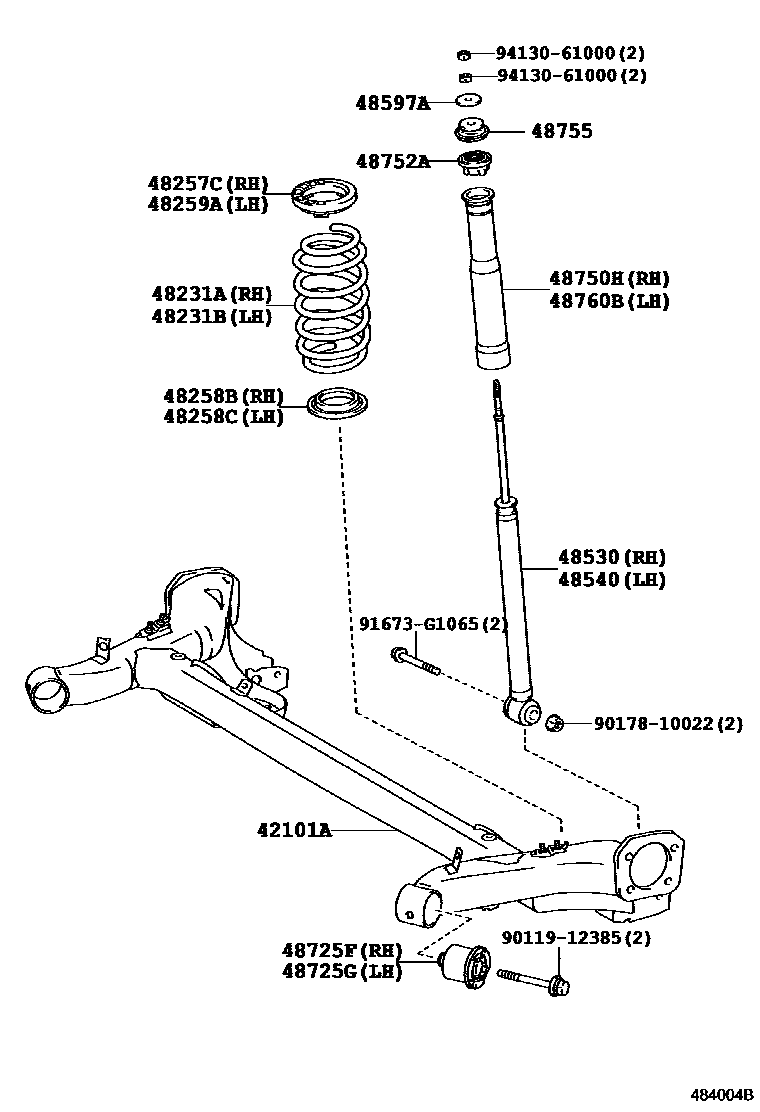

Toyota YARIS Rear Spring & Shock Absorber — Figure 4804
Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42101A | SOUS-ENS POUTRE, ESSIEU ARRIERE | 42101-52160 · 42101-52192 |
| 48231A | Right rear coil spring | 48231-52F30 · 48231-52F40 |
| 48231B | Left rear coil spring | 48231-52F30 · 48231-52F40 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-52030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-52030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48530 | Right rear shock absorber assembly | 48530-52G20 · 48530-52J10 · 48530-52J20 |
| 48540 | Left rear shock absorber assembly | 48530-52G20 · 48530-52J10 · 48530-52J20 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48724A | Rear axle dynamic damper | 48724-52010 |
| 48725F | Right rear axle bracket bushing | 48725-52120 |
| 48725G | Left rear axle bracket bushing | 48725-52120 |
| 4872B | REGISTRE, DYNAMIQUE POUTRE D'ESSIEU ARR., MG | 4872B-52010 |
| 48750H | Right rear suspension support assembly | 48750-52100 · 48750-52200 |
| 48752A | Rear suspension mount block | 48752-52010 |
| 48755 | rear suspension mount | 48755-52010 |
| 48760B | Left rear suspension support assembly | 48750-52100 · 48750-52200 |
