Toyota YARIS Front Spring & Shock Absorber — Figure 4803

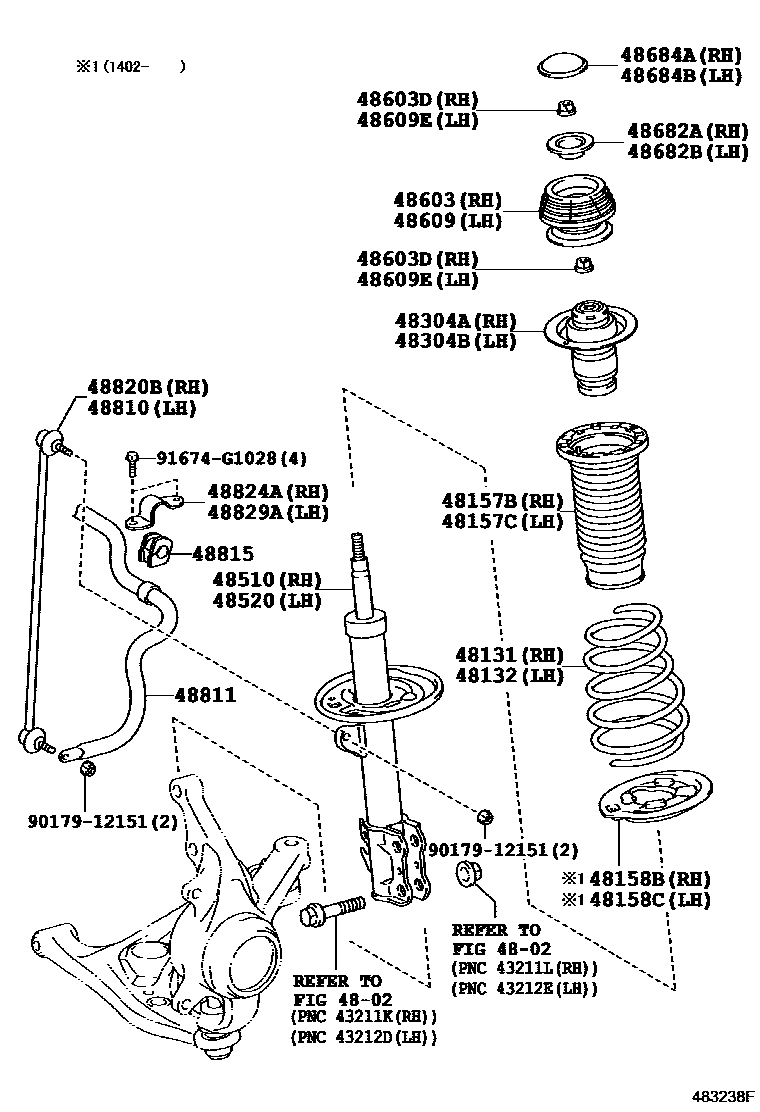

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 24 PNC and OE references.

Toyota YARIS Front Spring & Shock Absorber EPC diagram — 483238F
Front Spring & Shock Absorber — 483238F (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
48131Right front coil spring48131-52G30 · 48131-52G31 · 48131-52G40 · 48131-52G41 · 48131-52G50 · 48131-52G51 · 48131-52G80 · 48131-52G81
48132Left front coil spring48131-52G30 · 48131-52G31 · 48131-52G40 · 48131-52G41 · 48131-52G50 · 48131-52G51 · 48131-52G80 · 48131-52G81
48157BFront coil spring upper right vibration isolation pad48157-52030 · 48157-52040
48157CFront coil spring upper left vibration isolation pad48157-52030 · 48157-52040
48158BFront coil spring lower right vibration isolation pad48158-52010
48158CFront coil spring lower left vibration isolation pad48158-52010
48304AENSEMBLE SOUS LE SIEGE, TAMPON, MD48304-52040 · 48304-52050 · 48304-52051
48304BENSEMBLE SOUS LE SIEGE, TAMPON, MG48304-52040 · 48304-52050 · 48304-52051
48510Right front shock absorber assembly48510-52G10 · 48510-52G11 · 48510-52J10 · 48510-52J11 · 48510-52J20 · 48510-52J21
48520Left front shock absorber assembly48520-52510 · 48520-52511 · 48520-52610 · 48520-52611 · 48520-52620 · 48520-52621
48603Right front suspension bearing sub-assembly48609-52100
48603DNut (for front mount to right front shock absorber)90179-12145
48609Left front suspension bearing sub-assembly48609-52100
48609ENut (for front mount to left front shock absorber)90179-12145
48682ANo. 2 right front suspension support48682-52040
48682BNo. 2 left front suspension support48682-52040
48684ARight front suspension support dust cover48684-52020
48684BLeft front suspension support dust cover48684-52020
48810Left front stabilizer bar link assembly48820-52030
48811front stabilizer bar48811-52240
48815Front stabilizer bar bushing No. 148815-52090
48820BRight front stabilizer bar link assembly48820-52030
48824ARight front stabilizer bar bracket No. 148824-52060
48829ALeft front stabilizer bar bracket No. 148824-52060
