Toyota YARIS 制动配管和卡箍 — Figure 4708

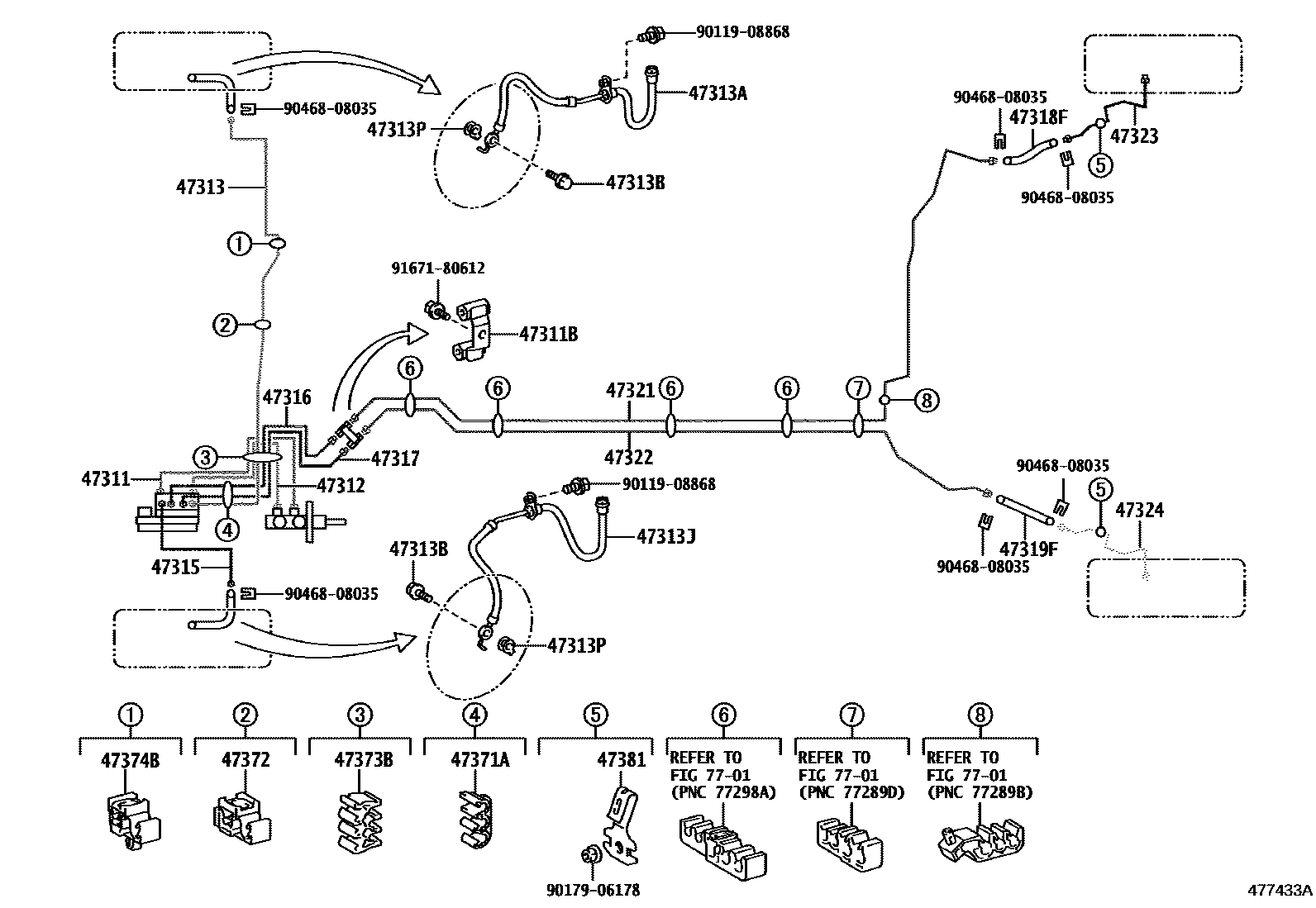

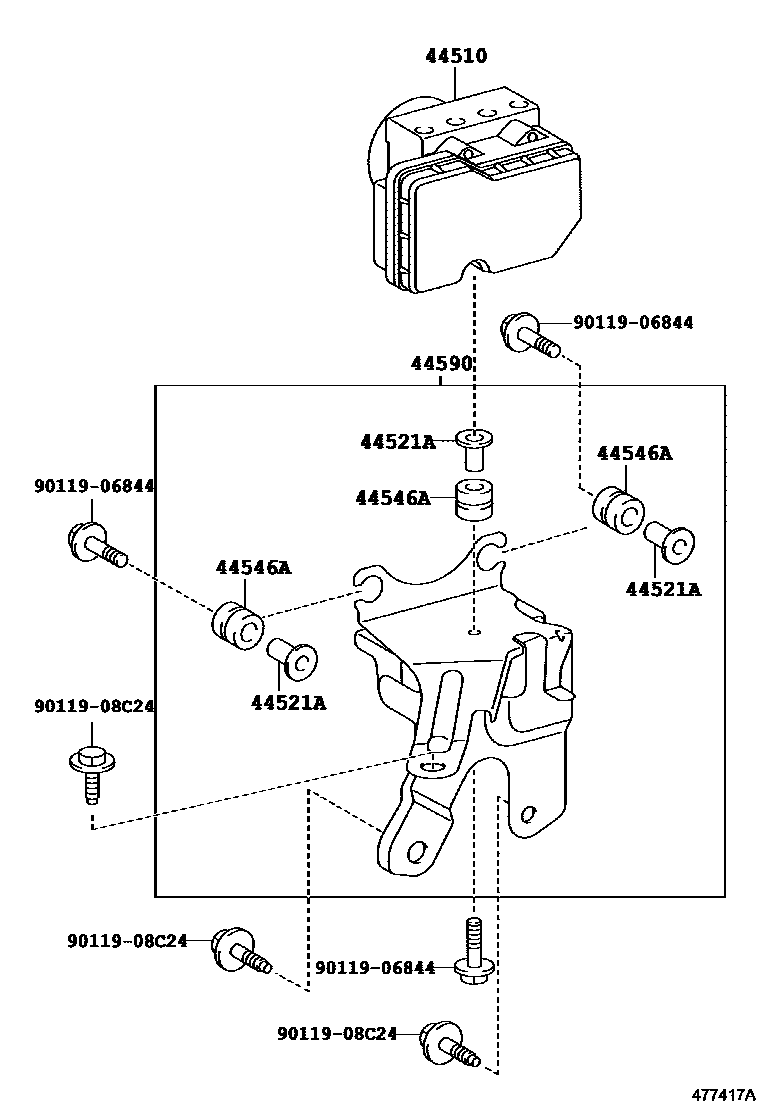

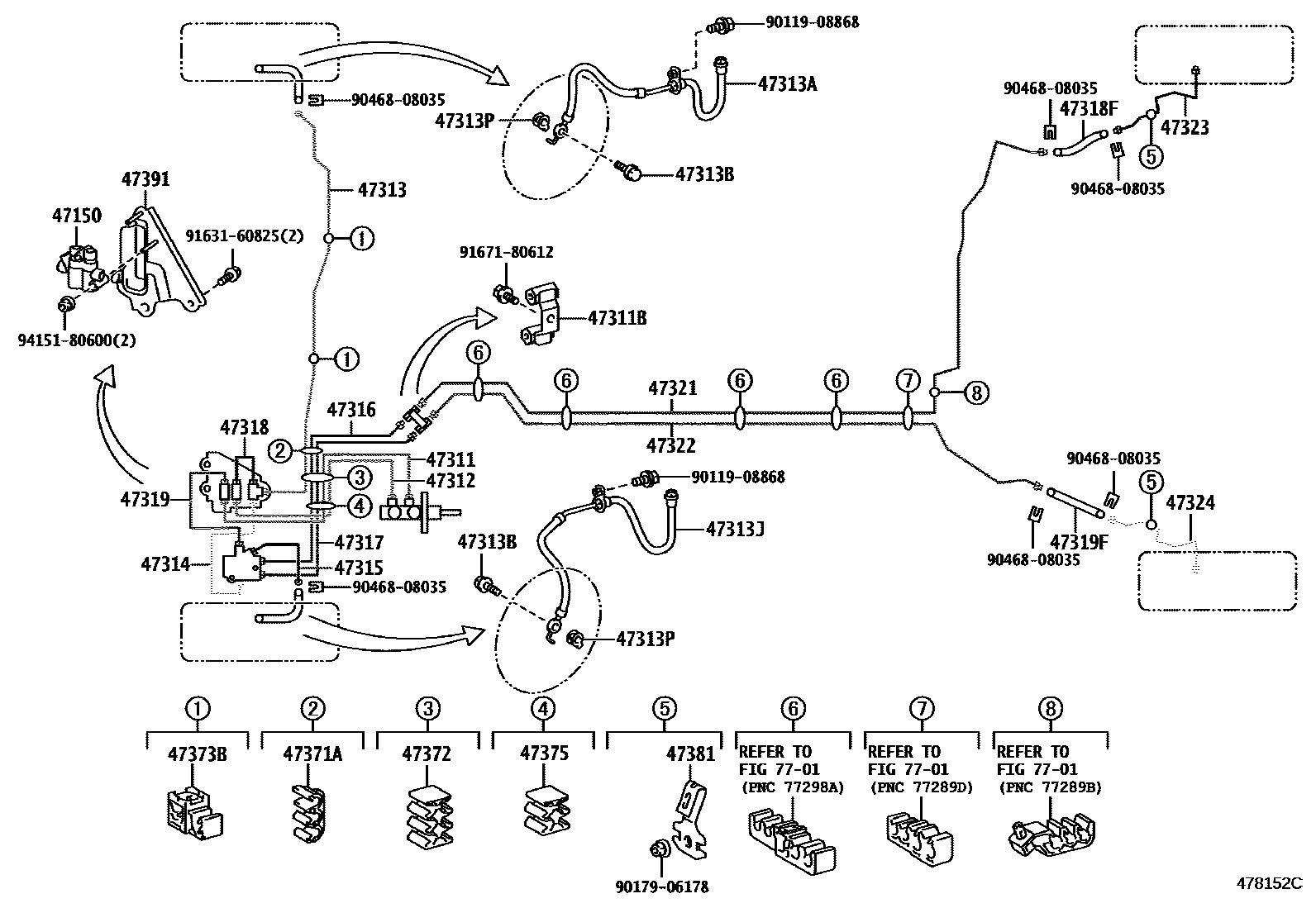

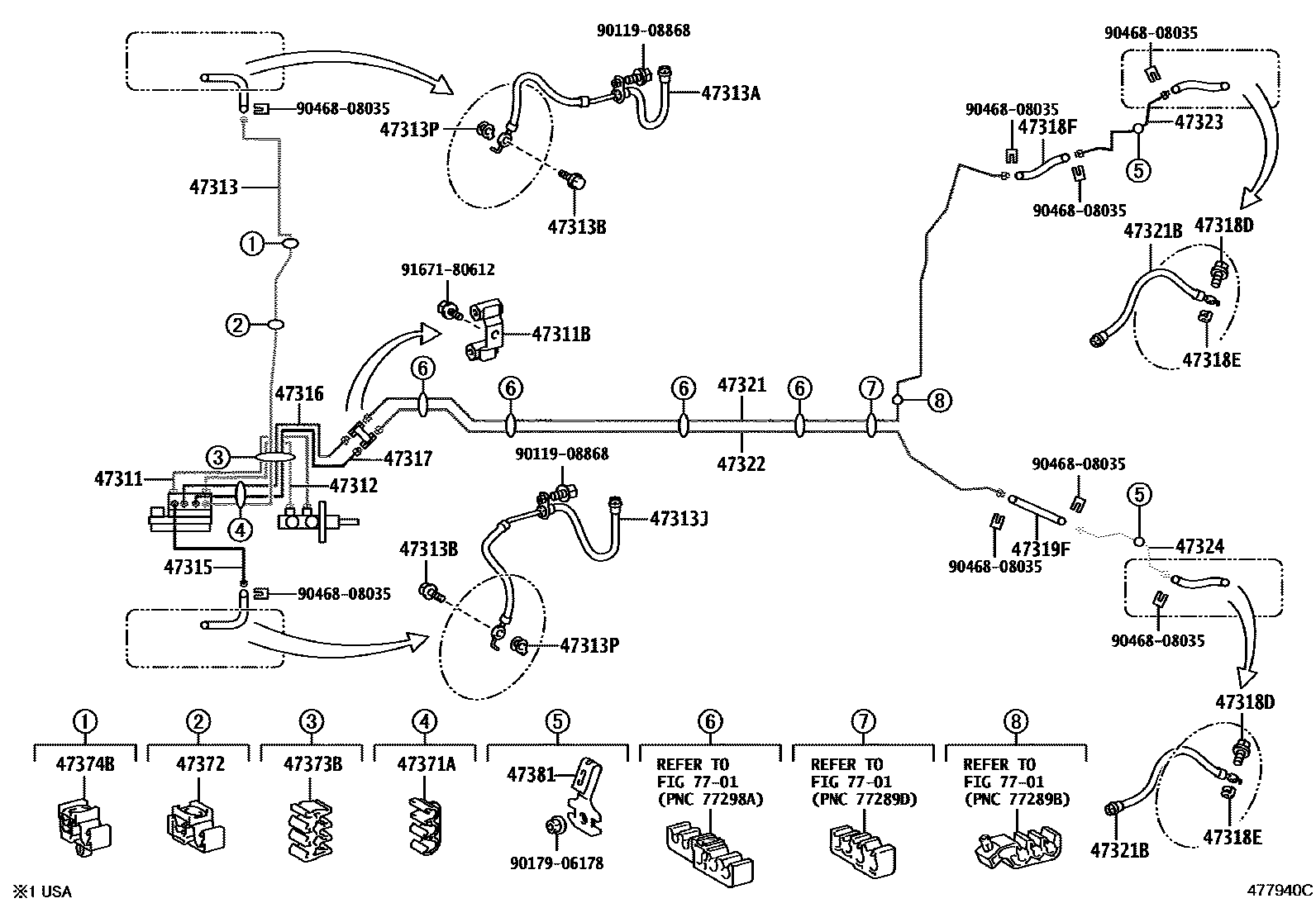

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-52E90 · 44050-52E91 · 44050-52F00 · 44050-52F01 · 44050-52G10 · 44050-52G11 · 44050-52G30 · 44050-52G31 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-52170 · 44590-52210 |
| 47150 | Proportional valve assembly | 47150-10090 |
| 47311 | No. 1 front brake pipe | 47311-52560 · 47311-52570 · 47311-52600 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-52520 · 47312-52530 · 47312-52560 |
| 47313 | No. 3 front brake pipe | 47313-52250 · 47313-52280 |
| 47313A | No. 1 front flexible hose | 90947-02E07 · 90947-02G34 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E08 · 90947-02G35 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-52130 |
| 47315 | No. 5 front brake pipe | 47315-52210 · 47315-52260 |
| 47316 | No. 6 front brake pipe | 47316-52200 · 47316-52240 |
| 47317 | No. 7 front brake pipe | 47317-52200 · 47317-52240 |
| 47318 | No. 8 front brake pipe | 47318-52010 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E09 · 90947-02H31 |
| 47319 | No. 9 front brake pipe | 47319-52010 |
| 47319F | Left rear flexible hose | 90947-02E10 · 90947-02H32 |
| 47321 | No. 1 rear brake pipe | 47321-52340 · 47321-52341 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-02E11 · 90947-02H26 |
| 47322 | No. 2 rear brake pipe | 47322-52320 · 47322-52321 |
| 47323 | No. 3 rear brake pipe | 47323-52100 · 47323-52101 · 47323-52110 · 47323-52111 |
| 47324 | No. 4 rear brake pipe | 47324-52090 · 47324-52091 · 47324-52100 · 47324-52101 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47372 | No. 2 brake pipe clamp | 90949-01969 · 90949-01D86 |
| 47373B | No. 3 brake pipe clamp | 90464-00925 · 90949-01969 · 90949-01D18 |
| 47374B | No. 4 brake pipe clamp | 90949-01D82 |
| 47375 | No. 5 brake pipe clamp | 90464-00883 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
| 47391 | Brake pipe joint | 47391-52010 |
