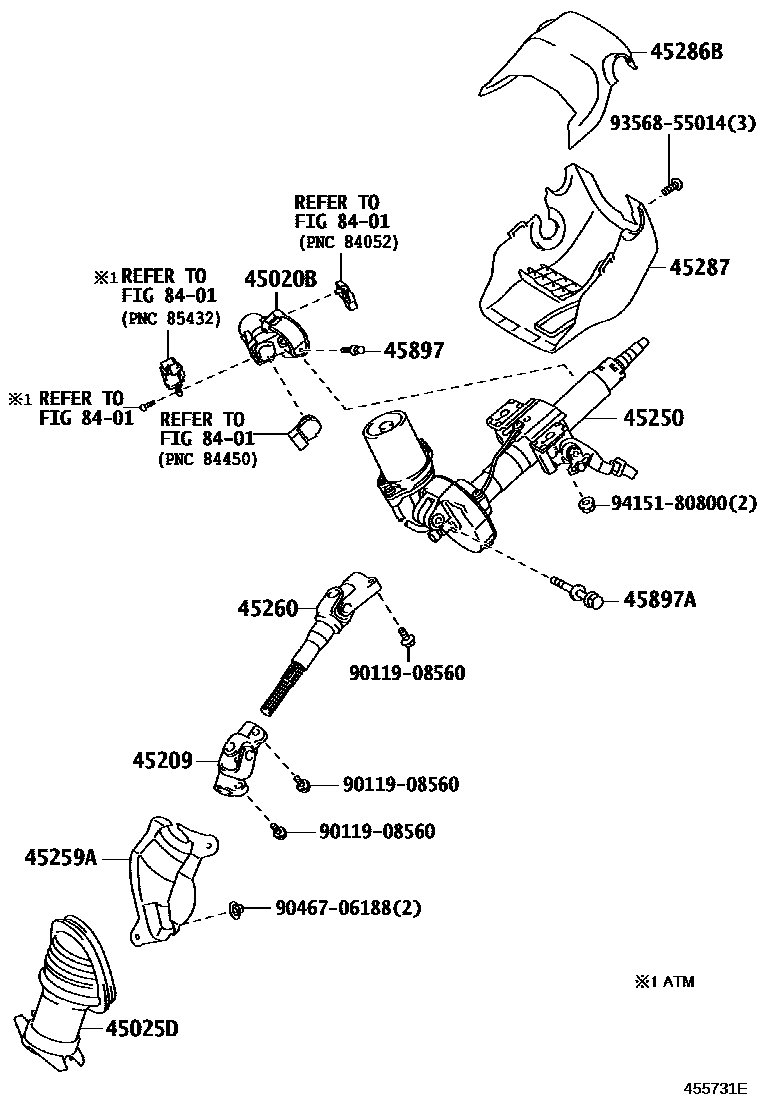

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45280-52100 · 45280-52110 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-52140 · 45025-52170 |
| 45209 | Steering slip fork sub-assembly | 45209-52050 |
| 45250 | Steering column assembly | 45250-52763 · 45250-52764 |
| 45259A | Steering column hole cover silencer plate | 45259-52020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-52261 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10980 |
