Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 24 PNC and OE references.

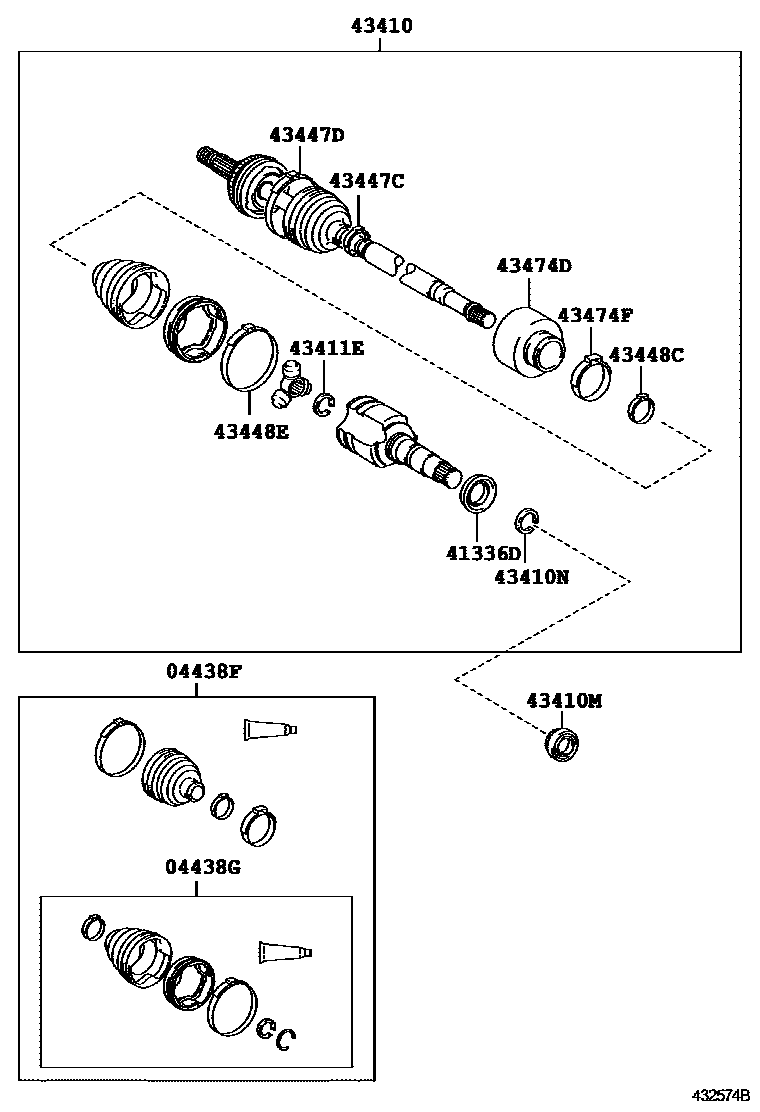

Toyota YARIS Front Drive Shaft EPC diagram — 432574B
Front Drive Shaft — 432574B (201108 – 999999)

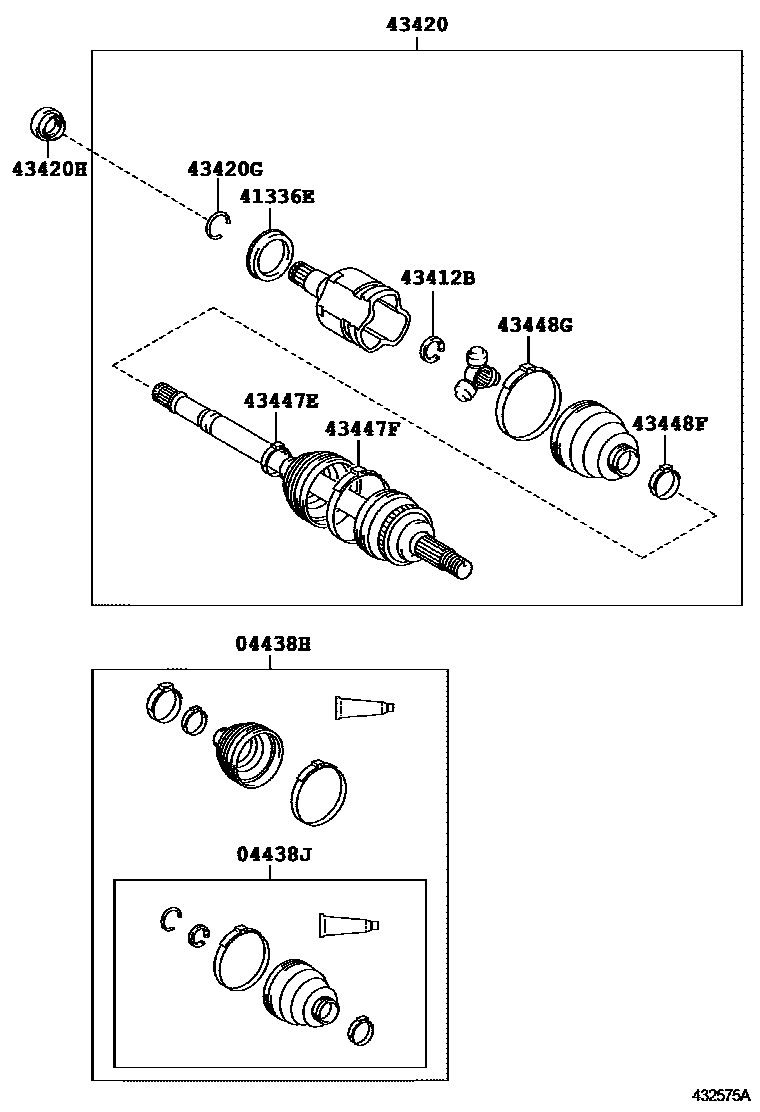

Toyota YARIS Front Drive Shaft EPC diagram — 432575A
Front Drive Shaft — 432575A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-52890
04438GRight front drive shaft inner universal joint dust boot assembly04437-52191
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-52890
04438JLeft front drive shaft inner universal joint dust boot assembly04437-52191
41336DRight front driveshaft dust cover41336-12010
41336ELeft front driveshaft dust cover41336-12010
43410Right front driveshaft assembly43410-52210
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-34031 · 90311-34039 · 90311-34045
43410NHole snap ring (for right front driveshaft)90521-26004
43411EInner shaft snap ring (for right front axle inner drive shaft)90520-22001
43412BInner shaft snap ring (for left front axle inner drive shaft)90520-22001
43420Left front drive shaft assembly43420-52210
43420GHole snap ring (for left front driveshaft)90521-26004
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-34030 · 90311-34042 · 90311-34044
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-52260
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-52250
43447EClamp (for left front axle outer universal joint dust cover)42345-52260
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-52250
43448CClamp (for the universal joint dust cover inside the right front axle)90949-01078
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)90949-01146
43448FClamp (for left front axle inner universal joint dust cover)90949-01078
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)90949-01146
43474DRight front driveshaft shock absorber43474-52030
43474FClamp (for right front driveshaft shock absorber)42345-14010
