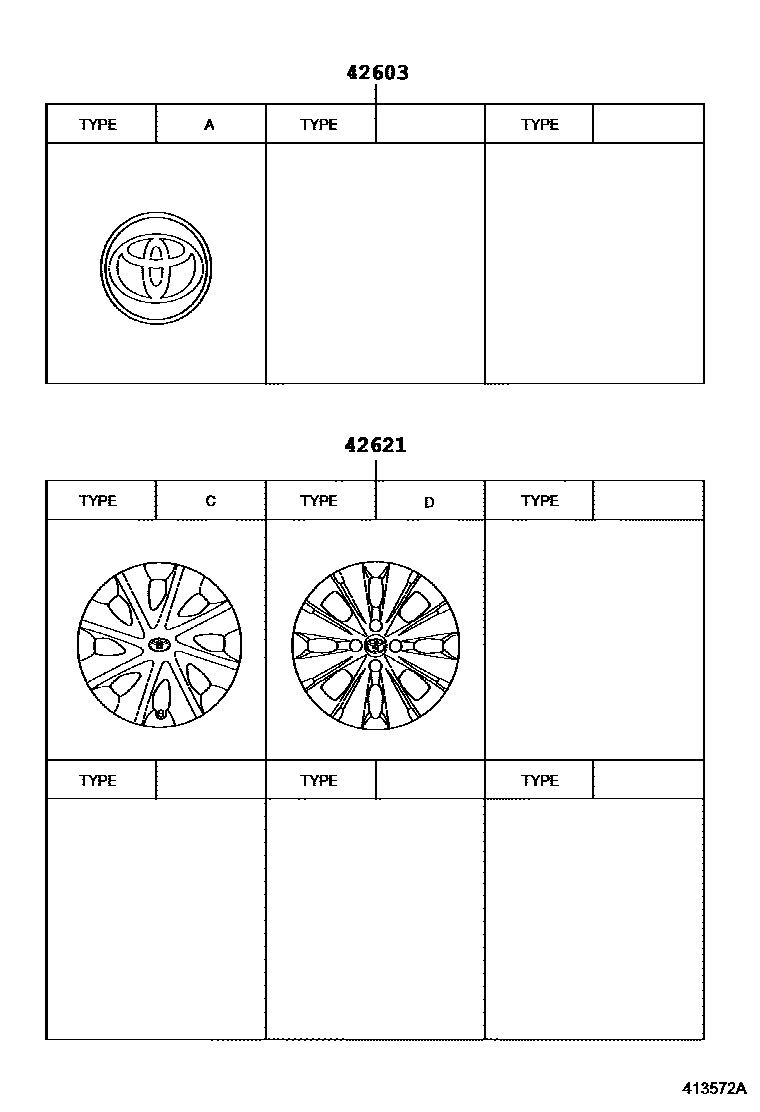

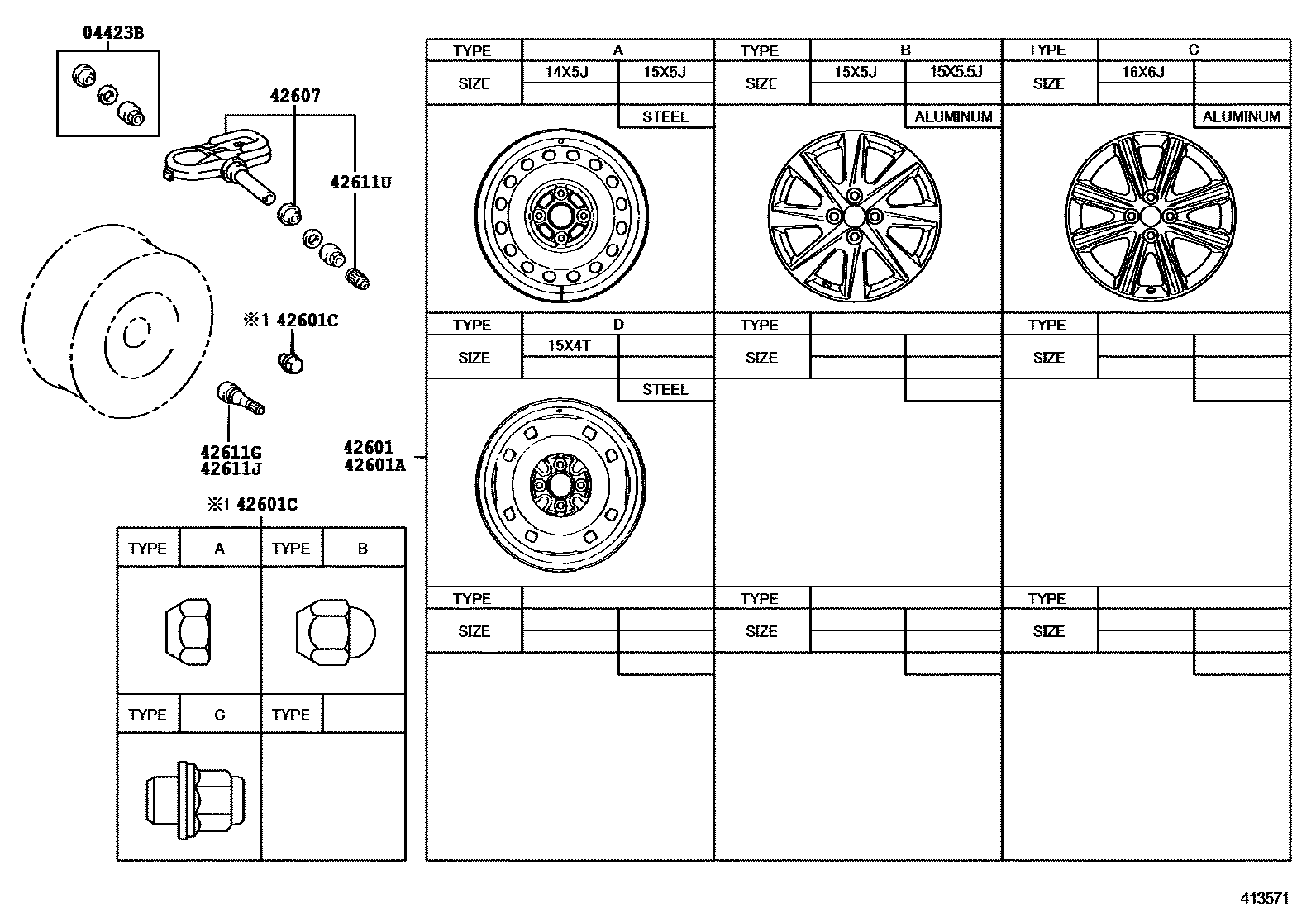

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33030 |
| 42601 | spoke wheel | 42611-52760 · 42611-52770 · 42611-52780 · 42611-52790 · 42611-52810 · 42611-52830 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A020 · 42611-52400 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-52110 · 42603-52150 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-52020 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-52450 · 42602-52451 · 42602-52520 |
