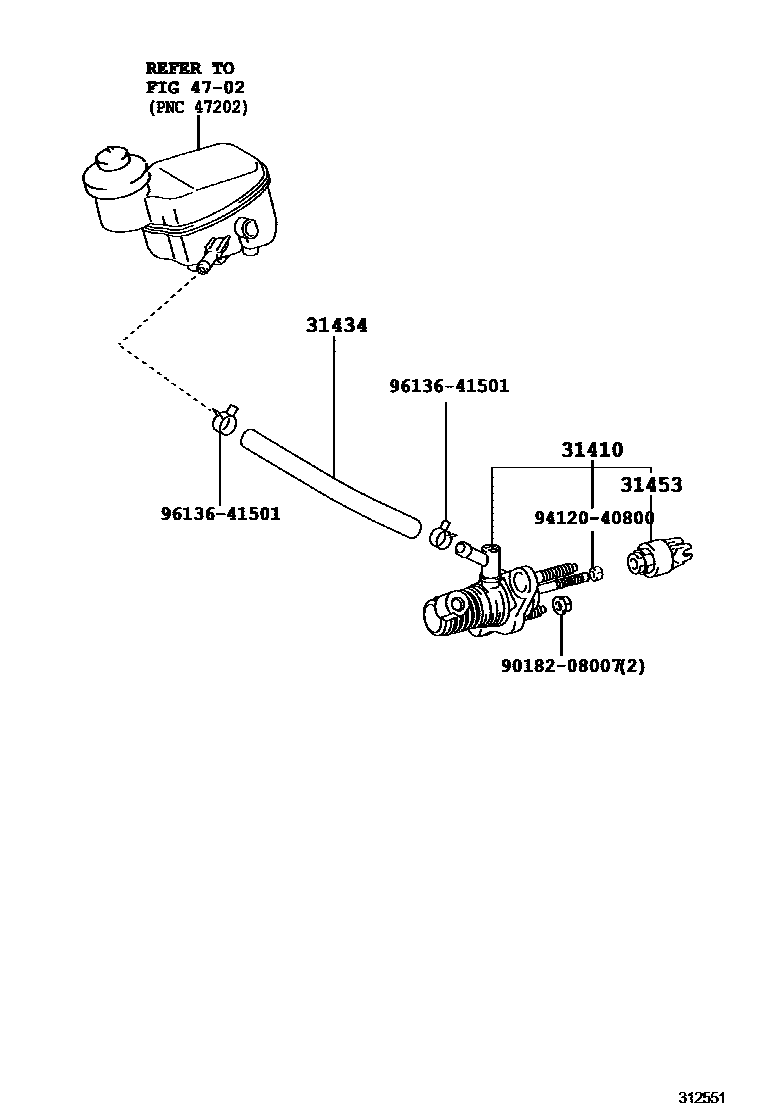

Toyota YARIS 离合器总泵 — Figure 3103
Toyota YARIS EPC diagram 3103, 离合器总泵, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-52080 |
| 31434 | Clutch reservoir connecting pipe | 31434-52230 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31453-52020 |
