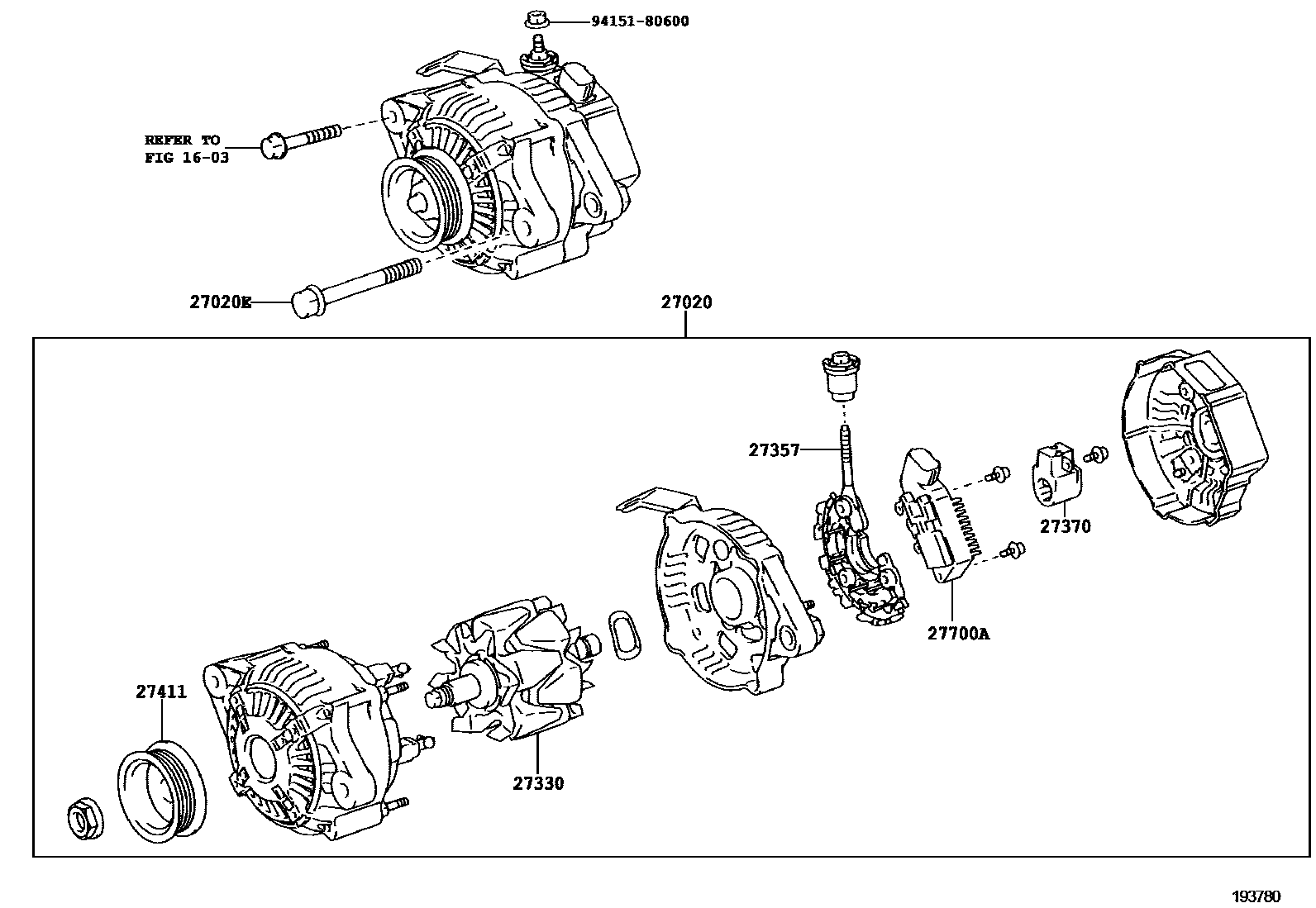

Toyota YARIS Alternator — Figure 1903
Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21151 |
| 27020E | Bolts (for generator) | 90105-10075 |
| 27330 | Alternator Rotor Assembly | 27330-30130 |
| 27357 | Generator rectifier frame | 27357-22200 |
| 27370 | Alternator Brush Holder Assembly | 27370-23120 |
| 27411 | Alternator Pulley | 27411-70140 |
| 27700A | Generator voltage regulator assembly | 27700-21050 |
