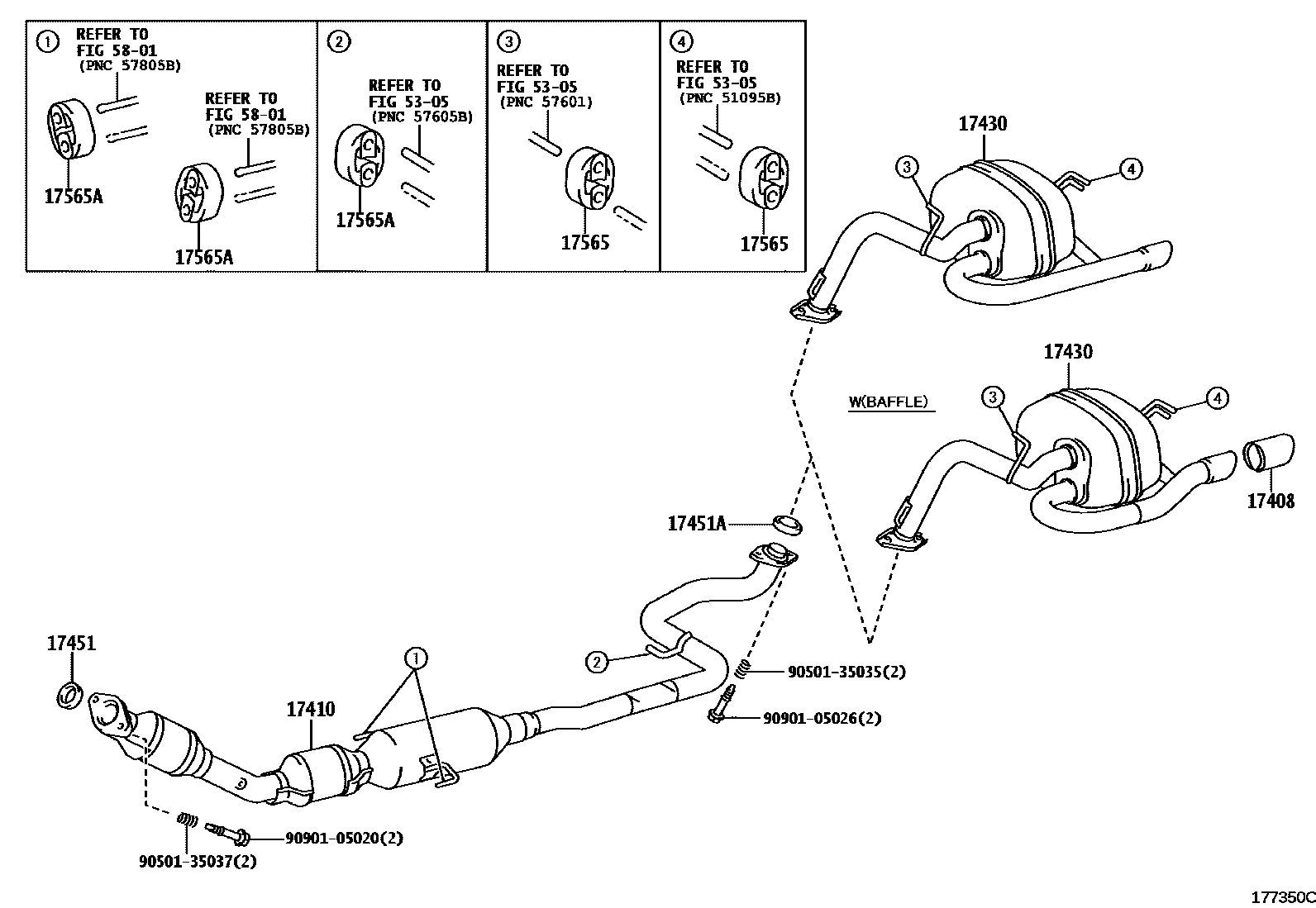

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-21030 |
| 17410 | Front exhaust pipe assembly | 17410-21B00 |
| 17430 | Exhaust tailpipe assembly | 17430-21791 · 17430-21792 · 17430-21831 |
| 17451 | Exhaust pipe gasket | 17451-21070 |
| 17451A | No. 2 exhaust pipe gasket | 17451-23042 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-47010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-47010 |
