Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.

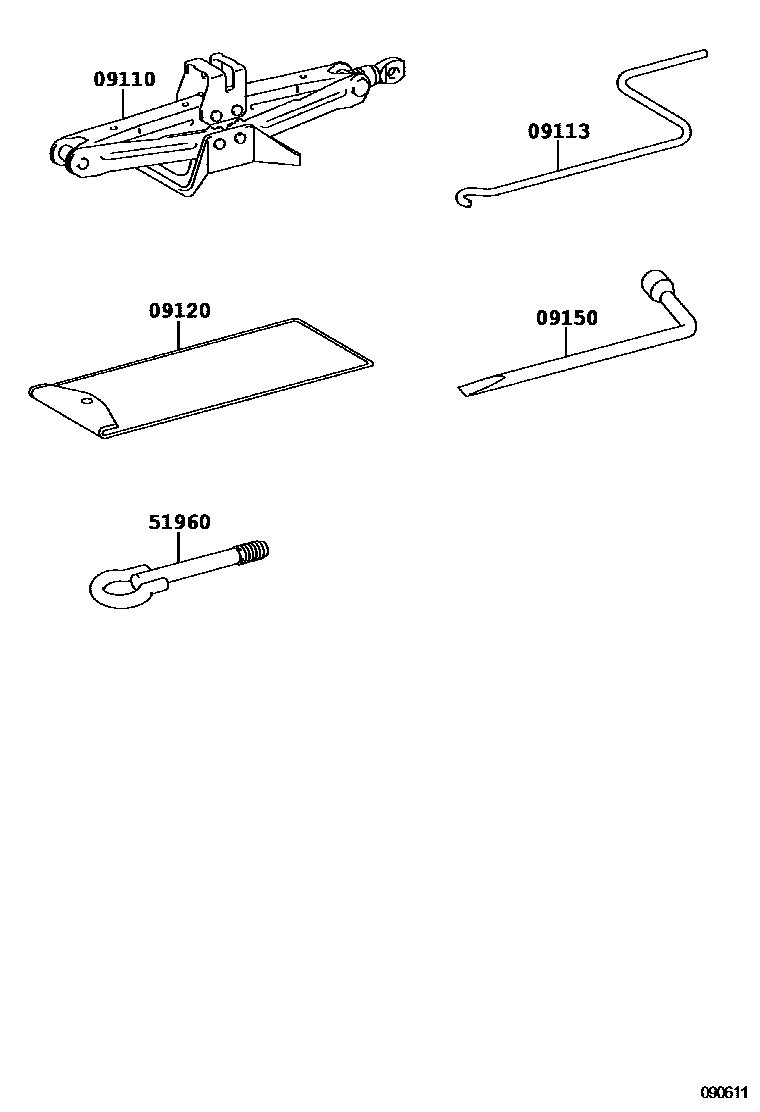

Toyota YARIS Standard Tools EPC diagram — 090611
Standard Tools — 090611 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-52060
09113Jack Handle09113-20050 · 09113-52040
09120Tool Bag09120-37030
09150Wheel Nut Wrench09150-40010
51960Front Towing Hook Assembly51960-47020
