Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

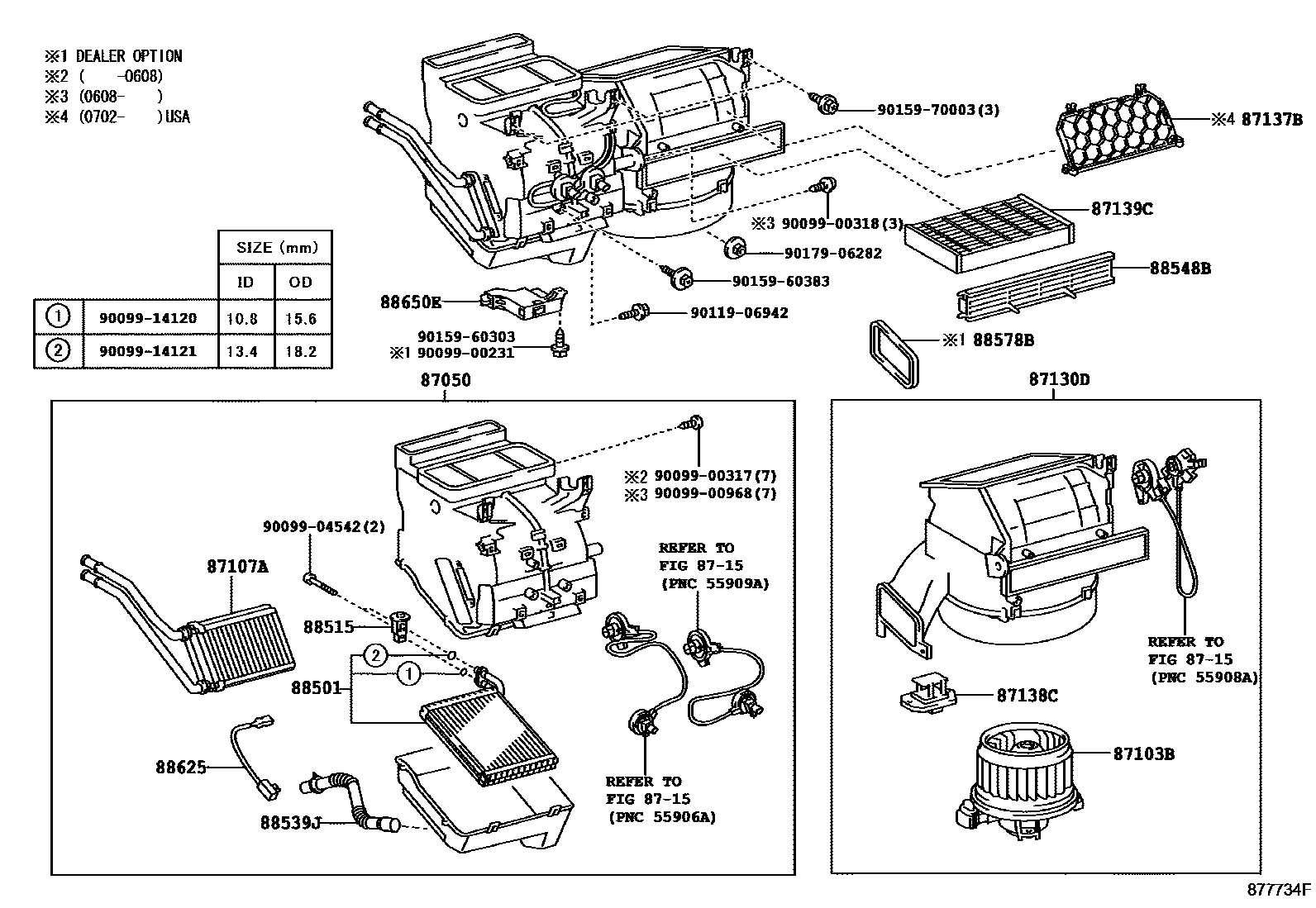

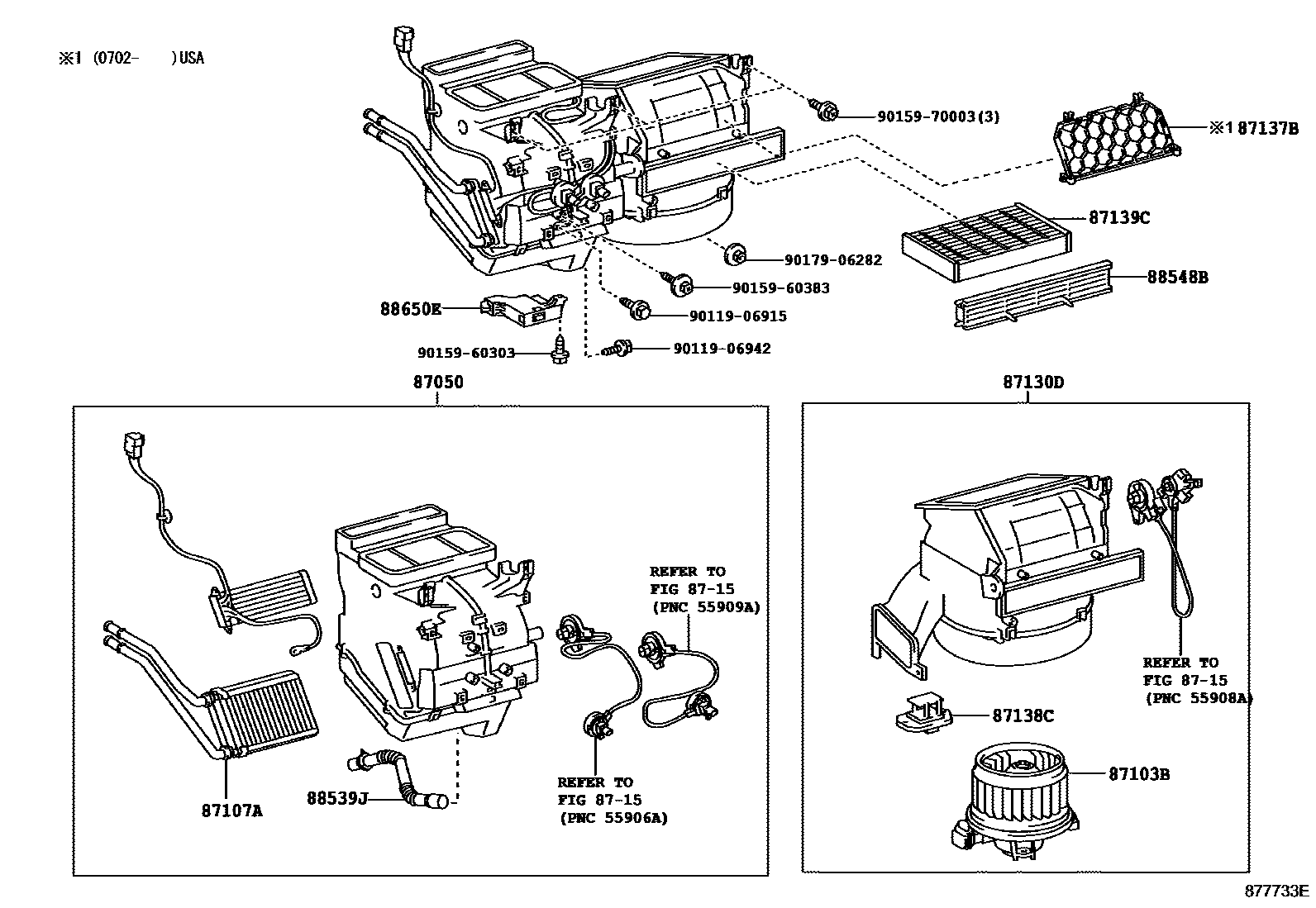

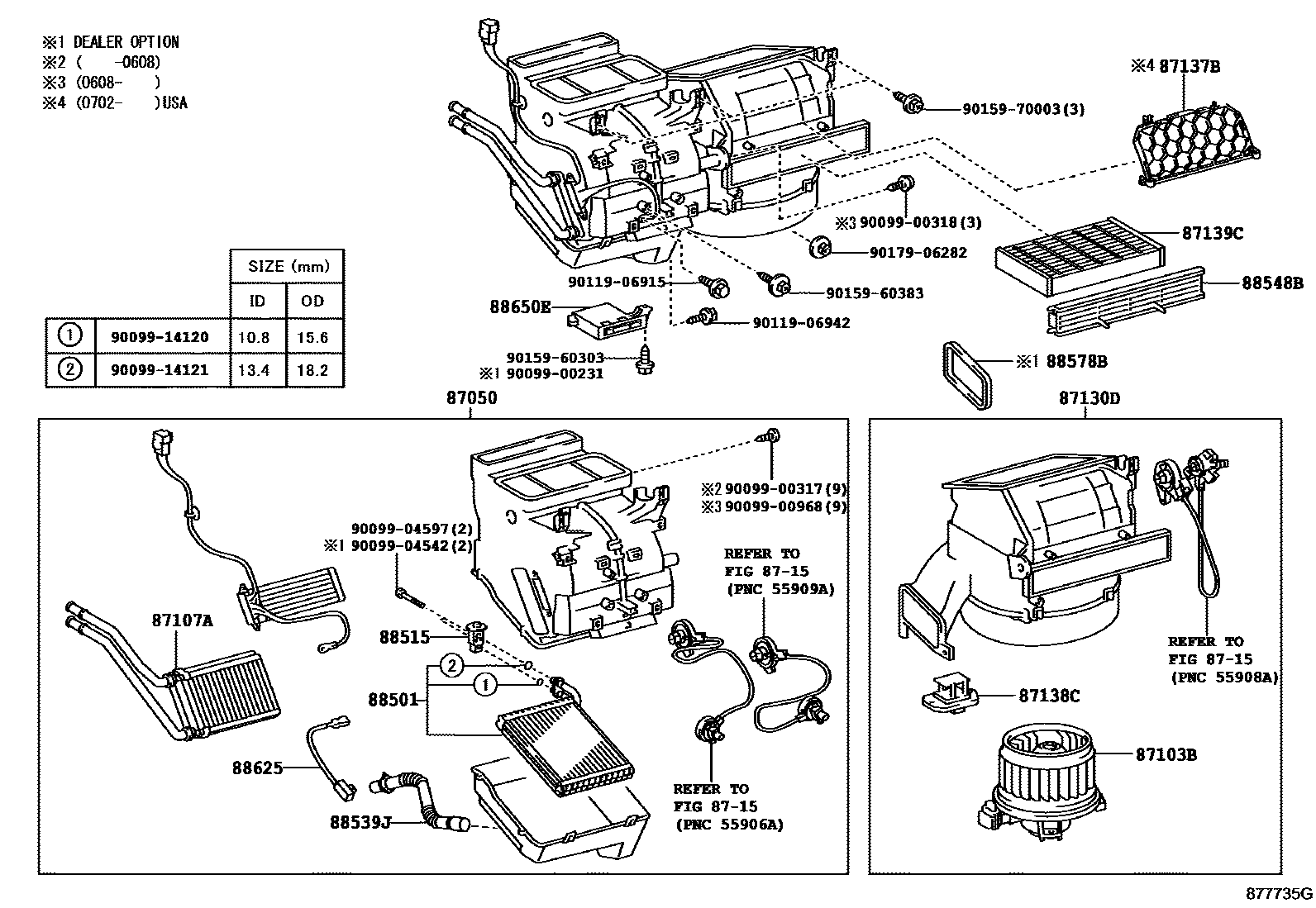

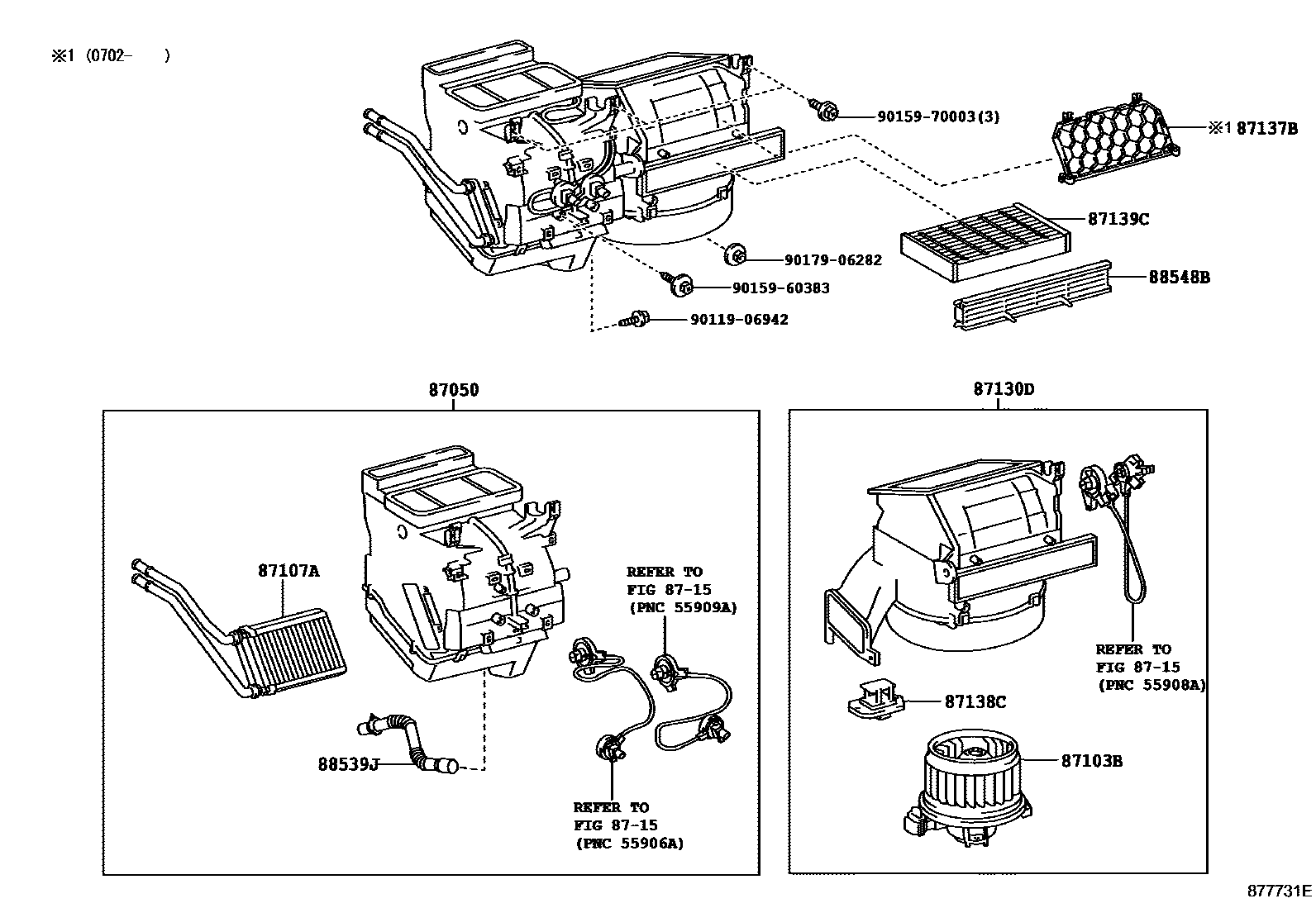

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-52061 · 87050-52062 · 87050-52063 · 87050-52082 · 87050-52083 · 87050-52101 · 87050-52102 · 87050-52112 · 87050-52113 |
| 87103B | Blower motor sub-assembly with fan | 87103-52140 · 87103-52141 |
| 87107A | Heater radiator device sub-assembly | 87107-52060 · 87107-52061 |
| 87130D | Blower assembly | 87130-52070 · 87130-52071 · 87130-52072 · 87130-52090 · 87130-52091 · 87130-52092 · 87130-52120 · 87130-52121 · 87130-52122 · 87130-52130 · 87130-52131 · 87130-52132 |
| 87137B | heater blower cover | 87137-52010 |
| 87138C | Blower resistor | 87138-52030 |
| 87139C | air purification filter | 87139-50060 · 87139-52020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-52100 · 88501-52101 · 88501-52102 |
| 88515 | Cooler expansion valve | 88515-26070 · 88515-68010 |
| 88539J | Cooler drain hose | 88539-52020 · 88539-52040 |
| 88548B | air filter housing | 88548-52040 |
| 88578B | Cooling unit seal No. 1 | 88578-52100 |
| 88625 | Cooler No. 1 Thermistor | 88625-26090 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-52291 · 88650-52361 · 88650-52401 · 88650-52630 · 88650-52640 · 88650-52650 |
