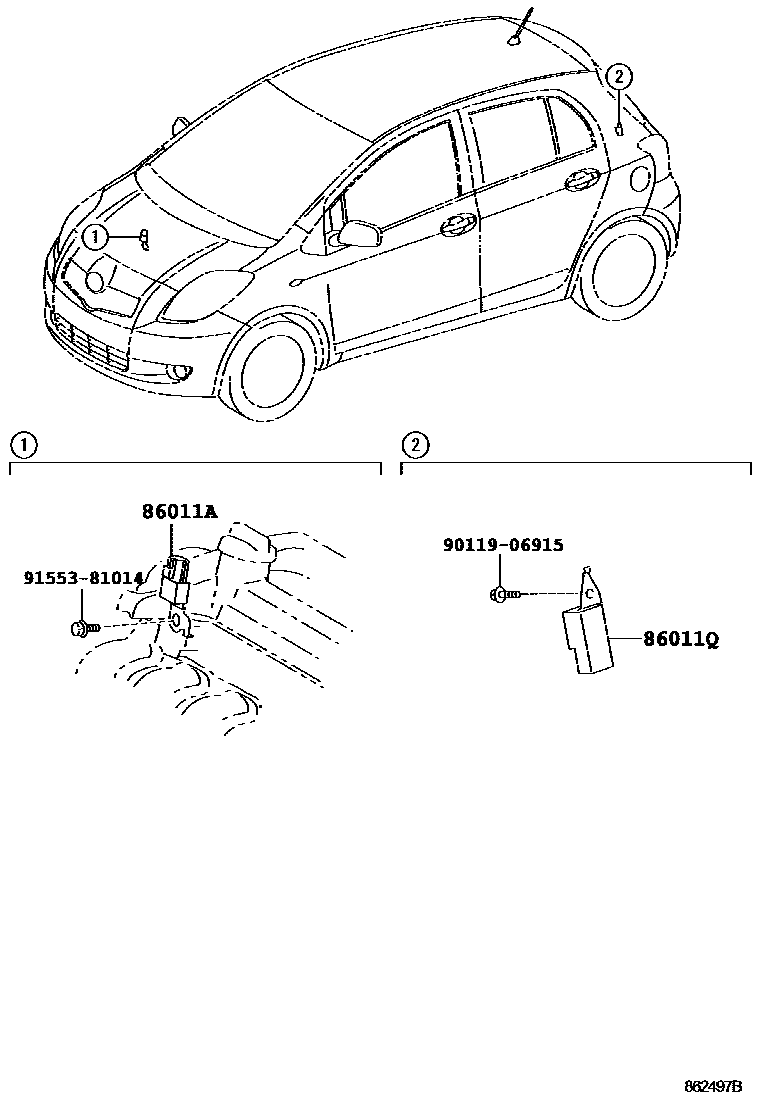

Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04141 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86120 | Radio assembly | 00000-00000 · 86120-52060 · 86120-52490 · 86120-52530 · 86120-52870 · 86120-52880 · 86120-52A20 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-52010 · 86190-52040 |
| 86211 | No. 1 radio bracket | 86211-52190 |
| 86212 | No. 2 radio bracket | 86212-52200 |
