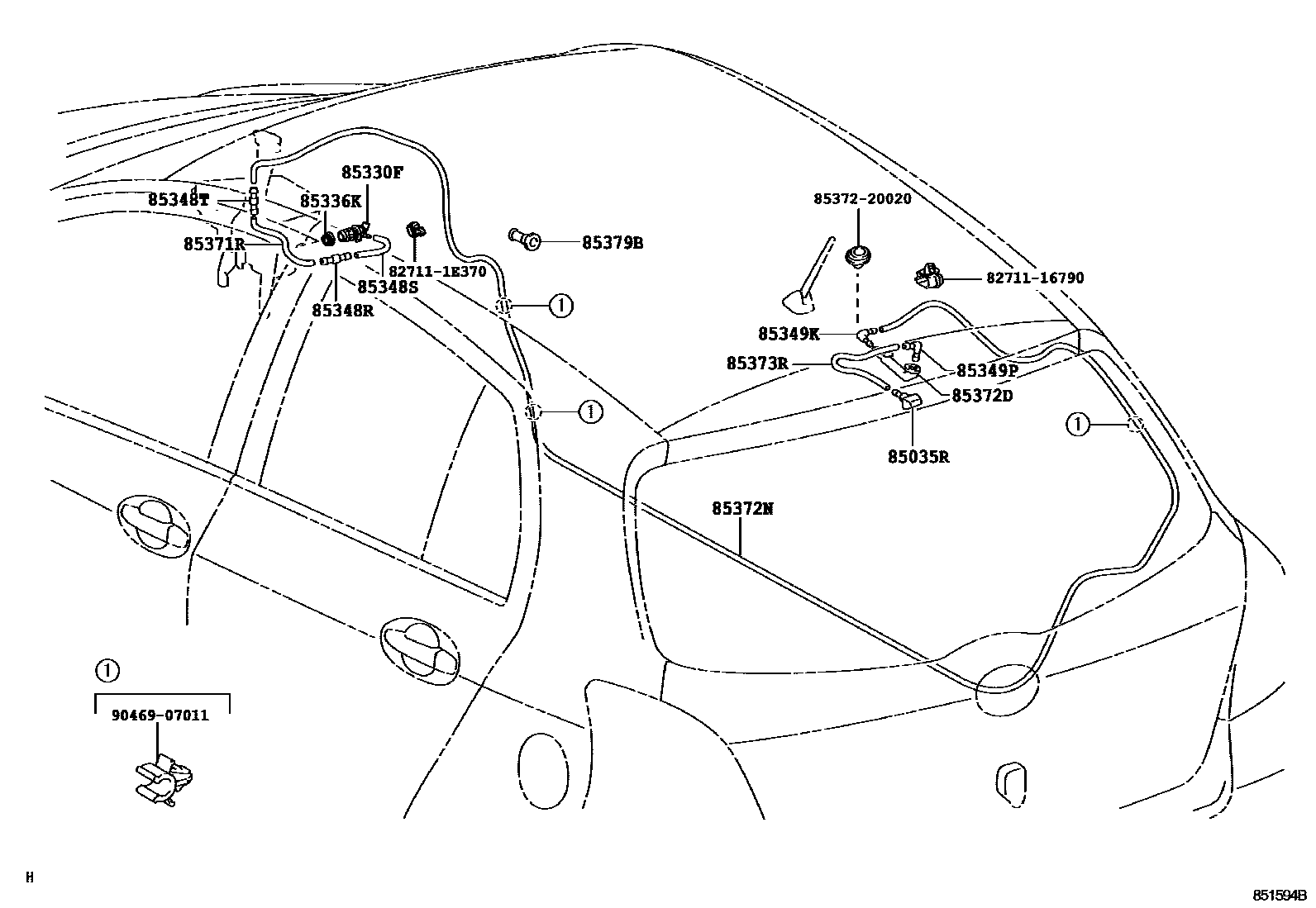

Toyota YARIS 后清洗器 — Figure 8504
Toyota YARIS EPC diagram 8504, 后清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-52010 |
| 85330F | Rear washer motor and pump assembly | 85330-60180 |
| 85336K | Cleaning fluid tank protection device | 85336-60300 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85336-12230 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85372D | Rear washer hose seal | 85372-20040 |
| 85379B | Cleaner seal A | 85379-52351 |
