Toyota YARIS 空气囊 — Figure 8421

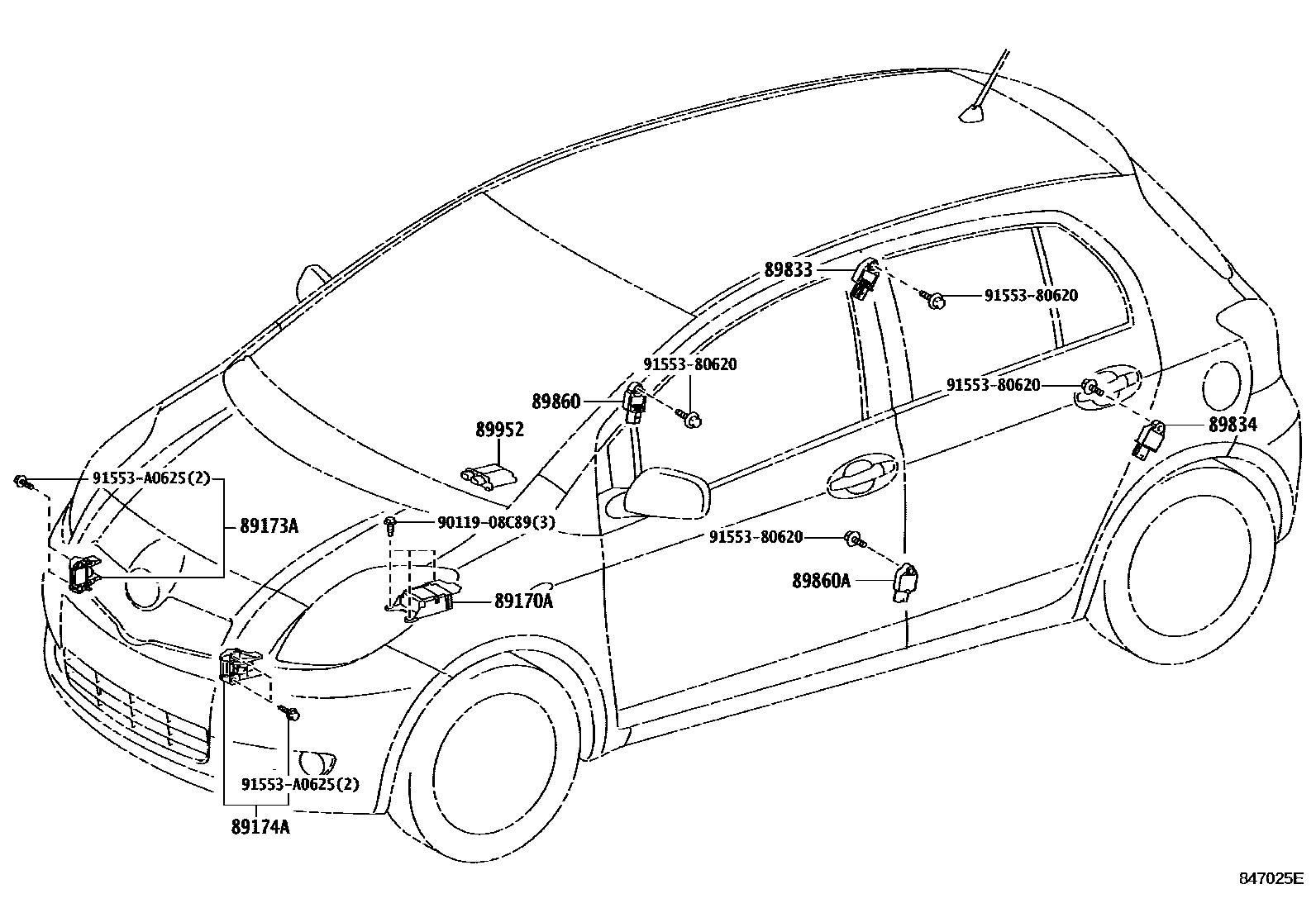

Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52630 · 89170-52640 · 89170-52690 · 89170-52B90 · 89170-52C00 · 89170-52C10 |
| 89173A | Right front air bag sensor | 89173-09270 · 89173-29245 · 89173-39375 |
| 89174A | Left front air bag sensor | 89173-09270 · 89173-29245 · 89173-39375 |
| 89833 | Right rear air bag sensor | 89831-04020 · 89831-0D010 · 89831-33020 · 89831-52010 |
| 89834 | Left rear air bag sensor | 89831-04020 · 89831-0D010 · 89831-33020 · 89831-52010 |
| 89860 | Right side airbag sensor assembly | 89831-0H010 · 89831-0W050 · 89831-22010 · 89831-28020 |
| 89860A | Left side air bag sensor assembly | 89831-0H010 · 89831-0W050 · 89831-22010 · 89831-28020 |
| 89952 | Occupant detection ECU | 89952-35011 |
