Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.

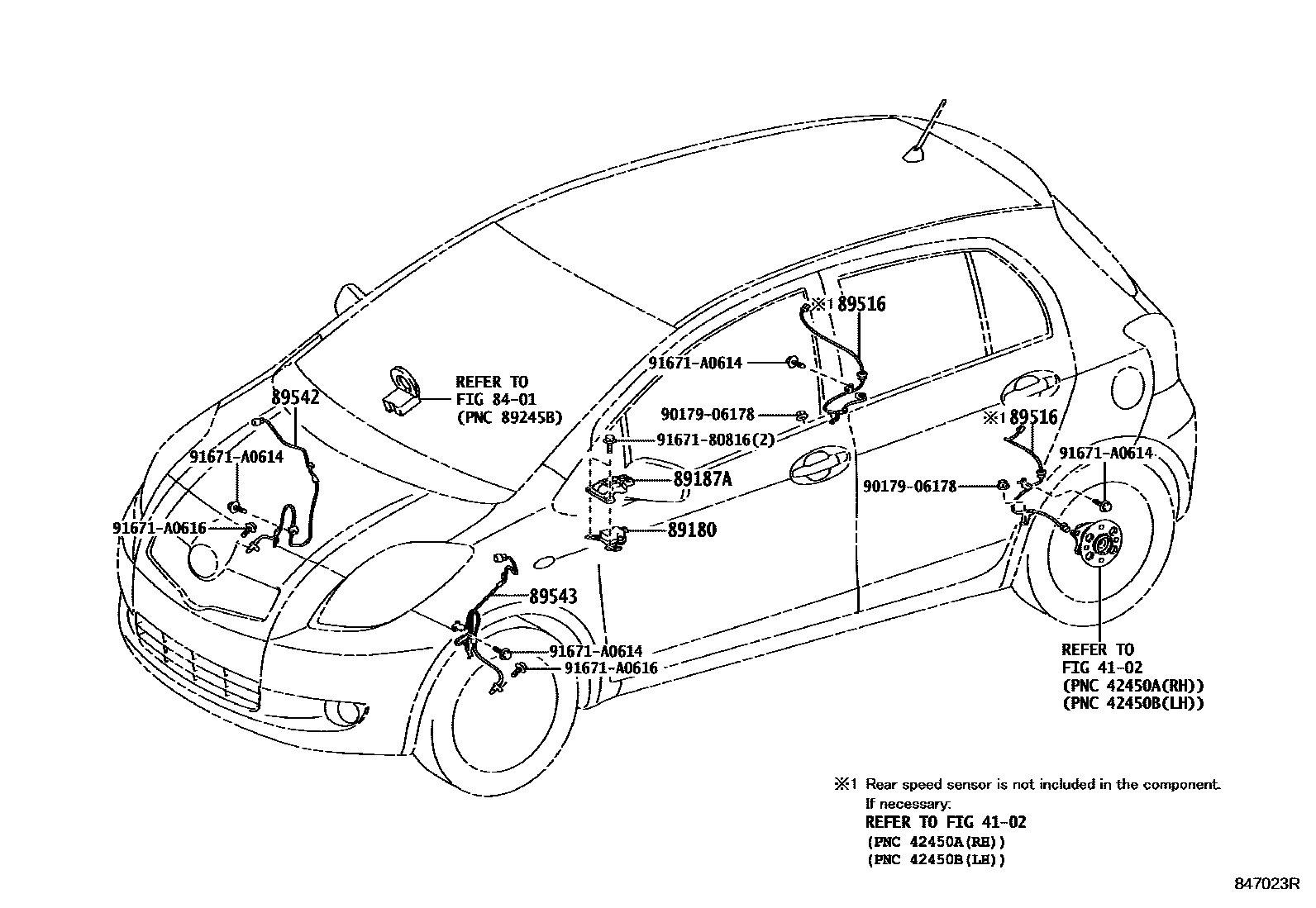

Toyota YARIS ABS 和 VSC EPC diagram — 847023R
ABS 和 VSC — 847023R (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
89180Yaw rate sensor assembly89180-52050
89187AYaw rate sensor protective cover89187-52010
89516Anti-skid control sensor wiring harness89516-52090 · 89516-52100 · 89516-52110 · 89516-52120
89542Right front wheel speed sensor89542-52030 · 89542-52060 · 89542-52090
89543Left front wheel speed sensor89543-52030 · 89543-52060 · 89543-52090
