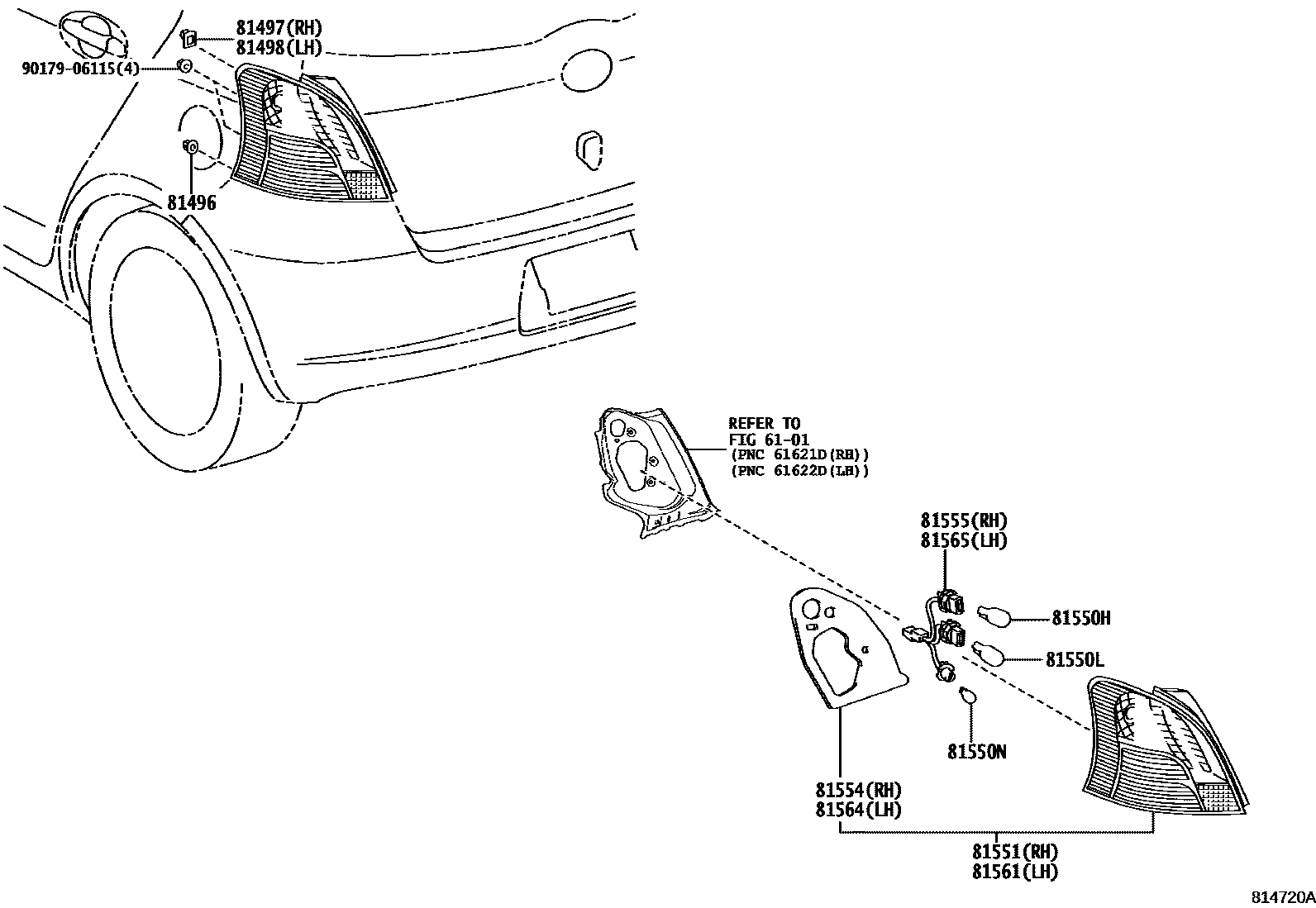

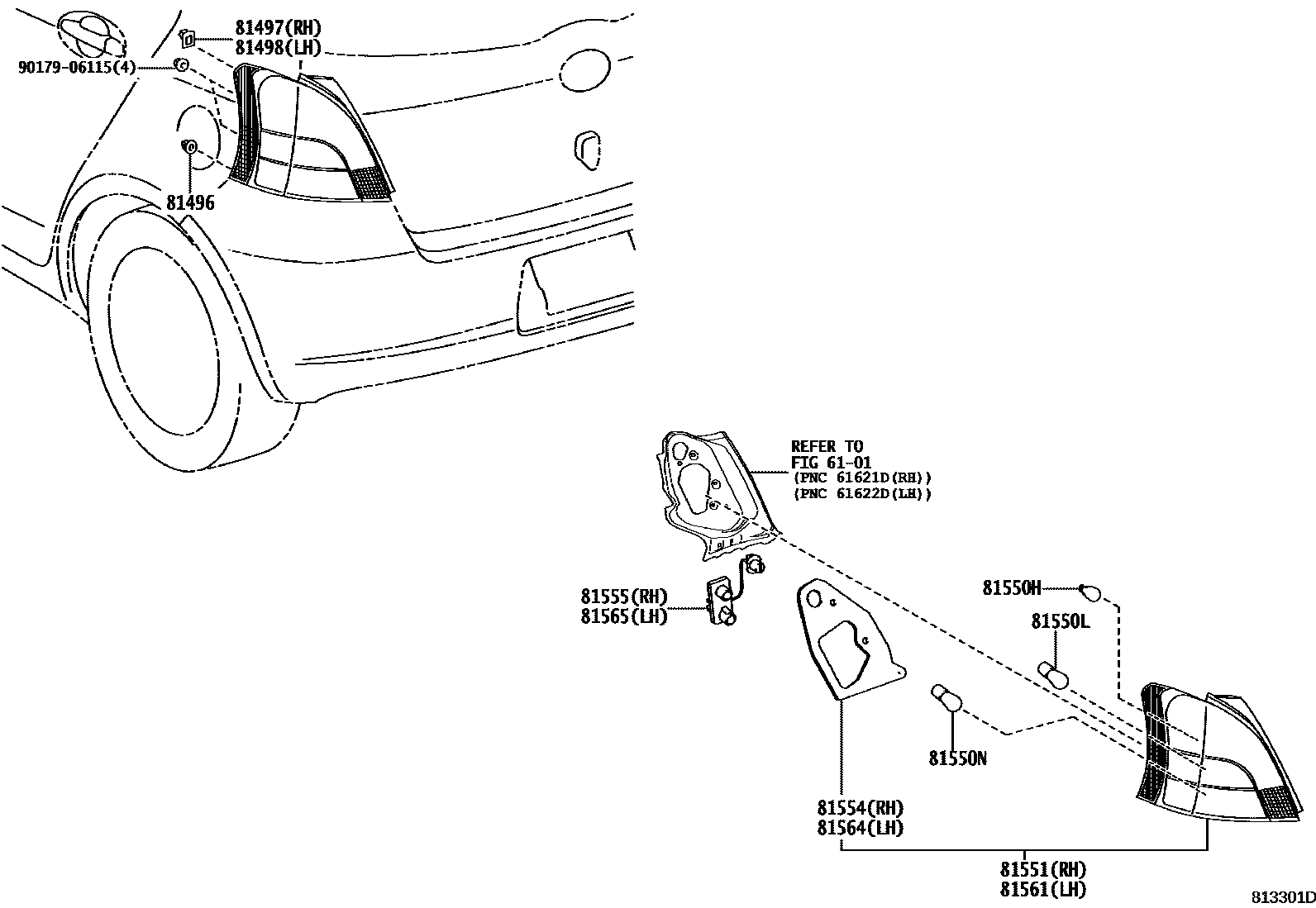

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-52020 |
| 81498 | Left rear combination lamp cover | 81497-52020 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15009 |
| 81550N | reversing light bulb | 90981-11059 · 99132-11210 |
| 81551 | Right rear combination lamp shade | 81551-52520 · 81551-52780 |
| 81554 | Right rear combination lamp body gasket | 81554-52530 · 81554-52710 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52520 · 81555-52780 |
| 81561 | Left rear combination lamp shade | 81561-52460 · 81561-52700 |
| 81564 | Left rear combination lamp body gasket | 81564-52470 · 81564-52630 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52780 · 81565-52460 |
